AIL150 Insulation Fault Locator

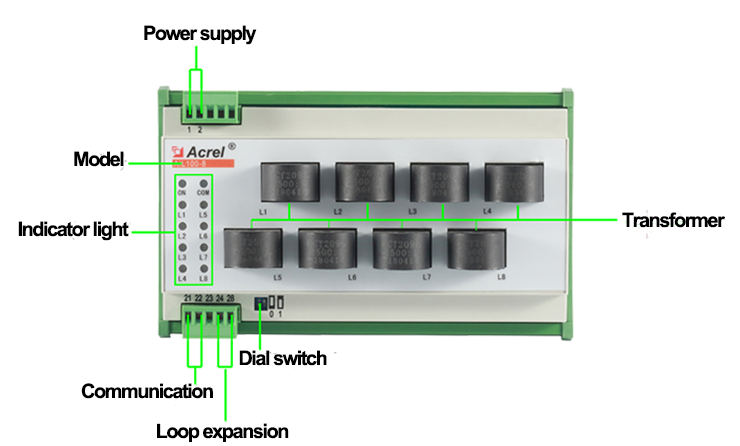

AIL150



● Insulation fault location in AC IT systems

● AIL150-4: 4 measuring channels

● AIL150-8: 8 measuring channels

● LED indicators: On, Comm

● CAN bus

● Auxiliary power supply: DC24V




Description

General

AIL150 Insulation Fault Locator in conjunction with AIM-M200 insulation monitor and ASG150 signal generator are designed for insulation fault location in medical IT systems. AIL150-4 insulation fault locator can locate insulation faults of four loops, AIL150-8 insulation fault locator can locate eight loops.

Parameter

Auxiliary powerVoltageDC24V
Power consumption2VA
Monitored system
Rated voltage0-242V AC
Frequency45-60HZ
Location signals
Location voltage
＜25V
Location current
＜1mA
Fault location
Maximum channels4/8
Response time＜2s
Communication
BusCAN
ProtocolCustom protocol

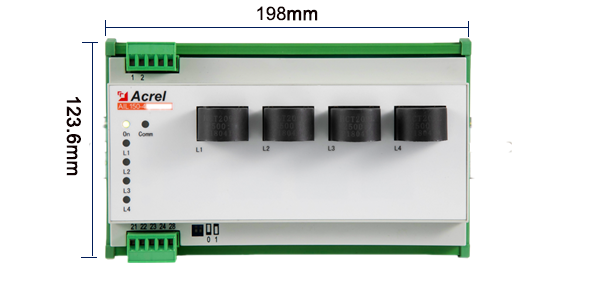

Dimension(Unit:mm)


Wiring


Typical Connection

Application

Package

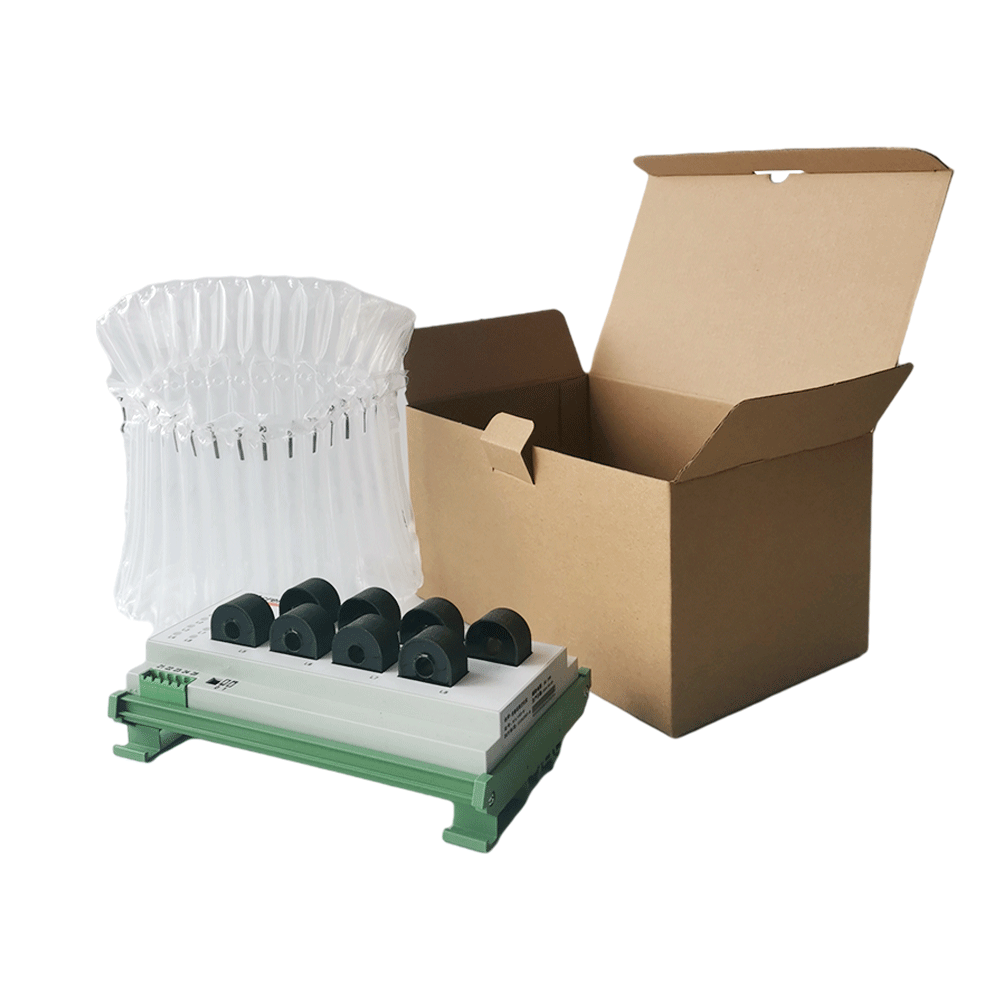

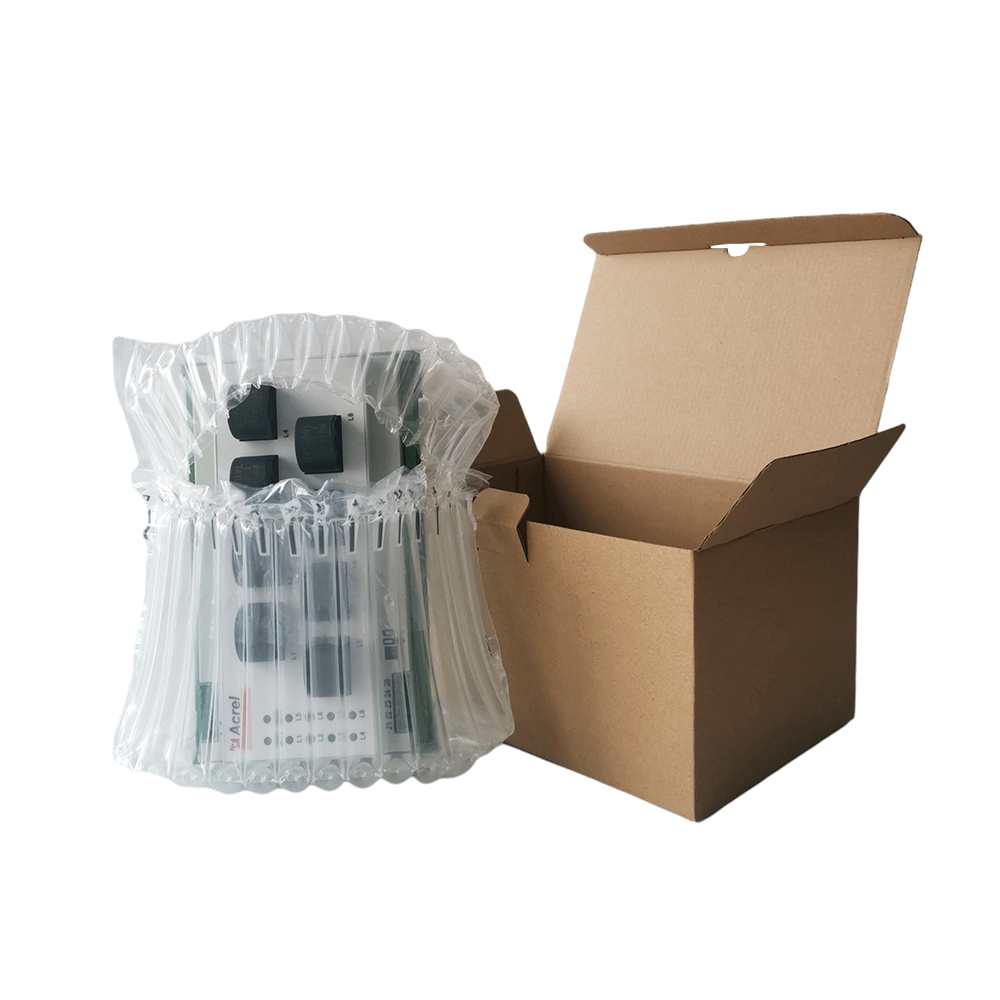

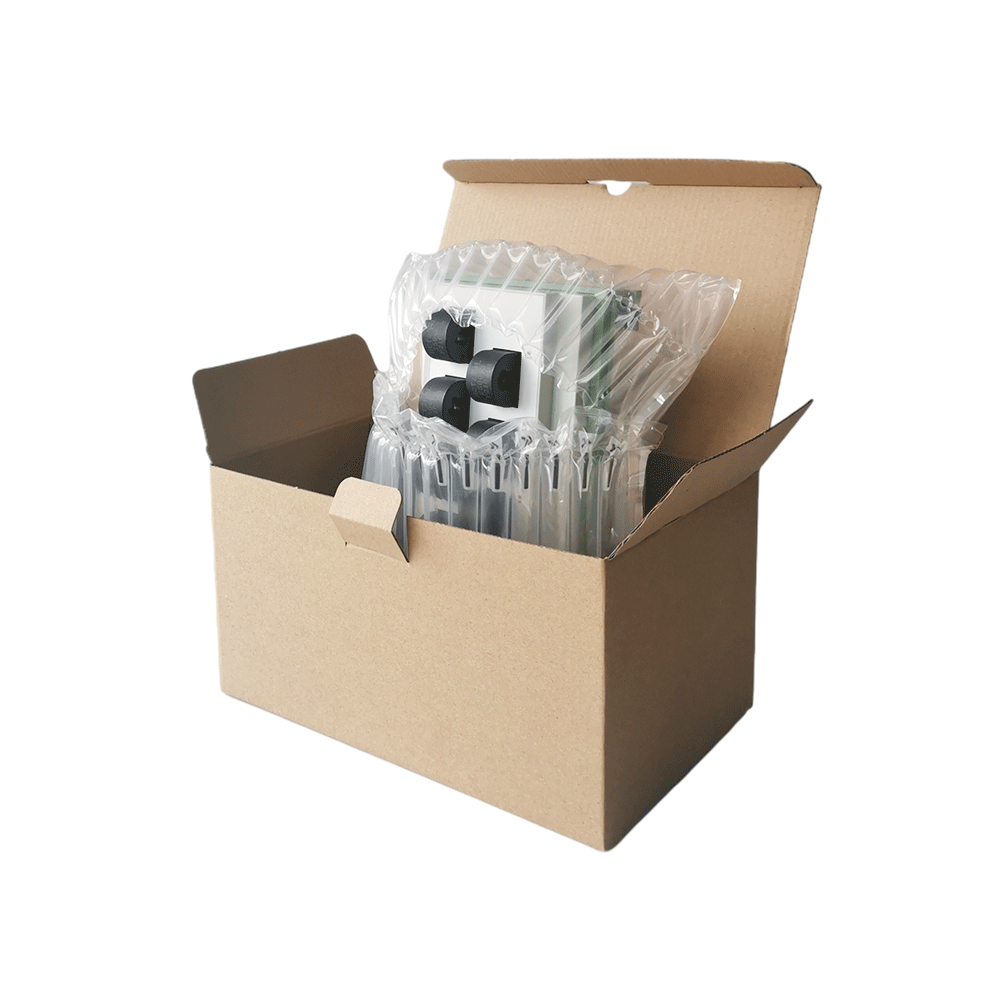

MINIMUM PACKAGE






MINIMUM PACKAGE

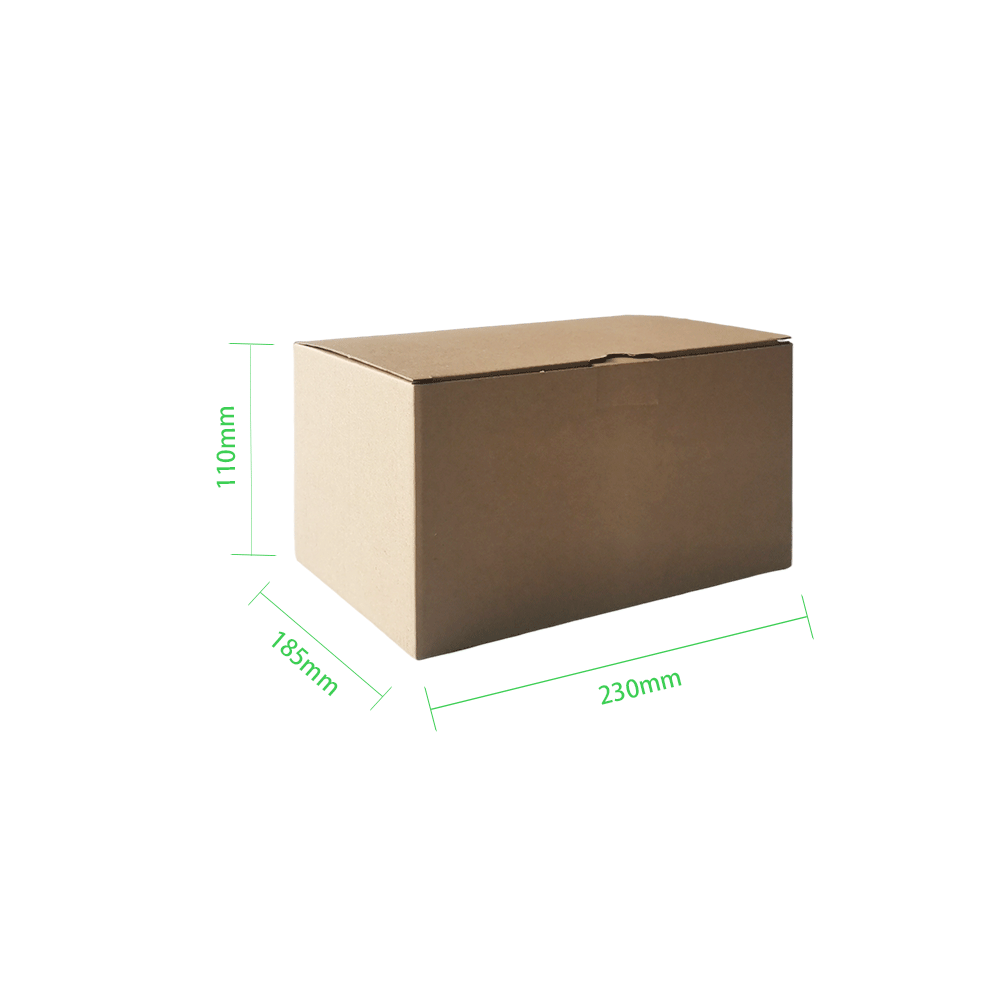

Package dimensions(1 PC)

230*185*110mm

Pakage Weight(1 PC)

0.46Kg

WHOLE BOX PACKAGE

Package dimensions(24 PC)

615*480*395mm


Pakage Weight(24PC)

11.04Kg



PRODUCT HS CODE


9028301300

ATTENTION !

The above packing and weight data are only refer to model AIL150.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
