AIM-M10 Medical Insulation Device

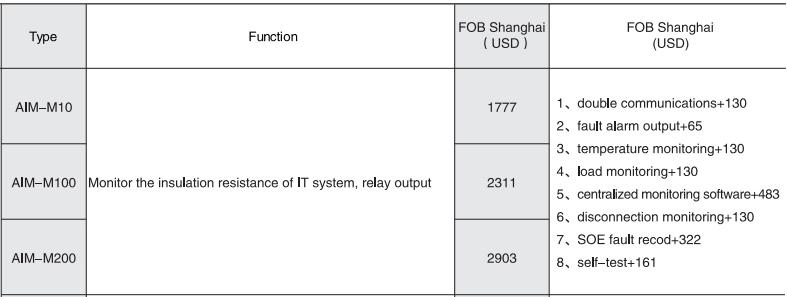

AIM-M10



● Insulation monitoring for medical IT systems

● Load and temperature monitoring of isolation transformer

● Device disconnection monitoring


Description

General


AIM-M10 medical insulation device instrument adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit. AIM-M10 is usually combined with AITR series medical isolation transformer, AKH-0.66P26 current transformer and AID10/150 centralized alarm display device.



Parameter

AUX Power

Voltage

AC220V±10%

Temperature monitoring

Thermal resistor

2 Pt100

Power consumption

≤5VA

Measuring range

-50~+200℃

Insulation Monitoring

Resistance measuring range

10~999kΩ

Alarm value range

0~+200℃

Response value

50~999kΩ

Alarm

output

Output mode

1 Relays

Relative uncertainty

±10%

Contact rating

AC 250V/3A

DC 30V/3A

Response time

≤3s

Environment

Operating temperature

-10~+55℃

Permissible system leakage capacitance Ce

≤5uF

Transport temperature

-25~+70℃

Measuring voltage Um

≤12V

Storage temperature

-25~+70℃

Measuring current Im

≤50uA

Relative humidity

5%-95%, No condensation

Impedance Zi

≥200kΩ

Altitude

≤2500m

Internal DC resistance Ri

≥240kΩ

IP degree

IP30

Permissible extraneous DC voltage Ufg

≤DC280V

Rated impulse voltage / pollution degree

4KV/Ⅲ

Load Current Monitoring

Measuring Value

2.1~50A

EMC

IEC 61326-2-4

Alarm Value

5~50A

Communication

RS485(Modbus-RTU)

Measuring accuracy

±5%

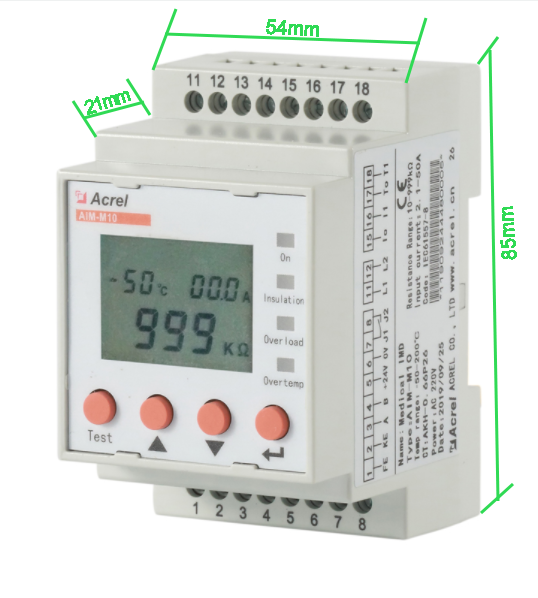

Dimension

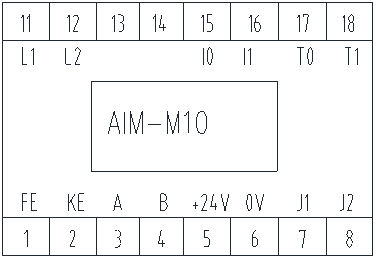

Wiring




1,2(FE,KE):  Functional earthing

3,4(A,B):   RS485 communication port

5,6(+24V,0V):  DC power supply output

7,8(J1,J2):  Relay output

11,12(L1,L2):  IT system connector

15,16(I0,I1):  Load current connector

17,18(T0,T1):  Temperature sensor connector

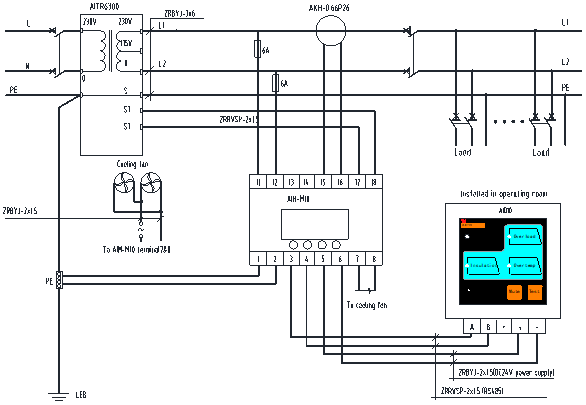

Network







Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.169Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Pakage Weight(36 PCS)

6.084kG


PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model AIM-M10.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
