General
AID Series alarm and display devices are remote display and audible and visible alarm devices. AID duplicates fault, alarm and operating message of monitoring devices. When fault occurs, AID gives audible and visible signal to medical staff and technical staff. Additionally, response value of AIM-M series monitoring device can be set by AID remotely. AID Series alarm and display device have three types: AID10, AID120 and AID150, which shall be arranged in operating room or nursing station so that it can be permanently monitored by medical staff.
Parameter
Auxiliary Power | Voltage
| DC24V
|
Consumption
| ＜0.6W
|
Load Current Alarm Value Settings
| 14A,18A, 22A, 28A, 35A, 45A
|
Temperature Alarm Value Range
| 0-200℃
|
Alarm
| Sound and light alarm
|
Alarm Type
| Insulation fault, overload, over-temperature, equipment failure
|
Communication
| RS485 interface, Modbus-RTU protocol
|
Display
| LCD Display
|
Dimension

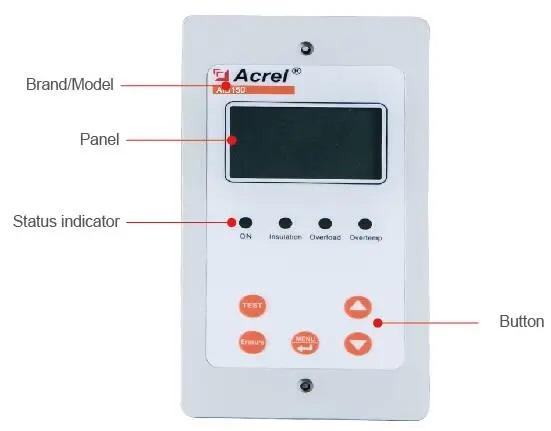

Front Panel

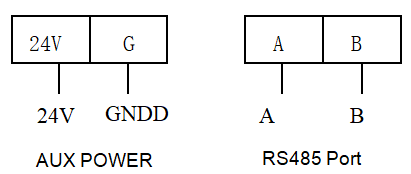

Wiring

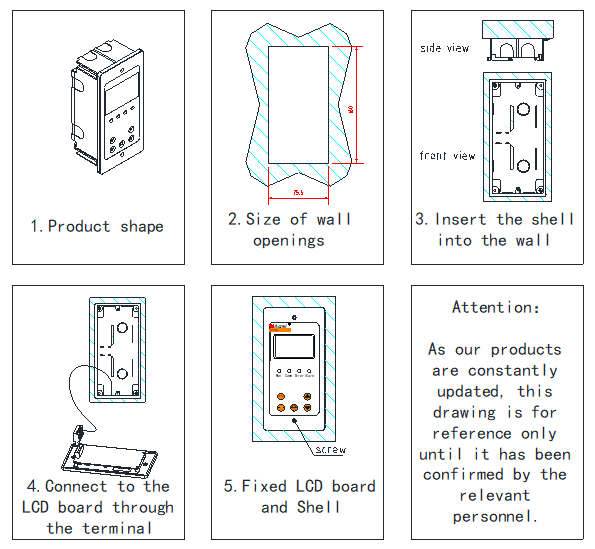

Installation
Typical Connection
Package
MINIMUM PACKAGE
|
|  |
|  |
MINIMUM PACKAGE
| Package dimensions(1 PC) 220*185*110mm
| Pakage Weight(1 PC) 0.23Kg
|
WHOLE BOX PACKAGE
| Package dimensions(36 PCS) 620*480*400mm
| Pakage Weight(36 PCS) 8.28kG
|
PRODUCT HS CODE
| 8543709990
|
ATTENTION ! The above packing and weight data are only refer to model AID150. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
