General
ASG150 Signal Generator device test signal generator is designed with a 32-bit microprocessor chip and a high-precision signal generation circuit, It can generate a specific test signal.When IT system insulation fault occurs , it start to generate a test signal , and work with insulation fault locator to achieve insulation fault location.
Parameter
| Auxiliary power | Voltage | DC24V |
| Power consumption | 2VA |
Monitored system
| Rated voltage | 0-242V AC |
| Frequency | 45-60HZ |
Location signals
| Location voltage
| ＜25V
|
Location current
| ＜1mA
|
Fault location
| Maximum channels | 4 |
| Response time | ＜2s
|
Communication
| Bus | CAN |
| Protocol | Custom protocol |

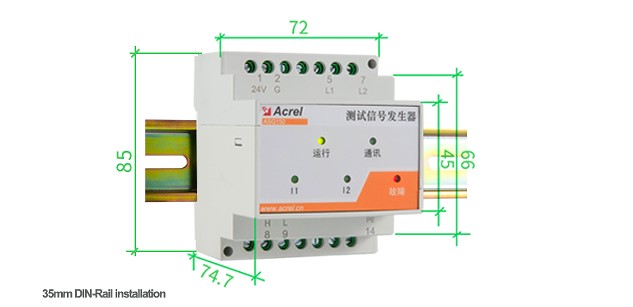

Dimension
Wiring

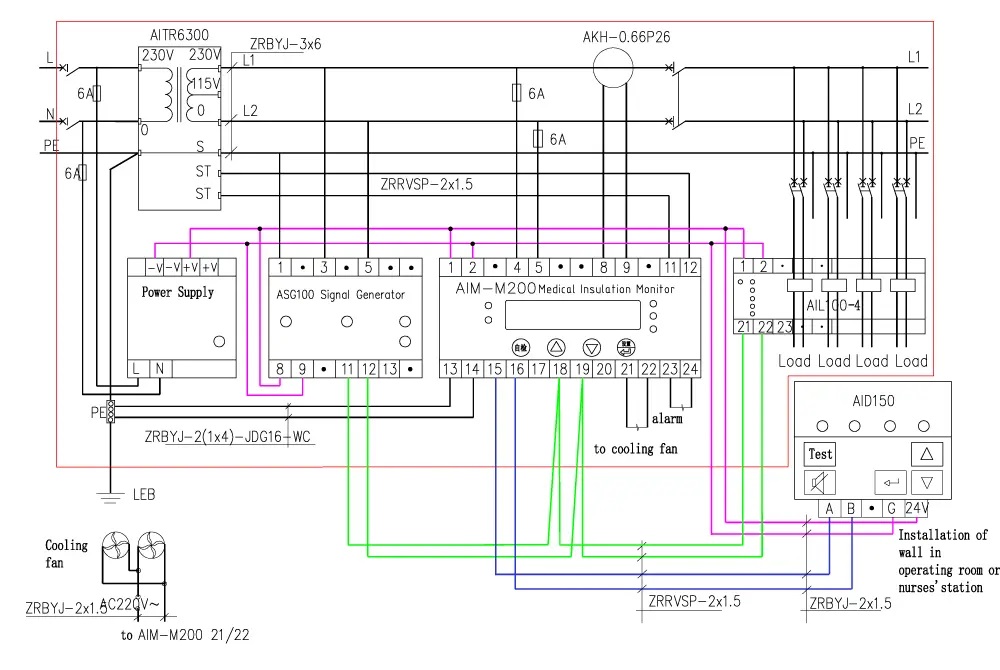

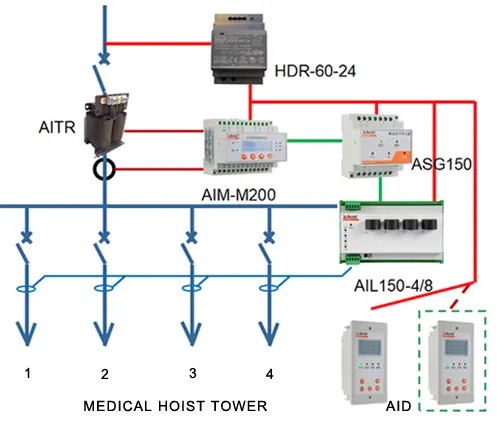

Typical Connection
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 170*150*130mm
| Pakage Weight(1 PC) 0.19Kg
|
| WHOLE BOX PACKAGE | Package dimensions(36 PC) 535*525*475mm
| Pakage Weight(36 PC) 6.84Kg
|
PRODUCT HS CODE
| 9028309000
|
