GGF Medical IT Isolated Power System

GGF




● Suitable for distribution system in group 2 medical location

● Using Q235A High Quality Cold Rolled Steel Plate

● Louver type heat dissipation fan

● Various installation types

● IP31



Description

General

Medical isolation power distribution cabinet is designed for medical group 2 power supply requirements .Insulation monitoring device installed in IT system. Each output circuit has a circuit breaker with short circuit protection function; the output circuit in TN-S system has a circuit breaker with leakage protection, Products are divided into GGF-O series three-phase isolated power cabinet,GGF-I series single-phase isolated power supply cabinet, according to the number of input voltage phases. the products meet IEC60364-7-710:2016 Electrical installations of buildings—Part 7-710：Requirements for special installations or locations—Medical locations and IEC 61439-2:2011 Low-voltage switchgear and control gear assemblies—Part2：Power switchgear and control gear assemblies.


Parameter

Technical parametersGGF-IXGGGF-IXQGGF-OXFGGF-OXGGGF-OXQGGF-OXF
Rated voltage220V AC
380V/220V AC
Rated Capacity3.15/5/6.3/10KVA---3.15/5/6.3/10KVA---
Rated frequency50/60HZ
Distribution circuitIT System:4 or 5 AC220V(can be customized)IT System:8 AC220V(can be customized)
----TN-S Systems:
Protection levelIP31IP34DIP31IP34D
Installationfloor-standingEmbeddedfloor-standingEmbedded
Inlet and outletBottomBoth bottom and top have access lines
Bottom Inlet and bottom outletBoth bottom and top have access lines

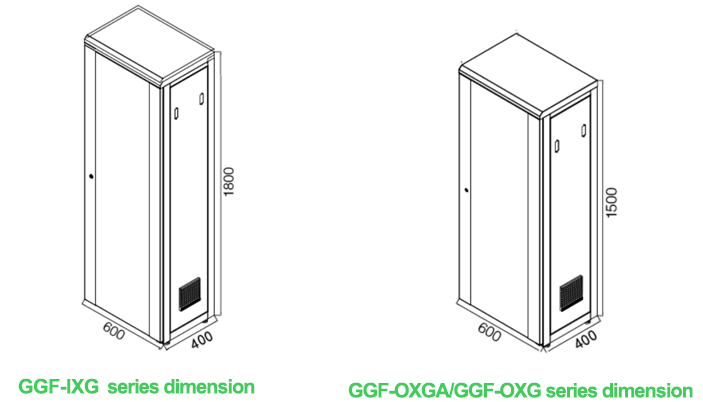

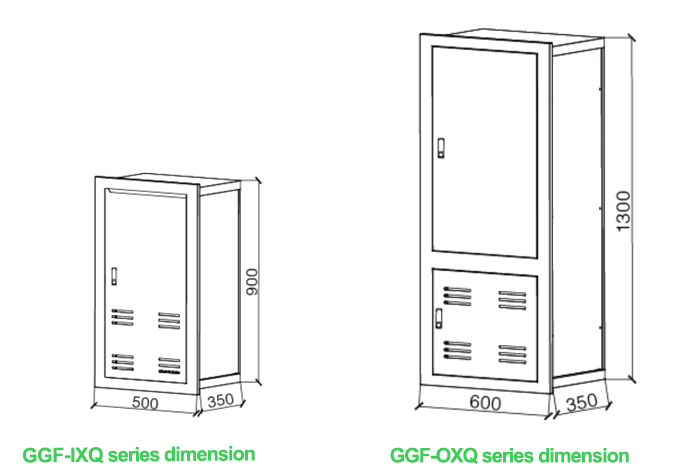

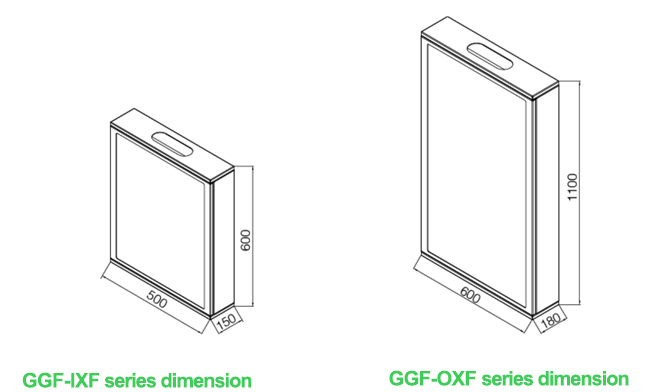

Dimension(Unit:mm)

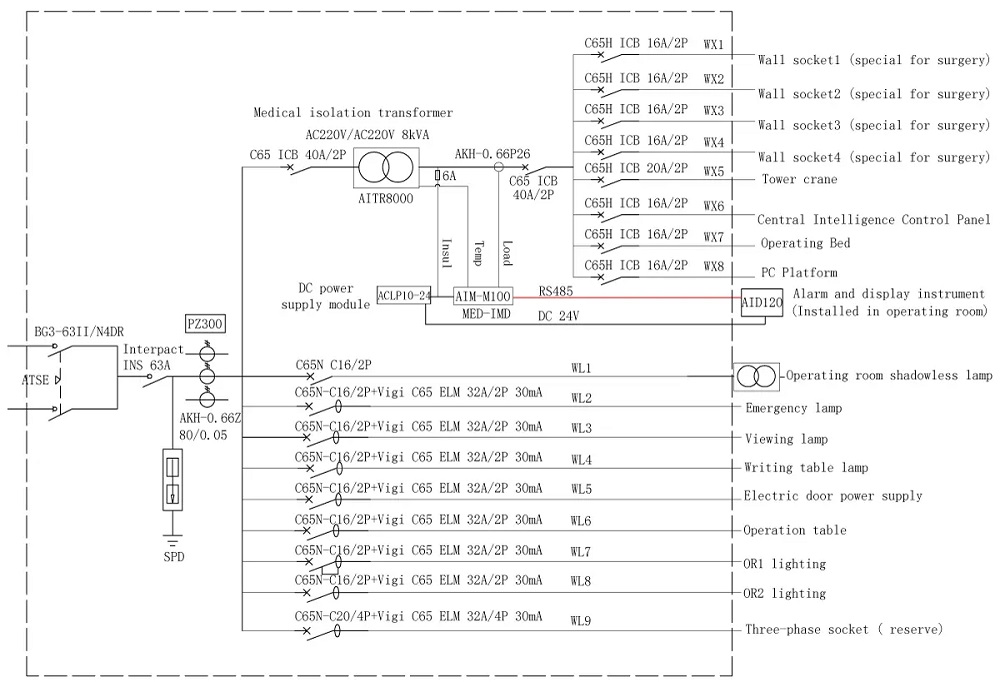

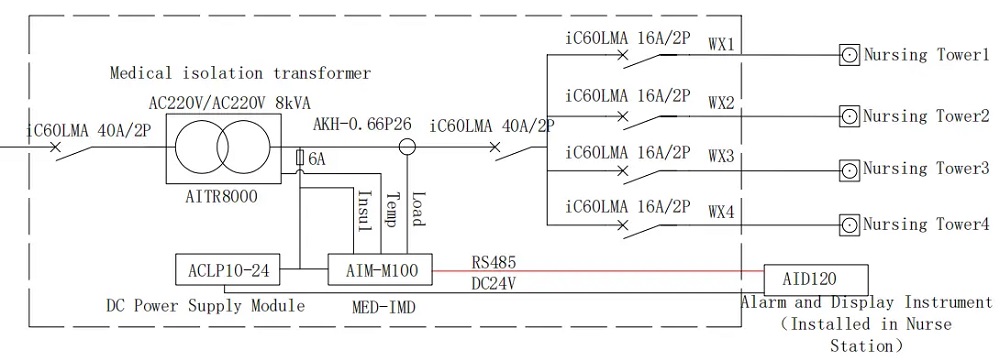

Diagram

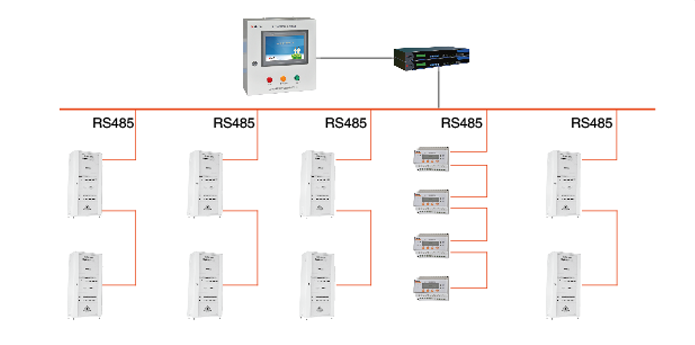

Typical Connection
