Wireless Temperature Monitoring System

Acrel 2000T


● Wireless temperature measurement;

● 11KV and 33KV Busbar;

● Breaker Terminals;

● Transformer Terminals;

● HT Motor Terminals;



Description

Application


Online wireless temperature monitoring devices are suitable for temperature monitoring of cable joint, circuit breaker contacts,  bus bars and other big current parts in medium and low voltage switchgear.

State Grid

Data Center

Industrial and Mining Enterprise

Metallurgical Industry

Petroleum

Municipal Engineering

Chemical Industry

Trafic

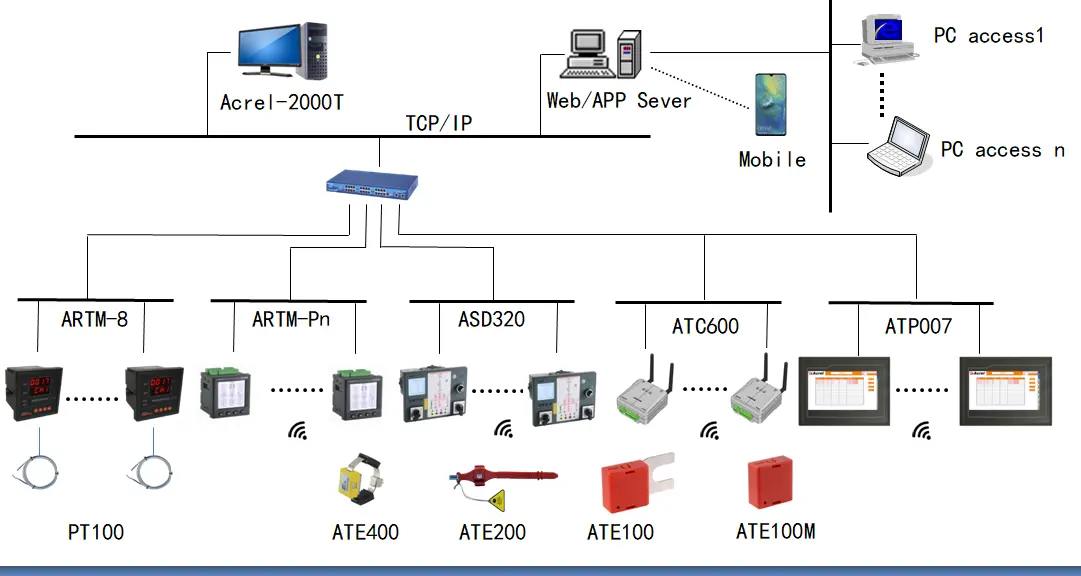

Structure




System Functions


1) Wireless monitor temperature

2) Temperature display

3) Report

4) Curve

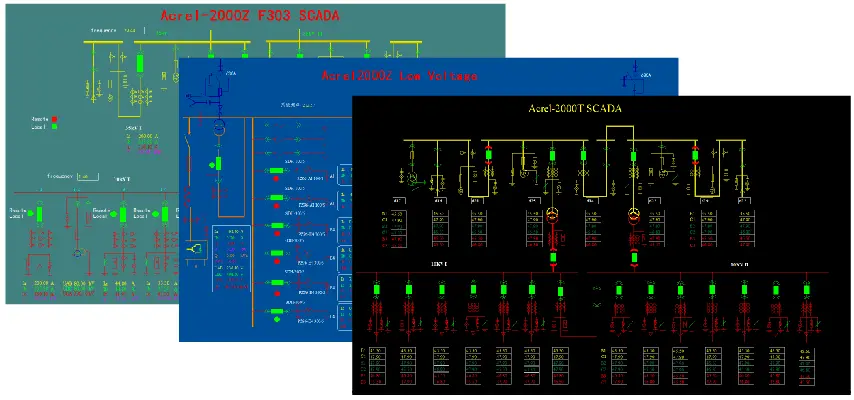

5) Web/APP


Solution Selection



1) In Medium and Low Voltage Cabinets--with display




2)  In Medium and Low Voltage Cabinets--without display





3)  In Medium and Low Voltage Cabinets (centralized on-site display/on-site no display)





Product Selection

Product Name
Product Image
Functions


● Small size

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,15s;

● CT-powered, more than 5A starting current;

● Widely temperature measuring range, -40℃~125℃.


● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,25s;

● Battery -powered,more than 5 years;

● Widely temperature measuring range, -40℃~125℃


● Wireless transmit,2.4GHz;

● Wireless transmission distance, 10 meters;

● Fast sampling frequency, 25s;

● Battery -powered, more than 5 years;

● Widely temperature measuring range, -40℃~+125℃

● Wireless transmit

● Wireless transmission distance, 150 meters;

● Fast sampling frequency, 25s;

● Battery -powered, more than 5 years;

● Widely temperature measuring range, -40℃~+125℃.


● Wireless temperature measurement;

● Measuring 60 points;

● 1 RS485 serial communication, Modbus-RTU;

● Power supply adapt with DC24V



● Wireless temperature measurement;

● Measuring 240 points;

● 1 RS485 serial communication, Modbus-RTU;

● 2 alarm relays

● Power supply adapt with AC/DC220V, AC/DC110V.


● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;

● 2 alarm relays;

● LCD display;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 1 RS485 serial communication, Modbus-RTU.

Acrel-2000T/A Collection Device

● Wireless temperature measurement, 240 points;

● Power supply adapt with AC220V, DC220V, DC110V, AC110V;

● Temperature Curve;

● High temperature alarm, buzzer;

● 1 RS485 serial communication, Modbus-RTU;

● 1 Ethernet communication.
