Appearance
Specification
| Model | Shape | Specification | Installation |
| ATE400 |
| 25.82*20.42*12.8mm
CT indcution powered,
start curent ≥5A；
470MHz
open distance 150m
| Alloy Sheet Fixed |
| | |
|

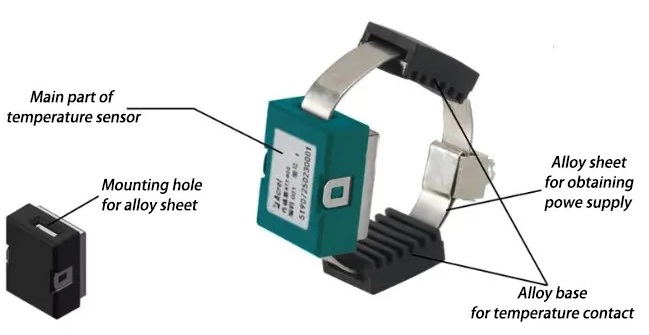

Structure

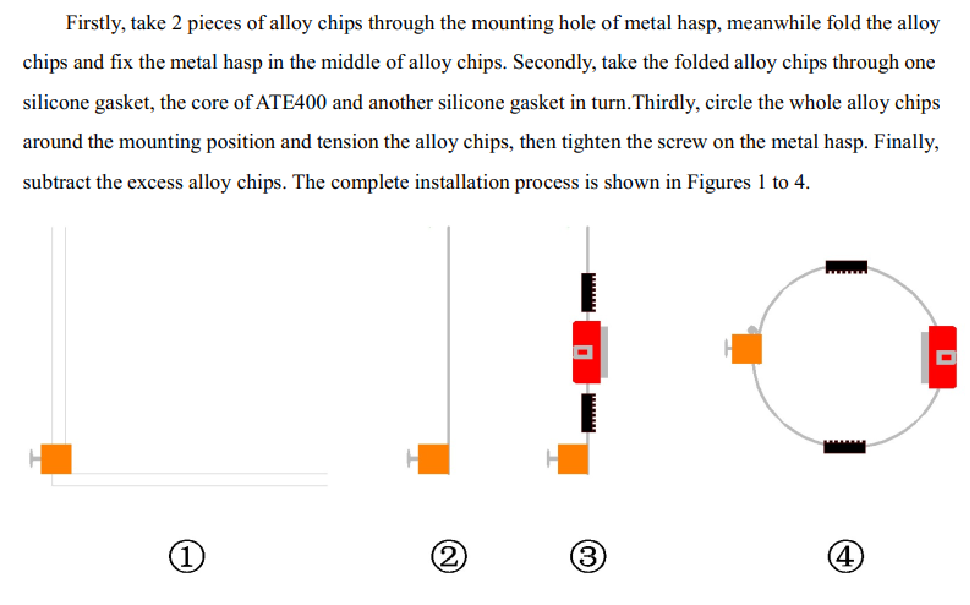

Installation
Typical Connection
FAQ
Q: Battery sensors don't display temperature.
A: Possible Reasons:
A.The sensor's power switch is not turned on;
B.The sensor and transceiver are not matched;
C.Turn on the sensor first, and then power on the transceiver, wait about 15MIN. The distance between the sensor and the transceiver is far.
Q: Passive sensors don't display temperature.
A: Possible Reasons:
A.Installing layers of sensor's alloy plates are not enough, at least 3 layers;
B.The sensor and transceiver are not matched;
C.The starting current when the sensor is installed is less than 5A;
D.The distance between the sensor and the transceiver is far.
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(3 PC) 170*150*130mm
| Package Weight(3 PC) 0.5Kg
|
WHOLE BOX PACKAGE
| Package dimensions(108 PCS) 450*240*250mm
| Package Weight(108 PCS) 18kG
|
PRODUCT HS CODE
| 8543709990
|
ATTENTION ! The above packing and weight data are only refer to model ATE400 For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
