General

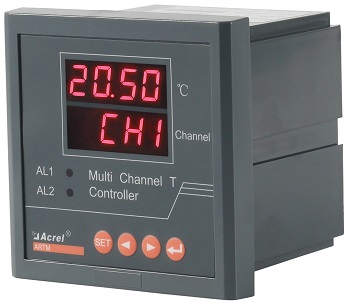

ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.

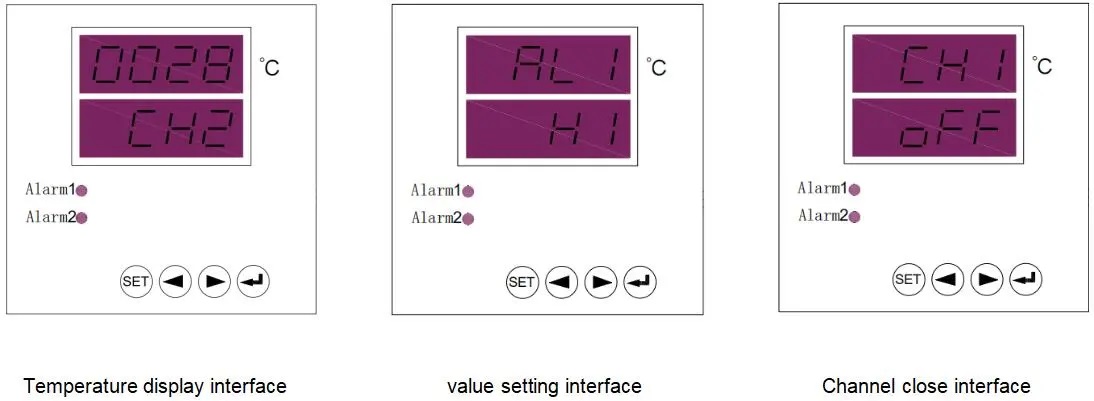

LCD Display
Function Features
| 1. Accuracy 0.5s
2. Channels: 8 PT100 measurement
3. Inputs: Thermal resistance: Pt100
4. Output: 2 Alarm relays
5. Output of relay: Set the alarm direction and alarm value |

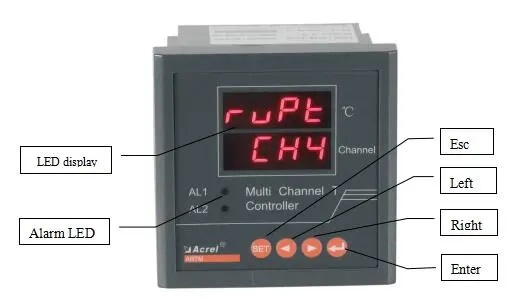

Wiring
| ① LED DISPLAY
② ALARM LED
③ ESC
④ LEFT
⑤ Right
⑥ Enter
|
Selection

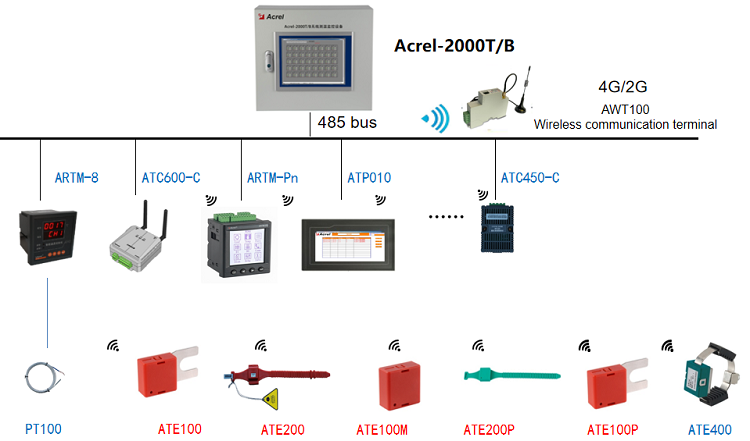

1. in high and low voltage cabinets--with displayARTM-Pn Function:
Panel: 96*96*17mm，depth65mm，opencut 92*92mm；
Power supply:AC85-265V or DC100-300V；
one channel RS485 Modbus；
receive max.60pcs ATE100/200/300/400；
3 phases electric measurement.
Sensors match:
1. quantity:up to 60；
2. distance: can receive within 10 cabinets.
2. On-site wall-mounted centralized display solution
Connection

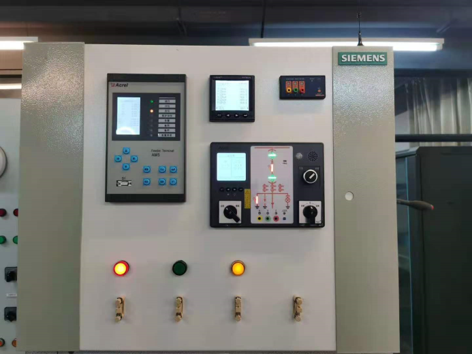

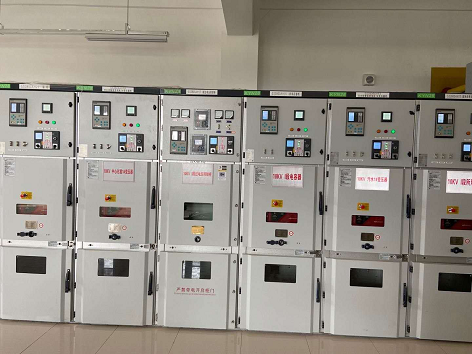

Installation

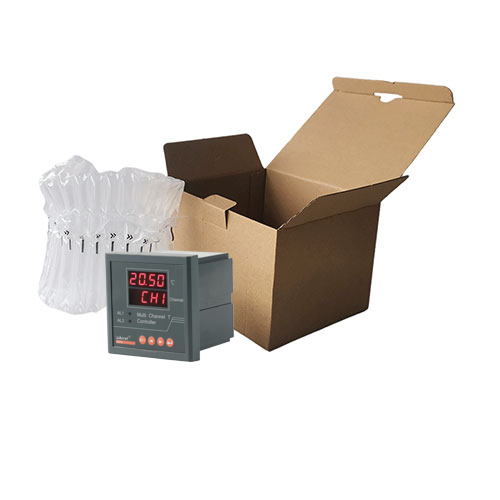

Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 170*150*130mm
| Package Weight(1 PC) 0.35Kg
|
WHOLE BOX PACKAGE
| Package dimensions(36 PCS) 450*240*250mm
| Package Weight(36 PCS) 12.6kG
|
PRODUCT HS CODE
| 9303031000
|
ATTENTION ! The above packing and weight data are only refer to model ARTM-8. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
