AIM-T500 Industrial Insulation Monitoring Device

AIM-T500


● LCD display with backlit
● Unearthed AC,DC main circuits
● IT systems including high leakage capacitances
● Coupled IT systems




Description

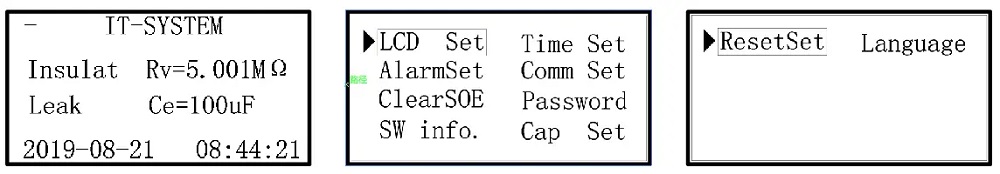

LCD Display

Parameters



Auxiliary Power Supply

Frequency
40-60Hz
Power Consumption
<8W
Voltage Range
System Voltage
AC/DC 0~480V


Communication

Interface
RS485
Protocol
MODBUS-RTU

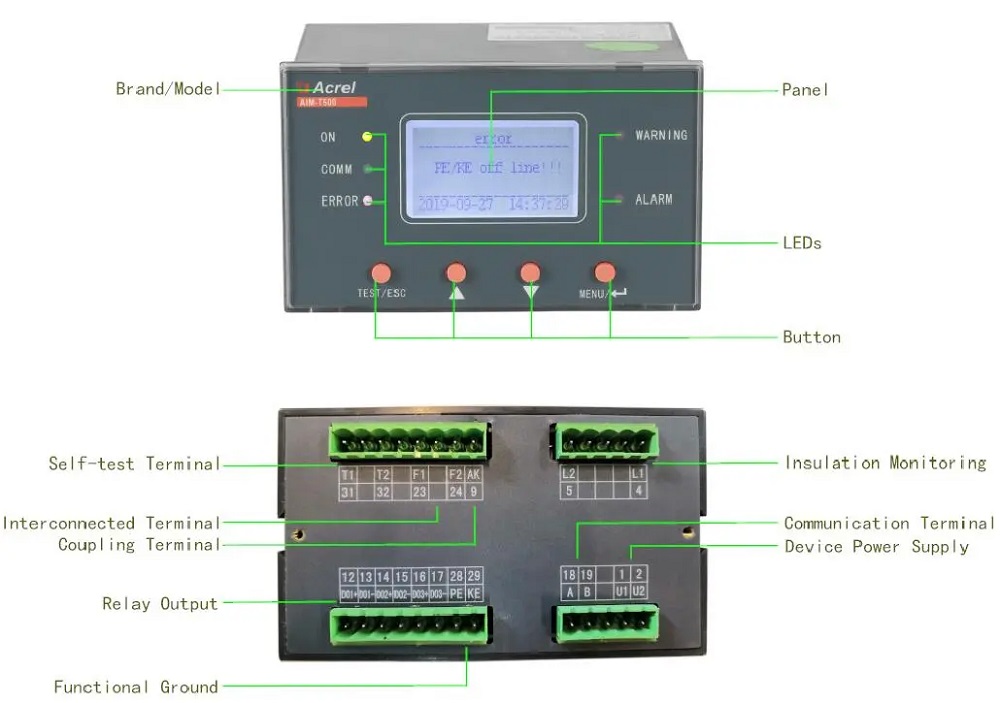

Wiring


Typical Connection

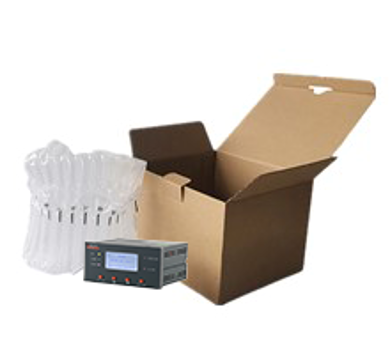

Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.32Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

535*525*475mm

Pakage Weight(36 PCS)

11.52kG


PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model AIM-T500.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
