AIM-T300 Industrial Isolated Monitoring Device

AIM-T300


● LCD display with backlit
● Unearthed AC,DC main circuits
● IT systems including high leakage capacitances
● Coupled IT systems

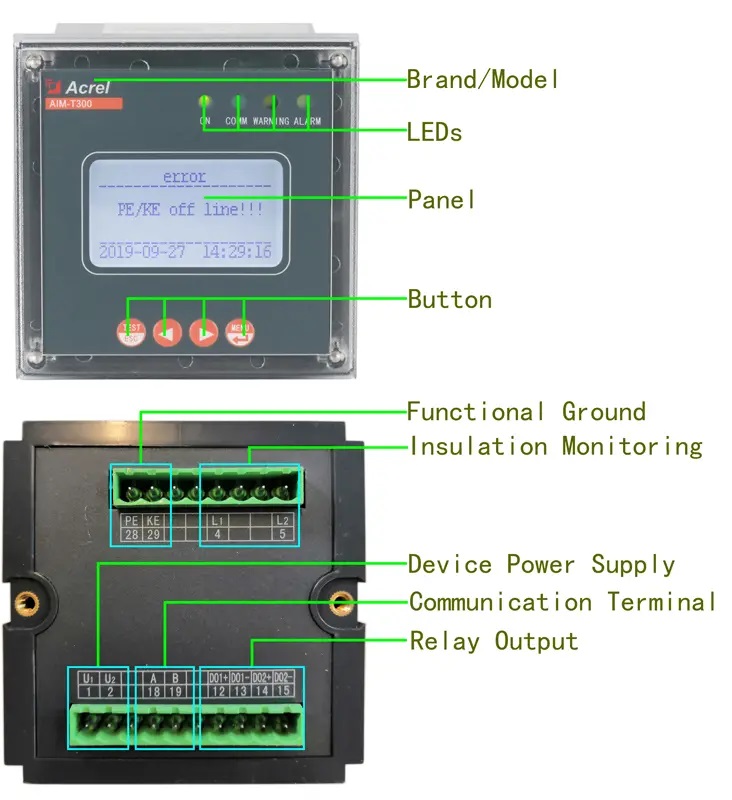

Description

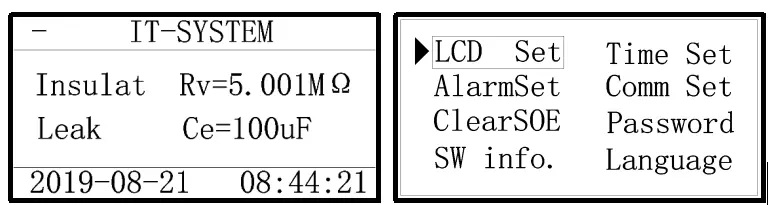

LCD Display


Parameters





Auxiliary Power Supply

Voltage
AC85-265V
Frequency
40-60Hz
Power Consumption
<8W
Voltage Range
System Voltage
AC/DC 0~480V


Output


Relay output


Capacity

Fault Warning
AC 250V/3A DC 30V/3A

Fault alarm

AC 250V/3A DC 30V/3A


Communication

Interface
RS485
Protocol
MODBUS-RTU




Wiring

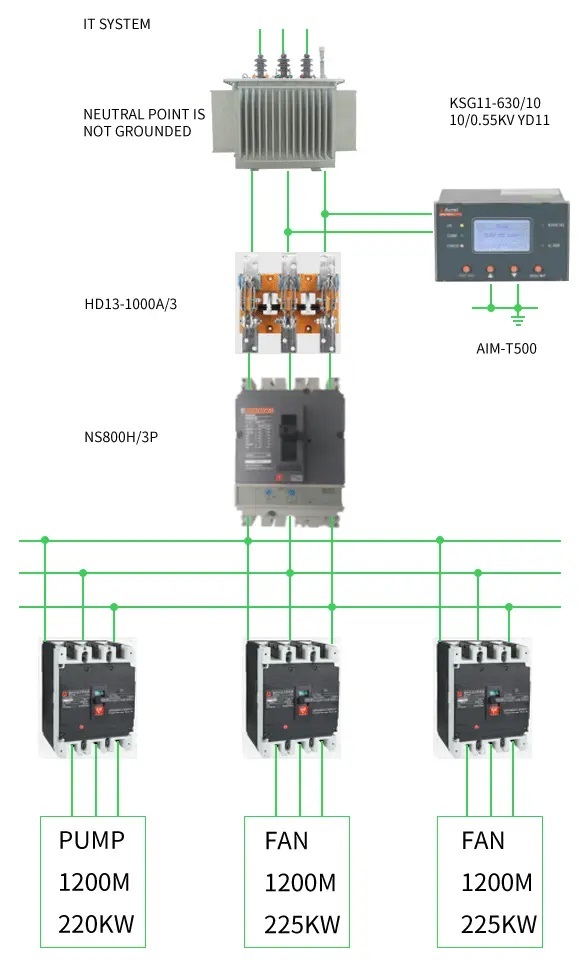

Typical Connection

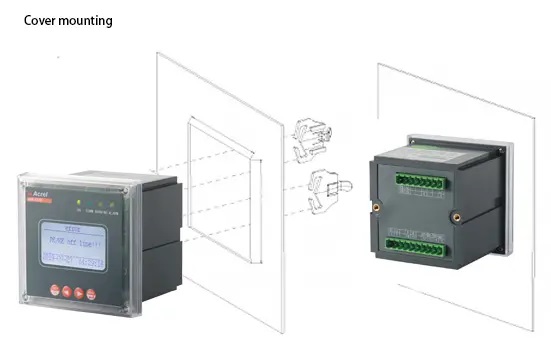

Installation

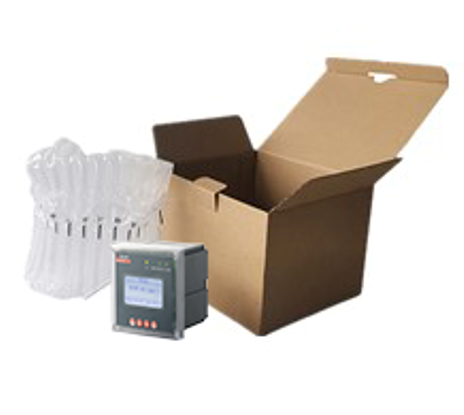

Package



MINIMUM PACKAGE







MINIMUM PAKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.61Kg


WHOLE BOX PAKAGE


Package dimensions(36 PCS)

535*525*475mm

Pakage Weight(36 PCS)

21.96kG


PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model AIM-T300.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
