AMC16Z-FAK48 Multi channel din rail ac power meter

AMC16Z-FAK48



● Designed specifically for the power supply management of server in the data center

● A+B independent 24 circuits（48 in total）

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-31st  Harmonic

● kWh Class 0.5

● DIN 35 mm



Description

General

AMC16Z series multi channel din rail ac power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.


Parameters


* 24 channels of each circuit of A+B

*independent 2 circuits the outgoing current,

*active power, active power, reactive power


* 2-31st harmonic, 48DI
* 1 RS485 communication





 *Installation:

DIN rail 35mm


* Dimension(L*W*H)：

180*94.3*75mm

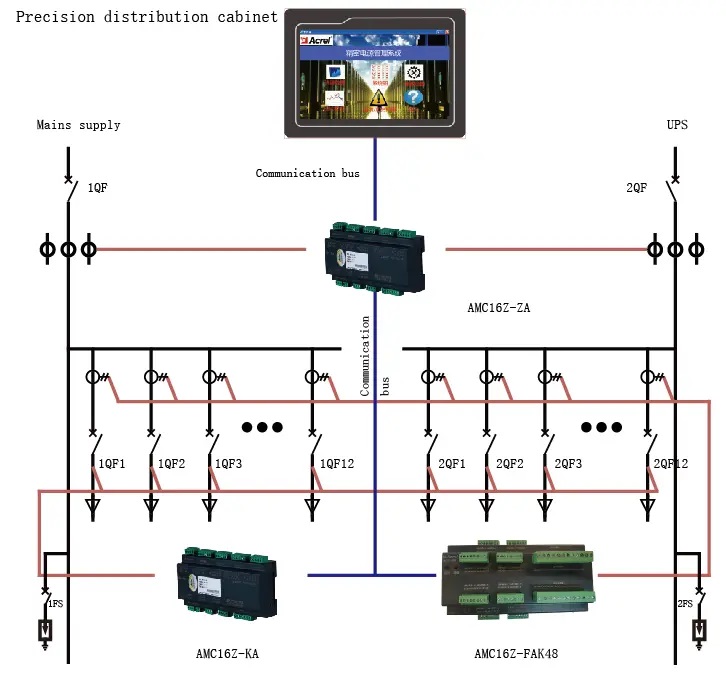

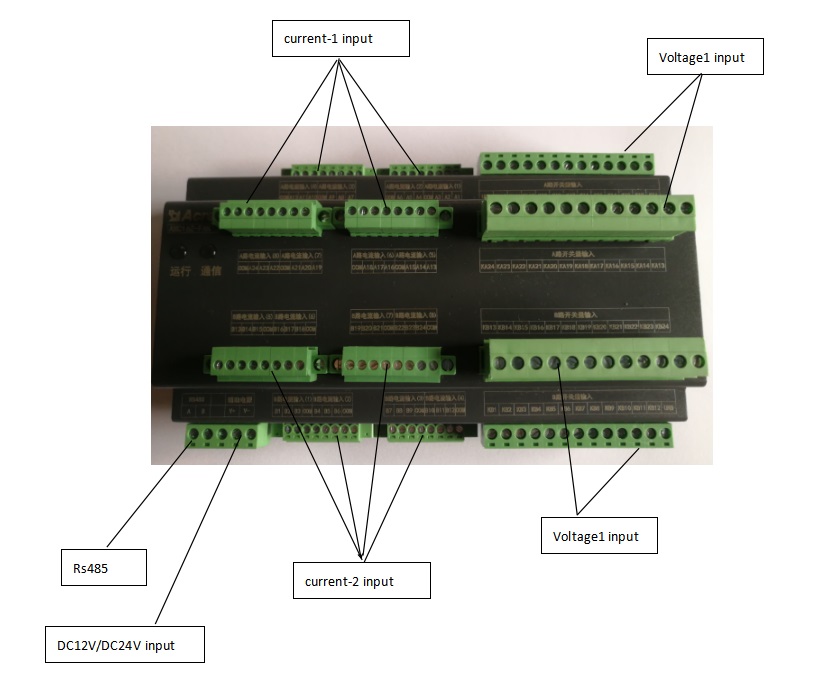

Wiring

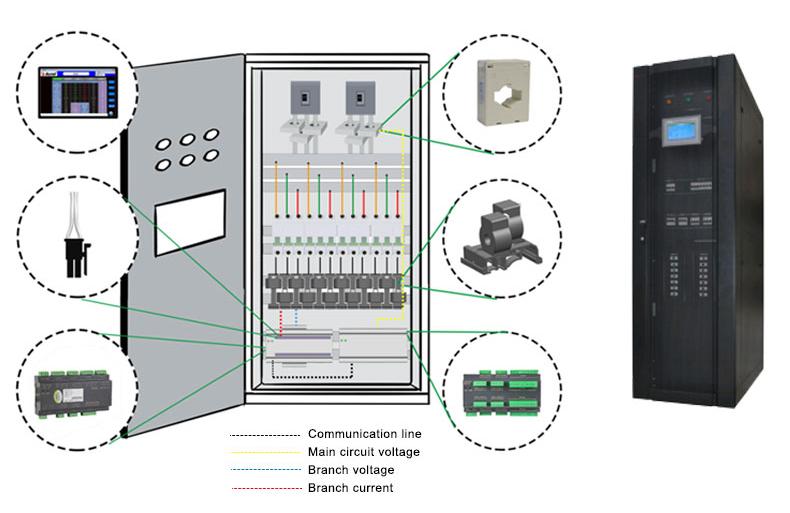

Cabinet Diagram

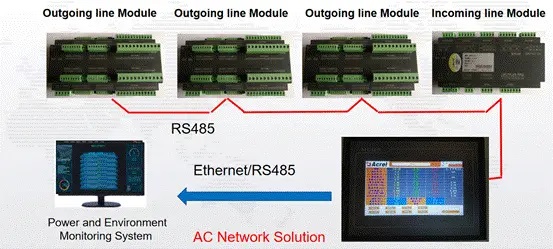

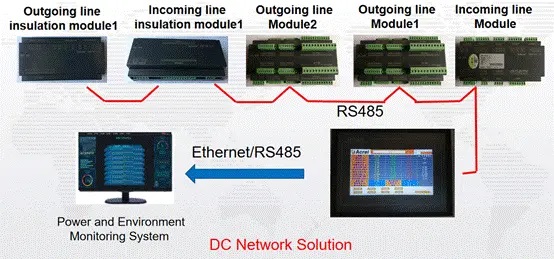

Network

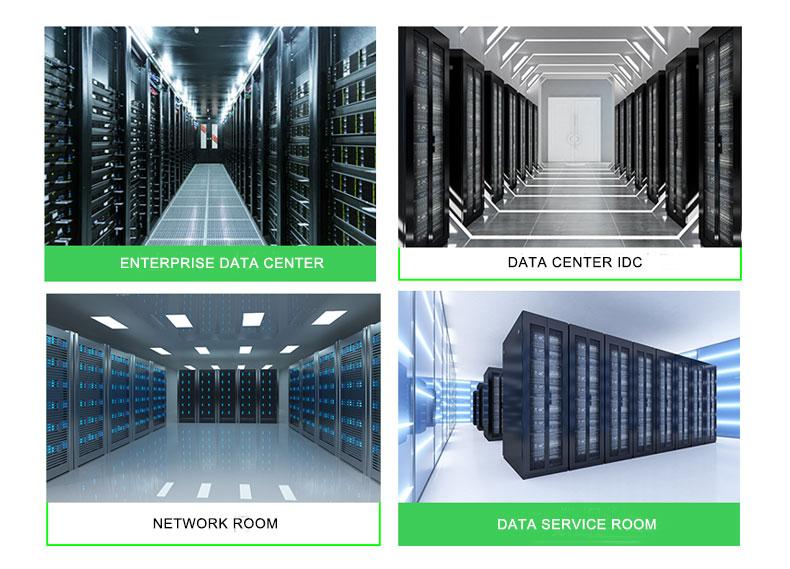

Application

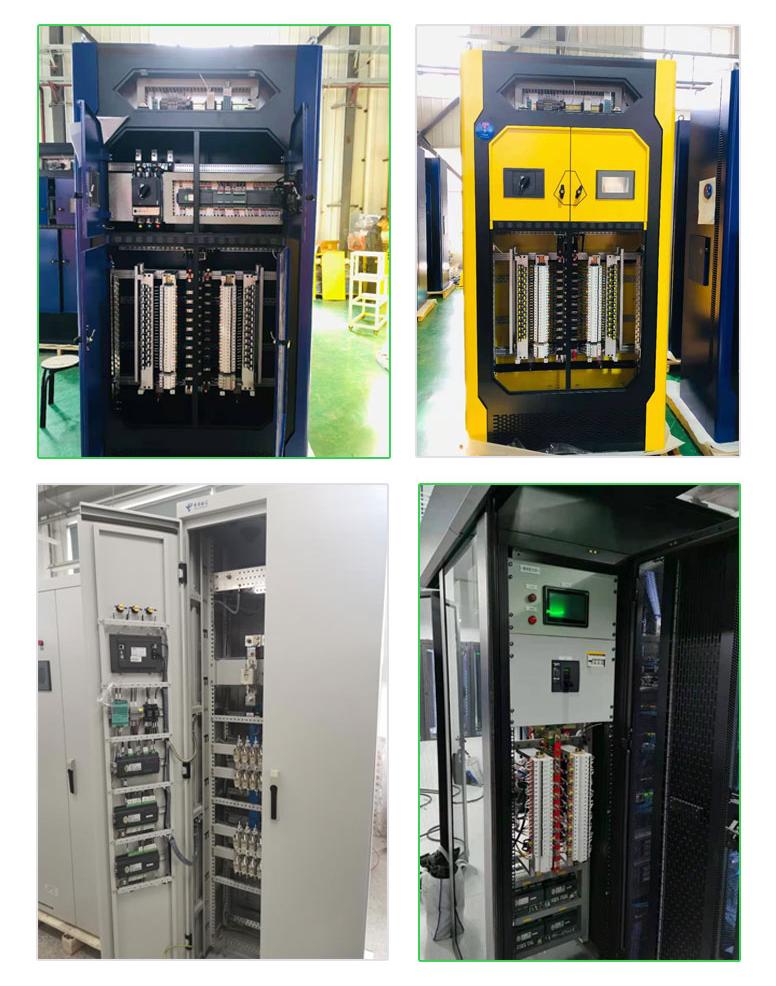

Photo on site


Package



MINIMUM PACKAGE






MINIMUM PAKAGE


Package dimensions(1 PC)

220*170*90mm

Pakage Weight(1 PC)

0.28Kg

WHOLE BOX PACKAGE

Package dimensions(24 PC)

615*480*395mm


Pakage Weight(24 PC)

6.72Kg



PRODUCT HS CODE


9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-FAK48.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
