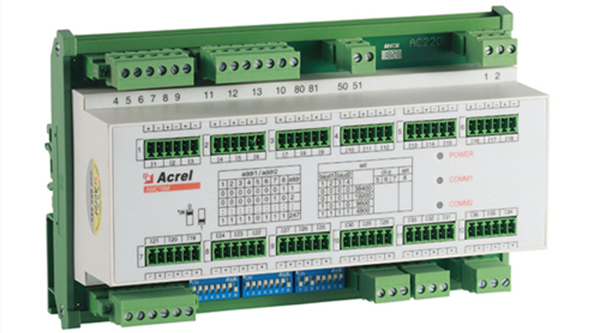

AMC16MA AC multi circuit energy meter

AMC16MA


● RS485 communication interface

● Designed specifically for the power supply management of server in the data center

● Including 2 incoming line circuit and 36 outgoing line circuit

● U, I, P, Q, S, PF, kWh, kvarh

● Optional 2nd-15th harmonic


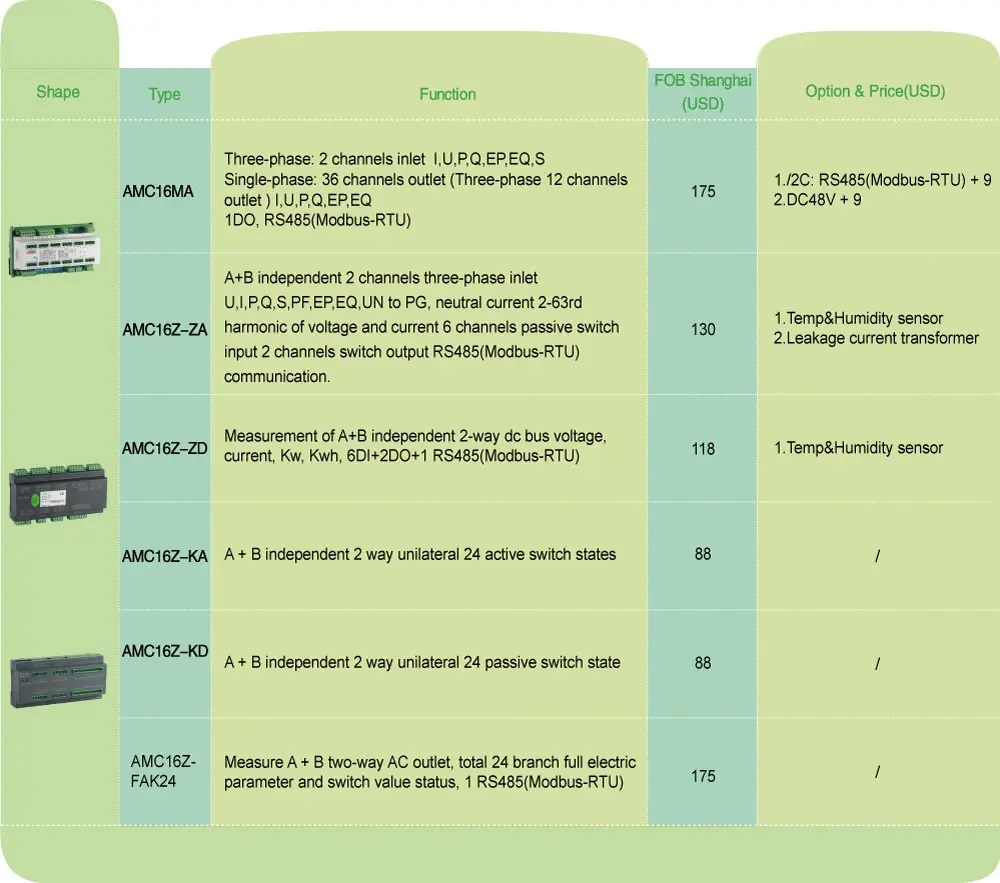

Description

General

AMC16MA AC multi circuit energy meter is a measuring device designed specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.

Functional features


*Three-phase 2 channels inlet voltage, current, active power, reactive power, power factor, active energy, reactive energy


*Single-phase 36 channels outlet (Three-phase 12 channels outlet) voltage, current, active power, reactive power, power factor, active energy, reactive energy


*1 on-off output


*2  RS485 communication


*Optional 2nd-15th harmonic



Parameters

Distribution system

AC

Measurement

Three-phase 2 channels inlet voltage, current, active power, reactive power, power factor, active energy, reactive energy

Busbar voltage

Rated

220V AC

Measurement range

40-400V AC

Overload

instantaneous voltage twice/30 seconds

Current

Inlet

CT

XXA/5A

Range

0-10A

Outlet

CT

100A/20mA

Range

0-120A

Overload

1.2 times for continuous,and 10 times/5 seconds for instantaneous

Accuracy

Inlet

Class 1.0

Outlet

Class 2.0

Frequency

45-60Hz

Power supply

AC85-265V/DC100V-350V

Insulation resistance

100MΩ

Communication

Modbus-RTU

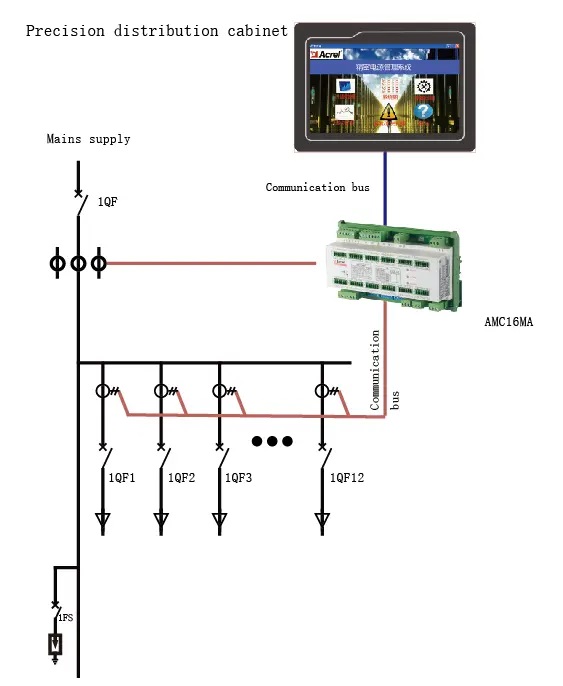

Wiring

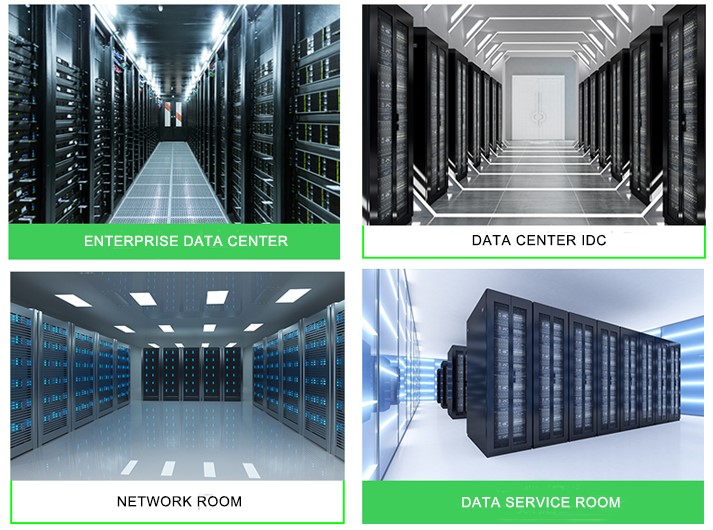

Application




Network


Package




MINIMUM PACKAGE






MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.49Kg


Package dimensions(24PC)

170*150*130mm


Pakage Weight(24PC)

11.76Kg



PRODUCT HS CODE


 9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-MA.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
