AMC16Z-ZA AC multi channel energy meter

AMC16Z-ZA


● Designed specifically for the power supply management of server in the data center
● A+B independent 2 channels three-phase inlet
● U, I, P, Q, S, PF, kWh, kvarh
● 2nd-63rd  Harmonic


Description

General

AMC16Z-ZA AC multi channel energy meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

Parameters



*A+B independent 2 circuits three-phase main line bus bar’s voltage, current, active power,

reactive power, apparent power, power factor, active power, reactive power, zero ground voltage,

midline current, 2-63 harmonics of voltage and current

*6 passive switching input
*2 switching output
*1 RS485 communication






 *Installation:

DIN rail 35mm


* Dimension(L*W*H)：

180*94.3*45mm

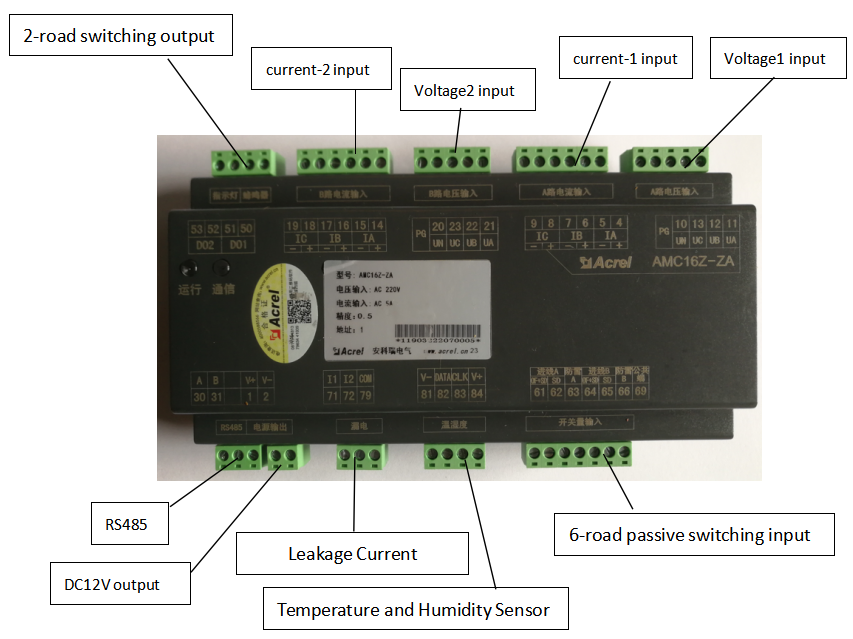

Wiring



Cabinet Diagram


Network



Application


Photo on site



Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

220*170*90mm

Pakage Weight(1 PC)

0.35Kg

WHOLE BOX PACKAGE

Package dimensions(24 PC)

220*170*90mm


Pakage Weight(24PC)

8.4Kg



PRODUCT HS CODE


 9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-ZA.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
