AIM-M100 Medical Isolated Meter

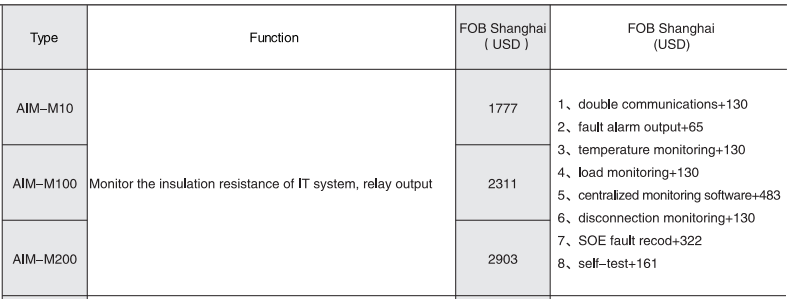

AIM-M100



● Insulation monitoring for medical IT systems

● Load and temperature monitoring of isolation transformer

● Device disconnection monitoring

● LED indicators: On, Insulation, Overload, Overtemp

● Alarm relay output

● Test button

● Insulation fault location

● Din 35mm

● RS485 (MODBUS-RTU) + CAN



Description

General

The AIM-M100 medical isolated meter the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M100 is designed to support insulation fault location.


Parameter


AUX Power

Voltage

AC220V±10%

Temperature monitoring

Thermal resistor

2 Pt100

Power consumption

≤5VA

Measuring range

-50~+200℃

Insulation Monitoring

Resistance measuring range

10~999kΩ

Alarm value range

0~+200℃

Response value

50~999kΩ

Alarm

output

Output mode

1 Relays

Relative uncertainty

±10%

Contact rating

AC 250V/3A

DC 30V/3A

Response time

≤3s

Environment

Operating temperature

-10~+55℃

Permissible system leakage capacitance Ce

≤5uF

Transport temperature

-25~+70℃

Measuring voltage Um

≤12V

Storage temperature

-25~+70℃

Measuring current Im

≤50uA

Relative humidity

5%-95%, No condensation

Impedance Zi

≥200kΩ

Altitude

≤2500m

Internal DC resistance Ri

≥240kΩ

IP degree

IP30

Permissible extraneous DC voltage Ufg

≤DC280V

Rated impulse voltage / pollution degree

4KV/Ⅲ

Load Current Monitoring

Measuring Value

2.1~50A

EMC

IEC 61326-2-4

Alarm Value

5~50A

Communication

RS485(Modbus-RTU)

Measuring accuracy

±5%

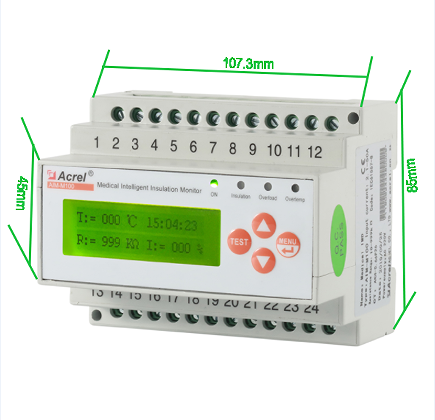

Dimension

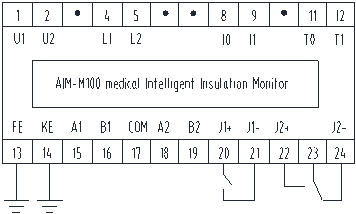

Wiring


1,2(U1,U2):  Power supply
4,5(L1,L2):  IT system connector
8,9(I0,I1):  Load current connector
11,12(T0,T1):  Temperature sensor connector
13,14(FE,KE):  Functional earthing
15,16(A1,B1):  RS485 communication port1
18,19(A2,B2):  RS485 communication port2
20,21(J1+,J1-):  Relay output1
22,24(J2+,J2-):  Relay output2



Network

Applicaiton:Operating Room




Package



MINIMUM PACKAGE






MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.461Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Pakage Weight(36 PCS)

16.6kG


PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model AIM-M100.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
