AMC16Z-ZD DC multi channels din rail power meter

AMC16Z-ZD


● Designed specifically for the power supply management of server in the data center
● A+B independent 2 channels three-phase inlet
● U, I, P, Q, S, PF, kWh, kvarh
● 2nd-63rd  Harmonic


Description

General

AMC16Z-ZD DC multi channels din rail power meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

Parameters



*A+B independent 2 circuits DC main line bus bar’s voltage, current, active power,

reactive power, apparent power, power factor, active power, reactive power

*6 passive switching input
*2 switching output
*1 RS485 communication






 *Installation:

DIN rail 35mm


* Dimension(L*W*H)：

180*94.3*45mm

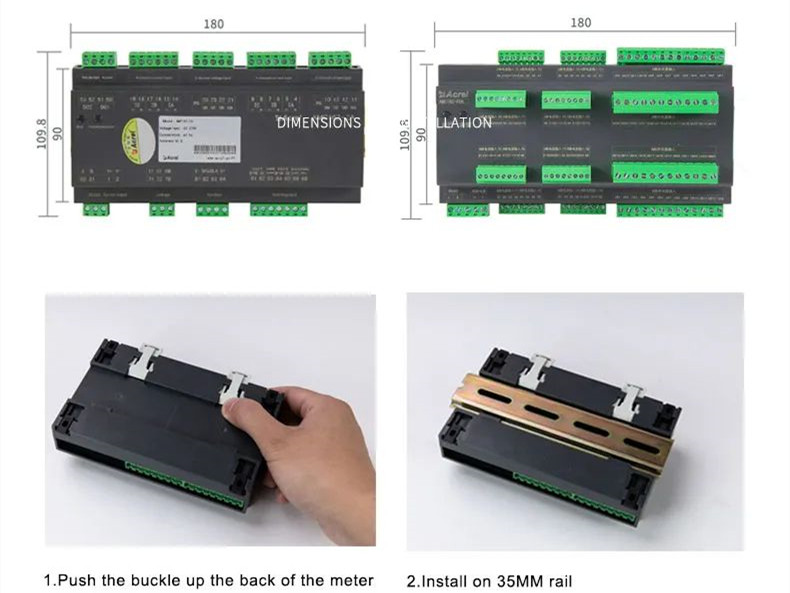

Dimension & Installation



Wiring



Network

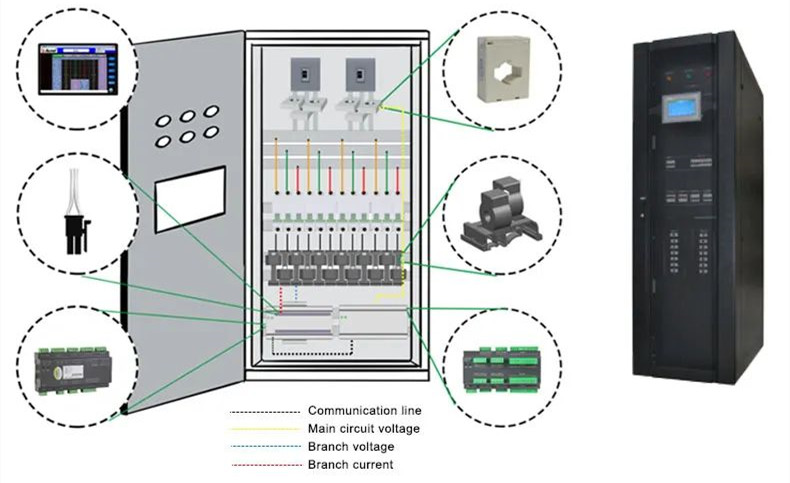

Cabinet Diagram

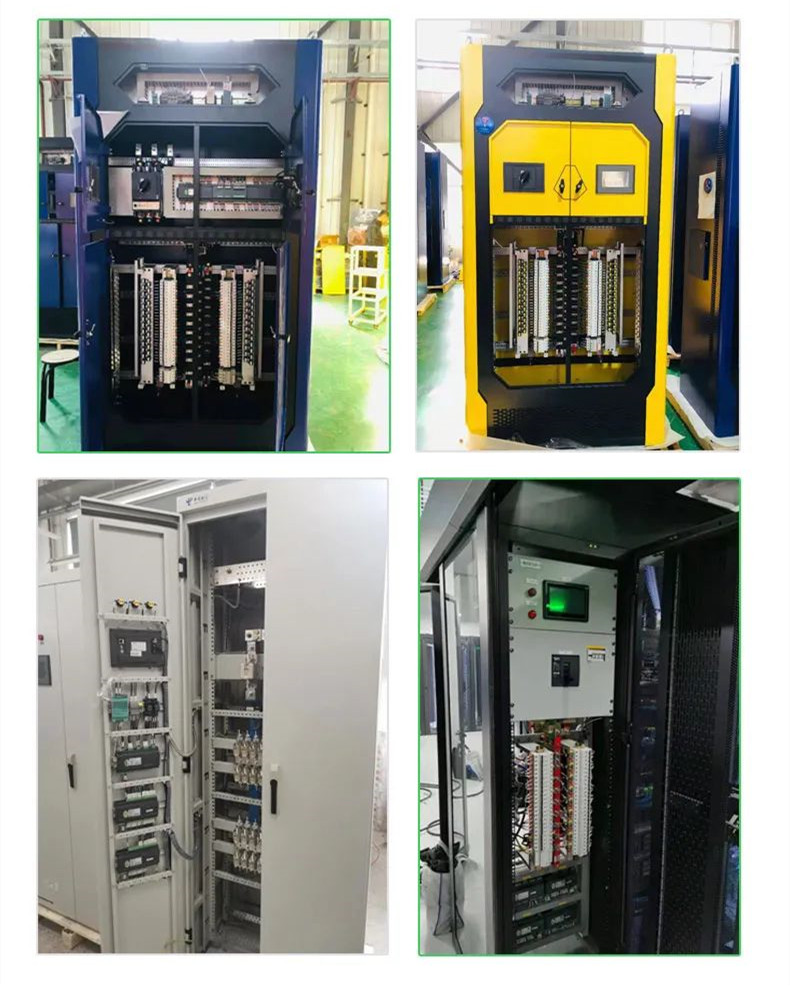

Site Installation Photos



Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

220*170*90mm

Pakage Weight(1 PC)

0.29Kg

WHOLE BOX PACKAGE

Package dimensions(24PC)

220*170*90mm


Pakage Weight(24 PC)

6.96Kg



PRODUCT HS CODE


 9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-ZD.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
