AMB100-D/AMB110-D Series Data Center Busway Monitoring Module

AMB100-D/AMB110-D

● 2 dry-contact inputs

● 45-65Hz

● 3x220/380VAC

● DIN 35 mm



Description

General


AMB Smart Alternating-current Bus Bar Monitor is a new development to cater for smart power bus bar. It consists of a feeding detection module and a tapping detection module and integrates functions of conventional power measurements, electricity monitoring, consumption assessment and control. It also boasts the online alarm function and enables the independent off-line operation. It monitors the bus bar interface temperature in real time.

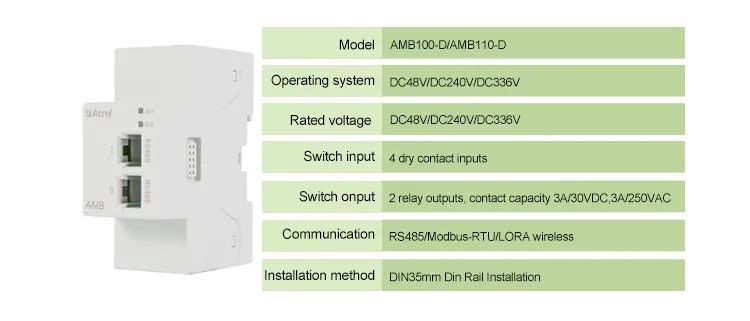

Parameters




Voltage

Rated Value
3x220/380VAC
Range
±20%
Overloading
1.2 times than the rated voltage value continuously or 2 times than the rated voltage value instantaneously per second



Current

CT
AMB100-A : 5A/2.5mA, 100A/20mA, 400A/100mA, 600A/100mA AMB110-A:100A/20mA
Range
1%-120%
Overloading
1.2 times than the rated current value continuously or 10 times than the rated current value instantaneously per second

Dimension

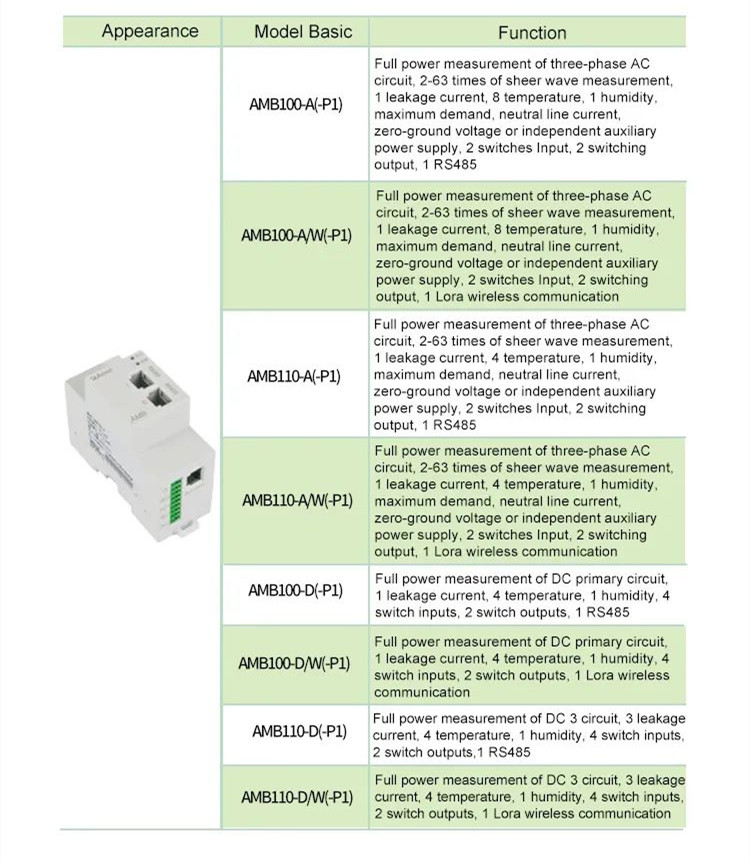

Product Model

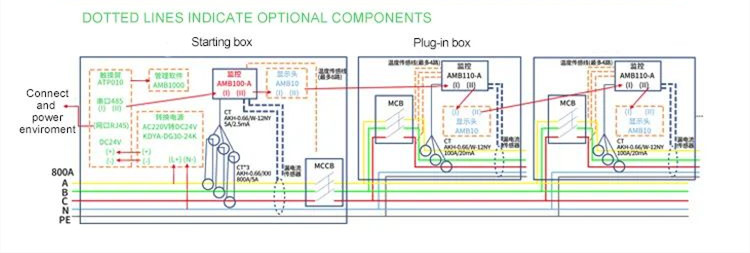

Schematic Diagram

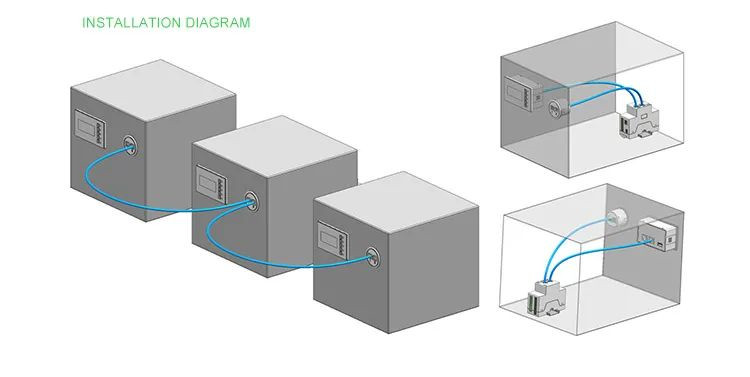

Wiring




Network

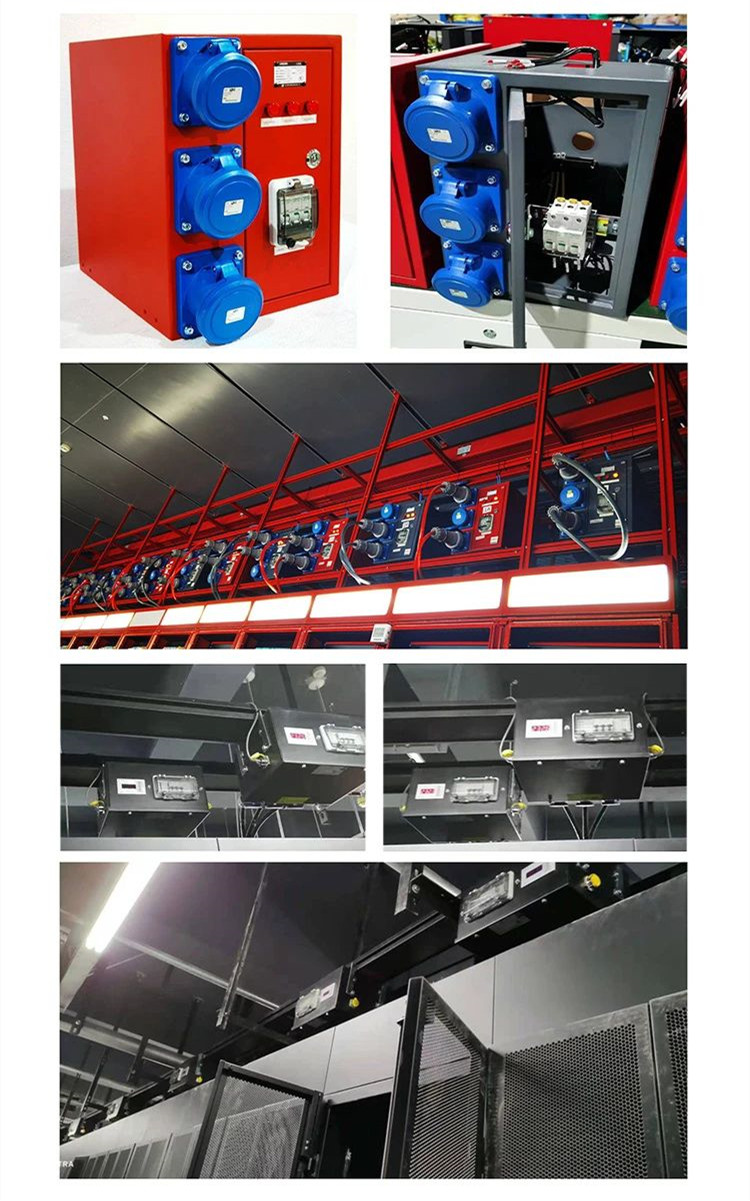

Site Application Photos





Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

130*150*170mm

Pakage Weight(1 PC)

0.18Kg

WHOLE BOX PACKAGE

Package dimensions(24PC)

535*525*475mm


Pakage Weight(36PC)

8.74Kg



PRODUCT HS CODE


9028309000

ATTENTION !

The above packing and weight data are only refer to model AMC16Z-FDK48.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
