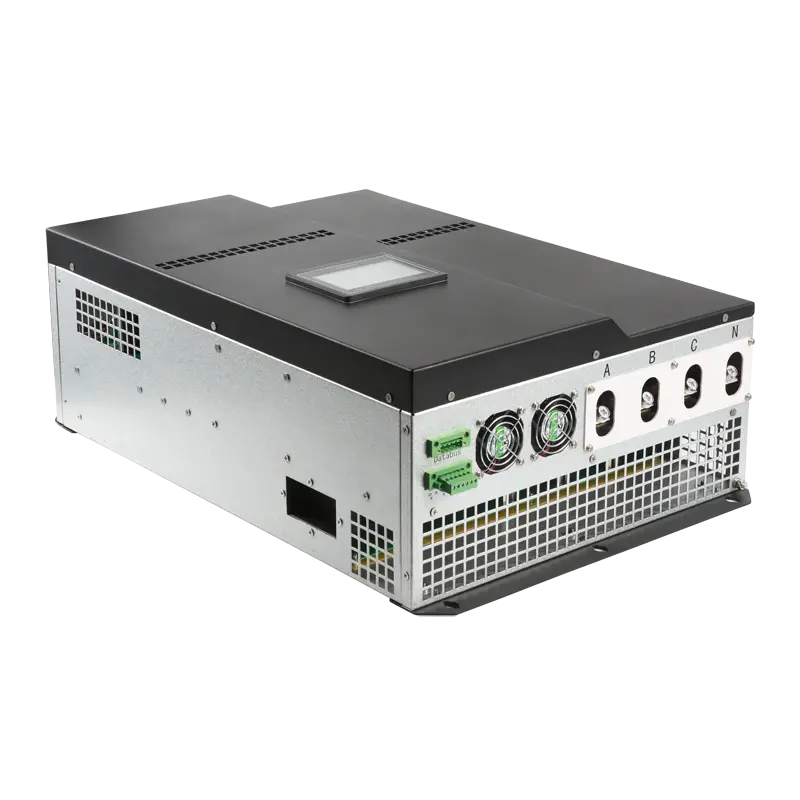

ANAPF Active Power Filter

ANAPF


● 380V±15%,50Hz±2%

● Full response time ≤ 5ms

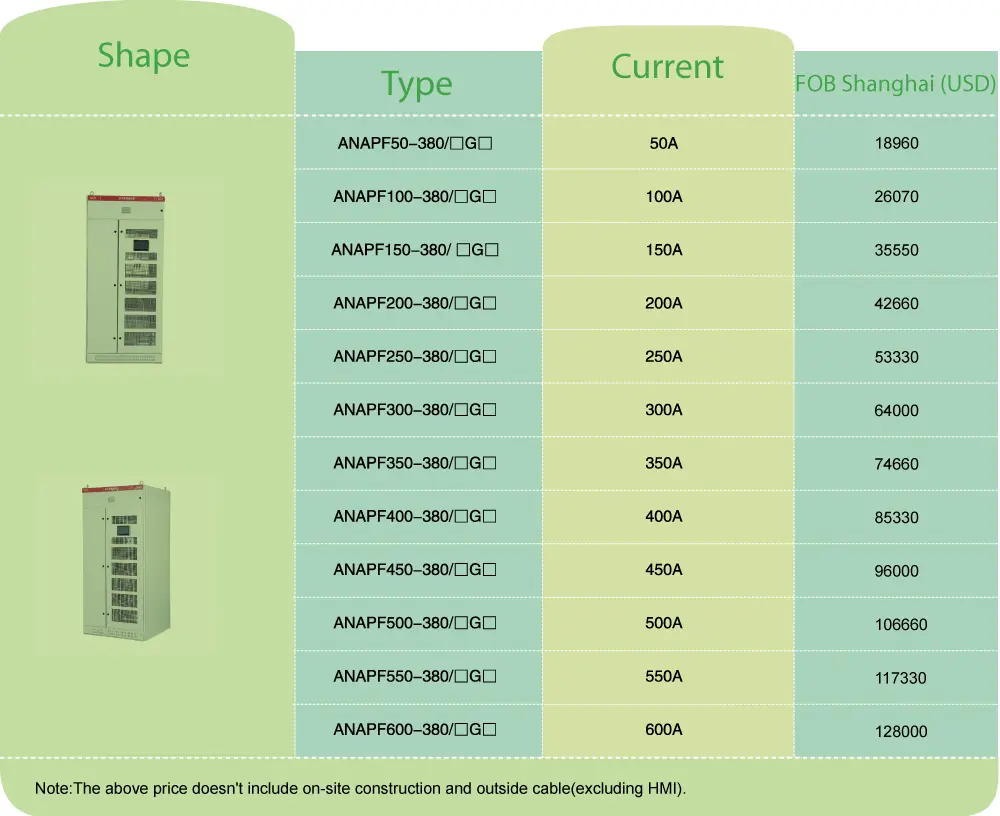

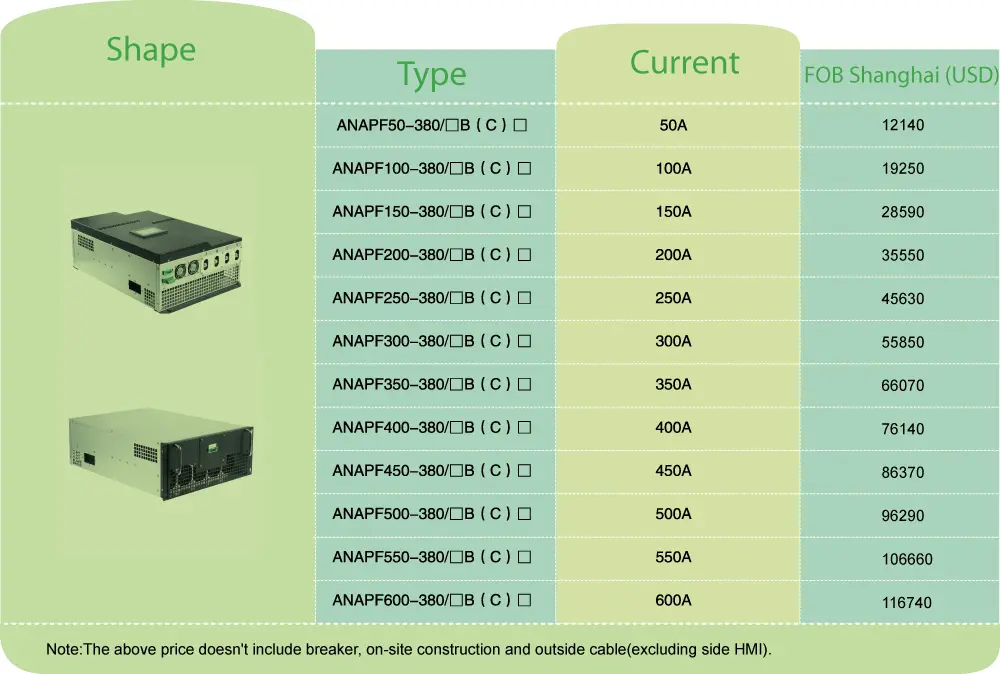

● 30A, 50A, 75A,100A or 150A

● RS485(Modbus-RTU）or Ethernet(Modbus-TCP)

● Frozen data

● 2-51st Harmonics


Description

General

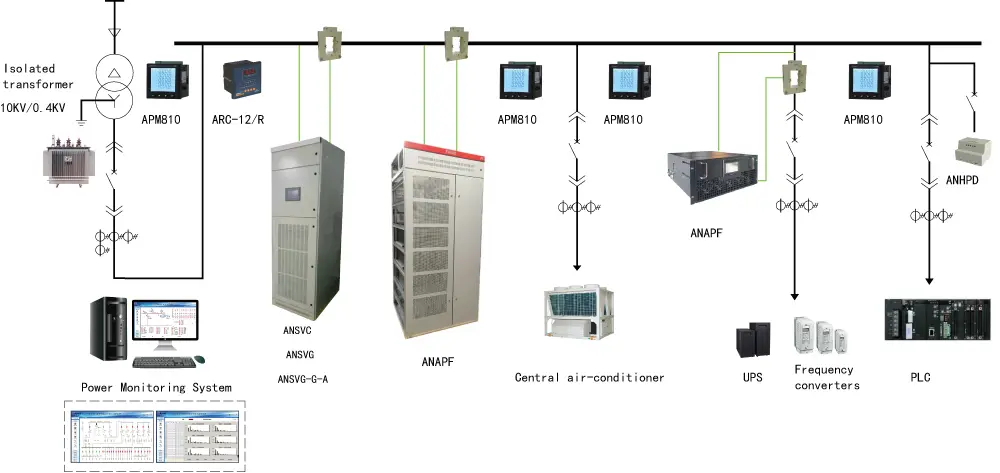

Active Power Filter ( APF ) is connected in parallel with the loads.A current generator (power unit) that converts the control signals generated by the filter controller into the filter compensation current. A filter controller that determines the anti-harmonic current to be injected based on the line current measurements and the user’s requirements. The line current measurements are obtained from current transformers (CTs) . The user enters his requirements by means of the user interface.


Parameters


1）Flexible compensation method：Compensate for harmonics only, compensate for reactive power only, compensate for both harmonics and reactive power，could compensate for 2th-25th harmonics or compensate for specific harmonics;

2）Ability of managing three-phase imbalance;

3）Linear compensation，Response time ≤ 5ms;

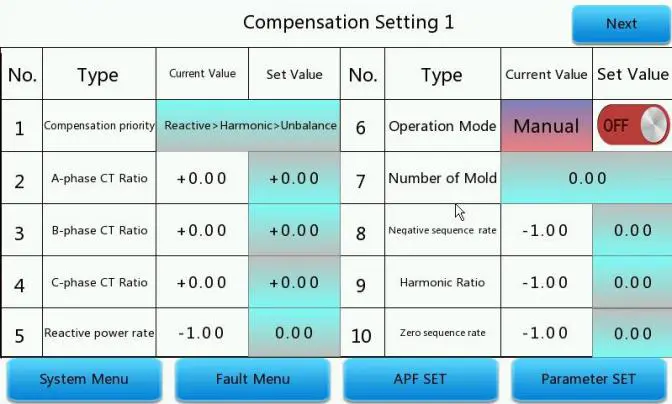

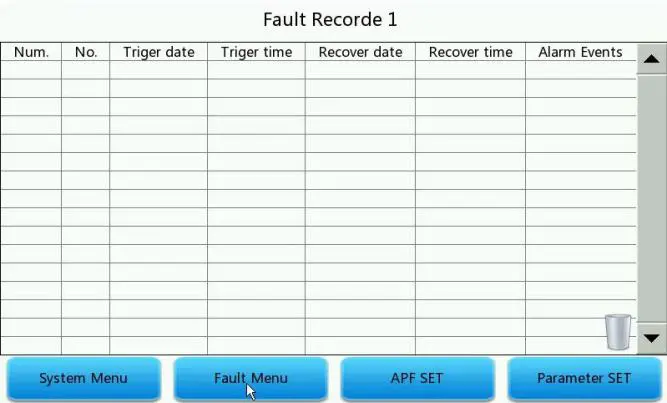

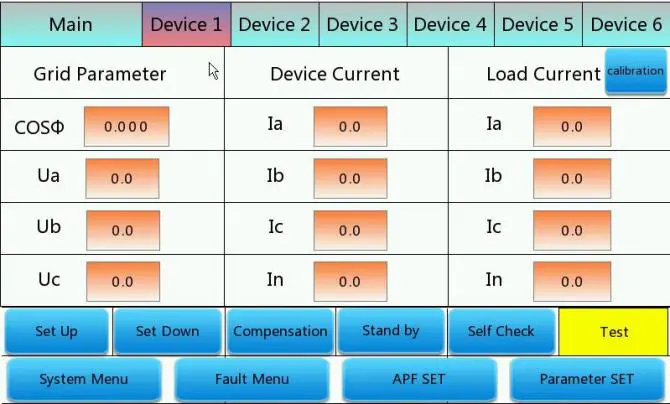

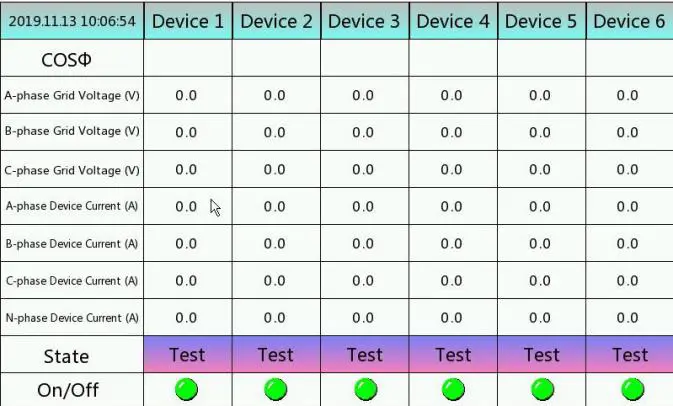

4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;

5）Adopt imported IGBT which has high power density and high reliability;

6）Using DSP digital control system for high speed detection and calculation;

7）With remote communication interface, real-time monitoring through PC;

8）Standard modular design which reduces lead times and increases reliability and maintainability.




Dimension(L*W*H)

450*622*201mm

Response time

Full response time≤5ms，Instantaneous response time≤100μs

Total harmonic compensation rate

≥ 97%，3th/5th/7th/9th independent compensation rate ≥ 98%

Self-loss

≤2%

Efficiency

≥98%

Switching frequency

20KHz




Interface






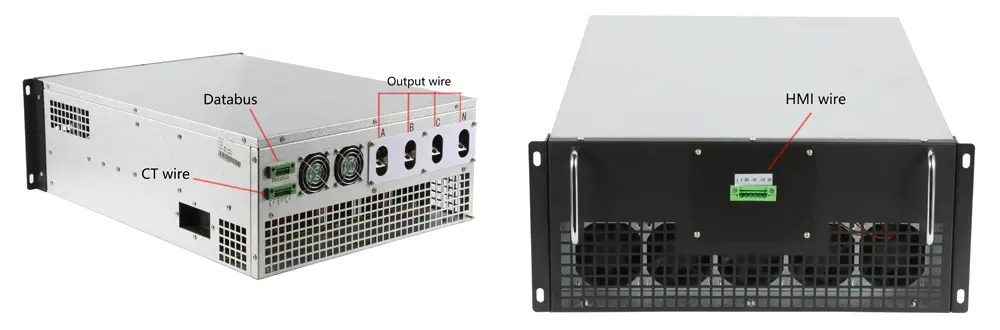

Wiring



Network
