AKH-0.66K-Φ Split Core Current Transformer for Cable

AKH-0.66/K-Φ

● Split core current transformer

● Accuracy: class 0.5

● Suitable for electricity renovation project






Description

General

Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.


Characteristics




● Security factor: FS＜5

● Maximum system voltage: 720V AC

● Test voltage: 3kV AC(1min)

● Rated frequency: 50/60Hz

● Rated short-time thermal current: Ith=40~60In

● Rated dynamic current: Idyn=2.5Ith

● Rated secondary current: X/5A (X/1A upon request)

● Rated primary current: Ranging up to 6000A

● Continuous overload: 120%In

● Protection level: IP30

● Casing: Non-flammable, polycarbonate self-extinguishing ABS

● Environment:

Operating temperature: -25℃-+50℃

Storage temperature: -40℃-+80℃

Humidity (no condensation) ≤90%RH

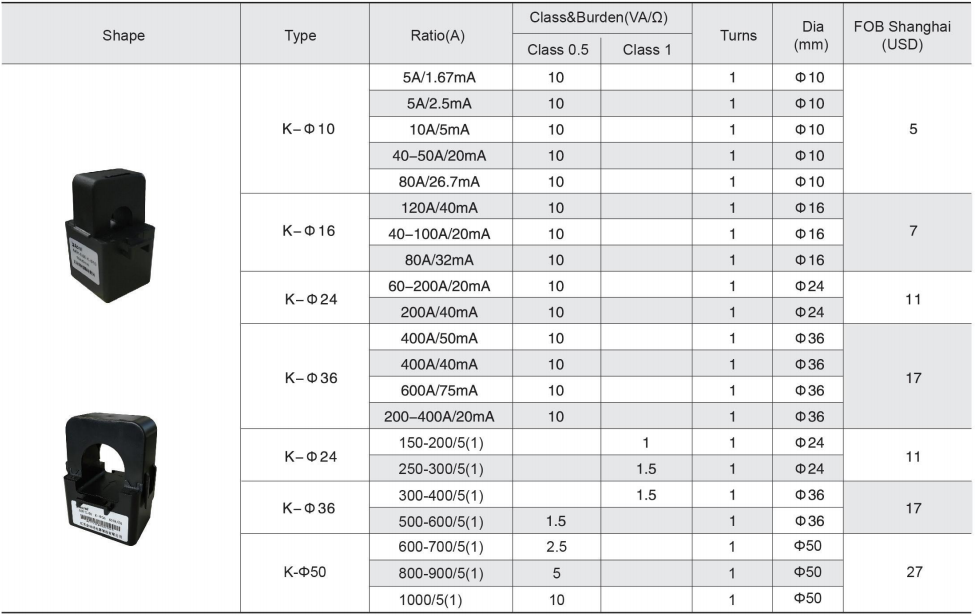

Parameter




Installation



Application




Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.21Kg


WHOLE BOX PACKAGE


Package dimensions(39 PCS)

450*240*250mm

Pakage Weight(39 PCS)

9.19kG


PRODUCT HS CODE


 8504311000

ATTENTION !

The above packing and weight data are only refer to model AKH0.66-K-∅24

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
