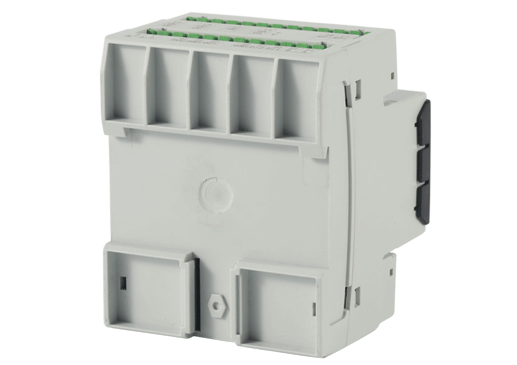

ADW200 IoT Wireless Energy Meter

ADW200


● Mearsure up to 4 circuit 3 phase

● Mearsure all electric parameters
● Split core open loop CTs
● External function module, such as MK(switching inputs and outputs), MTL(temperature measurement and leakage current measurement), AWT100(wireless communication)


Description

General

ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current transformer, easy to install on site, and realize remote wireless communication through wireless communication module.



Function



Accuracy

Active power: Class 1
Reactive power: Class 2


Frequency

Range: 50 - 60Hz


Pulse output

Active pulse output and reactive pulse output


Consumption

<0.5VA(Single phase)




Dimension (L*W*H)

Panel size (L×W): 72*97.7*36 mm

Installation: Din 35mm

Wireless
Transmission on 470MHz and maximum distance
in open space is 1km; 2G; NB

Starting current: 4‰lb


Parammeter

Auxiliary power
AC/DC 85～265V; Consumption≤10VA;


Input



Frequency
45～65Hz;


Voltage

AC 3×220V/380V; Overload: 1.2 times of rated value (continuous);

2 times of rated value / 1s; Power consumption: ≤ 0.5VA;

Current

AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA;

Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;

Measurement Accuracy

Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%;

Active electric energy level 1, reactive electric energy level 2;



Features

Pulse Output
Output mode: optocoupler pulse with open collector;
Communication
RS485、Modbus-RTU; Baud rate 1200～38400;
Switching Input
Dry contact input、Built in power supply;
Switching Output

Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;

Optional Module

External Module (MTL)
12 External NTC Temp. Measurement
4 Channels Residual Current Measurement
External Wireless Module(AWT100)
Downlink RS485; Uplink 4G, 2G, NB, Lora, LoraWAN, Ethernet, WiFi, GPS, Profibus
External Module(MK)
12 Channels DI + 4 Channels DO

Dimension



Main part dimension(L×W×H): 87.8*72*71.5mm

35mm Din rail installation; Tolerance: ±1mm

Module dimension(L×W×H): 87.8*36*71.5mm

35mm Din rail installation; Tolerance: ±1mm

Current Transformer

Matched with ADW2xx Series

Dimension(mm)
Perforation size (mm)
WHDMNφ1φ2
AKH-0.66/K-∅ 10N
27
44
32
25
36
10
9
AKH-0.66/K-∅ 16N
31
50
36
27
42
16
17
AKH-0.66/K-∅ 24N
39
71
46
36
52
24
23.5
AKH-0.66/K-∅ 36N
42.5
82
58
40
56
36
35




Picture of Current Transformer



Installation



① Main Body of ADW2xx; ② External Module 1(MTL/MK);

③ AWT100-*(NB/2G/4G/Lora/LW Communication)

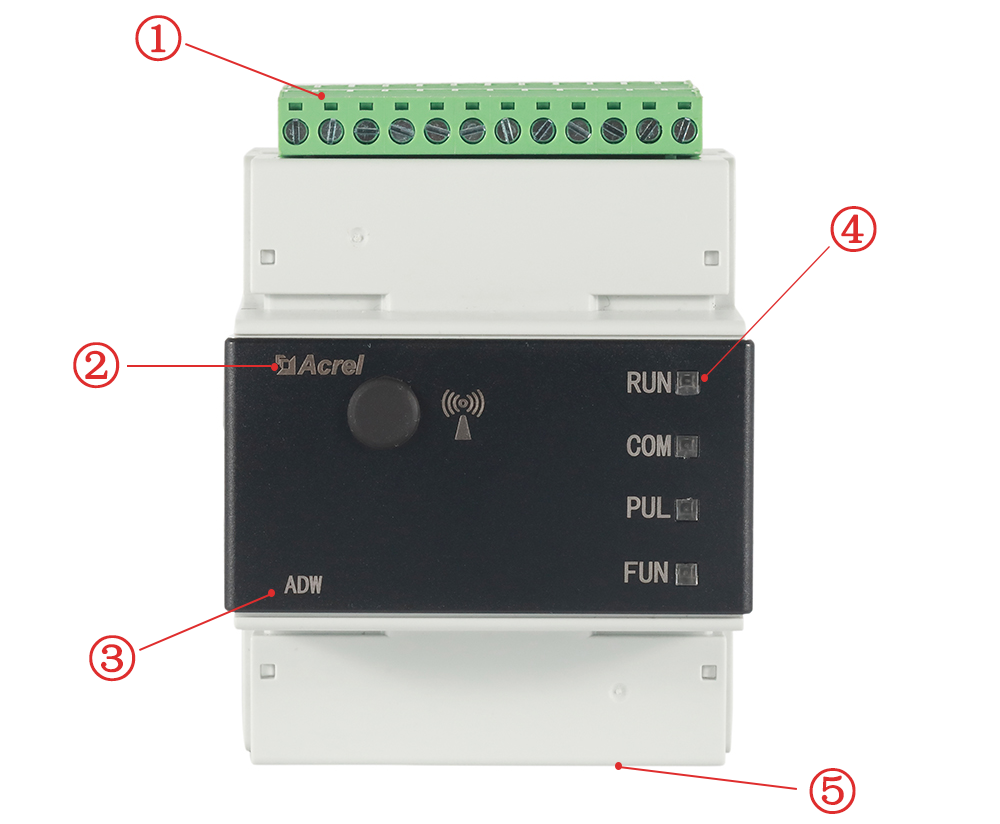

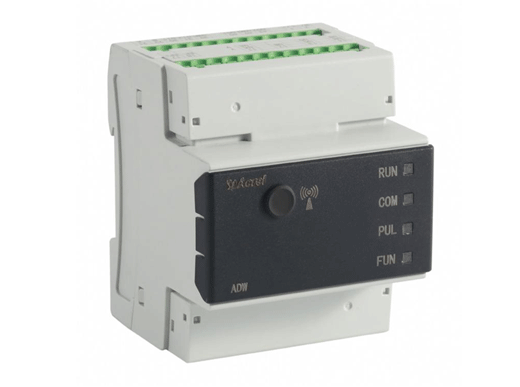

Front Panel



① U / Pulse / DO / DI / Communication / Auxiliary Power Supply

② Brand

③ Model Number

④ Indicator light

⑤ CH1, CH2, CH3, CH4 for current / extension module interface

Network

Package


MINIMUM PACKAGE







MINIMUM PACKAGE


Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.205Kg


WHOLE BOX PACKAGE


Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

8.8kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADW200.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
