AC 0-10A Current Transducer BA05-AI/I BA05-AI/V

BA05-AI/I, BA05-AI/V



● Aperture: 5mm
● Input: AC0-(0.5-10)A
● Analog Output: DC 0-5V/1-5V/0-20mA/4-20mA
● Overload: 1.2 times of rated value
● Power supply: DC12V/DC24V




Description

General

BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

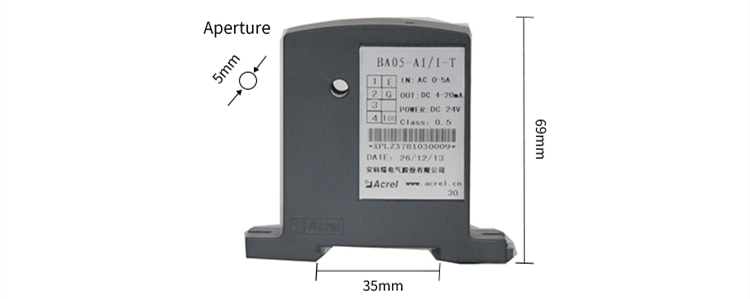

Dimensions

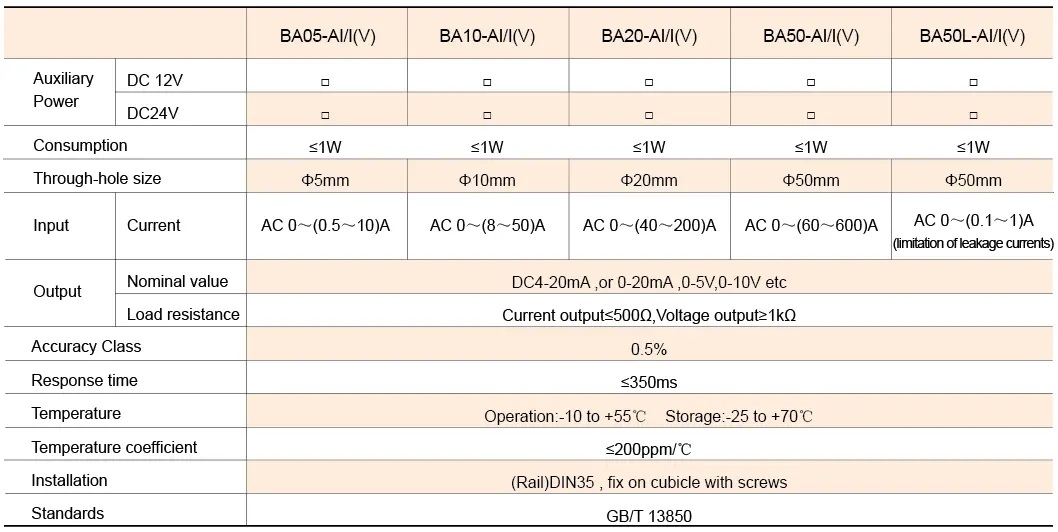

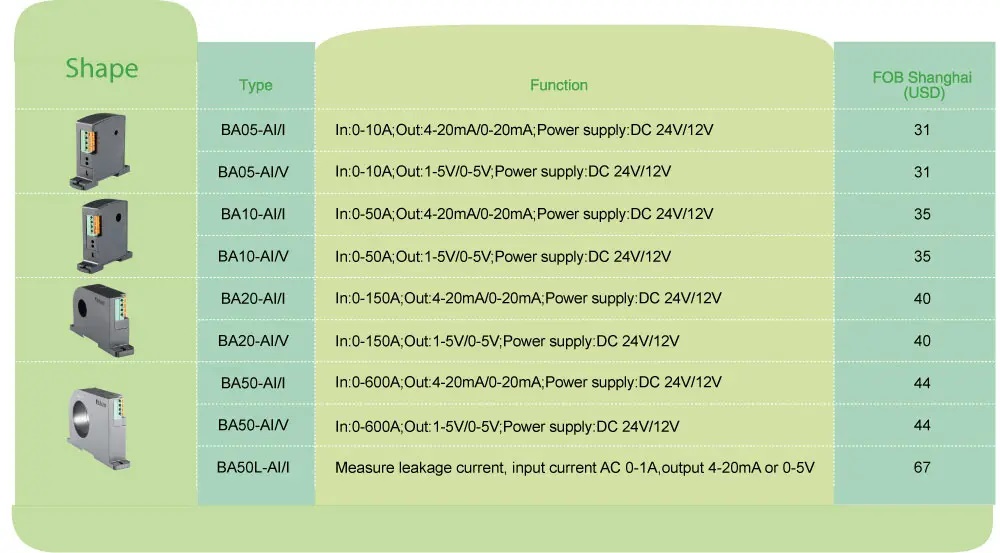

Parameters





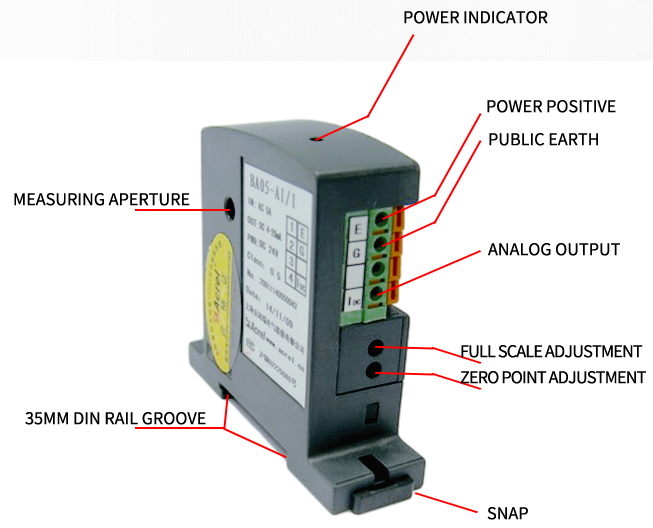

Wiring



  • 1 —— + Positive power supply (not reversed)
  • 2 —— - Power EARTH
  • 3 —— G（Current output negative, which can be shared with the power supply）
  • 4 —— IDC(Current output positive)，VDC(Voltage output positive)


Installation



Screw fixed installation


On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

Din Rail installation


Choose a suitable place to install the standard DIN35mm rail,
and install the BA sensor on the rail


Application





Cement BuildingPetrochemical IndustryIron and Steel MetallurgyRail Traffic
