2-wire alternating current isolator powered by output circuit BM Analog Signal Isolator

BM-AI/IS


● Input: AC 0-1/5A

● Output: DC 4-20mA

● Powered by output

● 35mm Din rail installation



Description

General


The module can modulate maximum 5A AC or CT current directly and output the isolated 4-20mA signal. The working status and output level of circuit are indicated with LED. The module is equipped with surge protection circuit so that it is suitable under severe conditions.

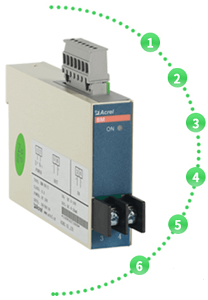

Features




① DC voltage/current input

② Using magnetic isolation technology

③ Response time <400ms

④ TS35 rail installation

⑤ Plug-in terminal

⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level

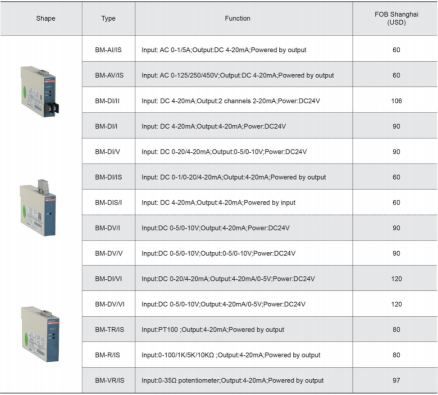

Parameter

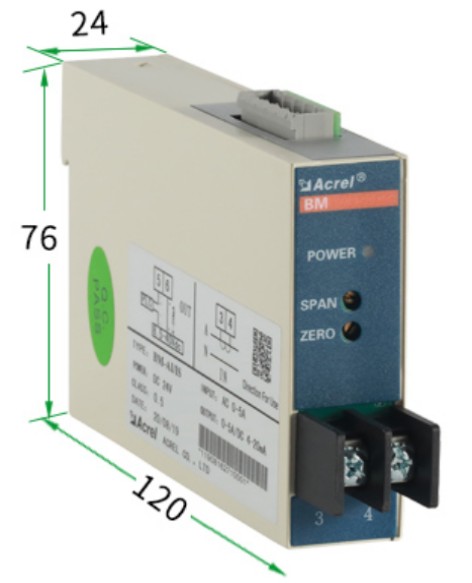

Dimension



Structure

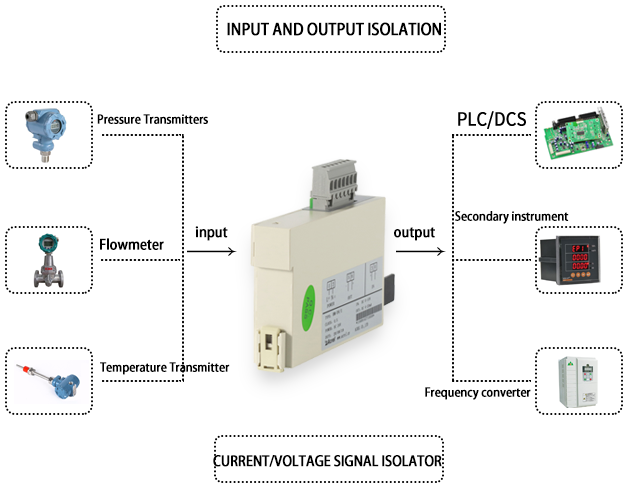

Application






Oil
Chemical Industry
Pharmaceutical
Metallurgy



Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

17*15.5*12.5cm

Package Weight(1 PC)

0.2Kg


WHOLE BOX PACKAGE


Package dimensions(10 PCS)

45.5*26*19.5cm

Package Weight(10 PCS)

3kG


PRODUCT HS CODE


9030339000

ATTENTION !

The above packing and weight data are only refer to model BM-AI/IS.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
