General
BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

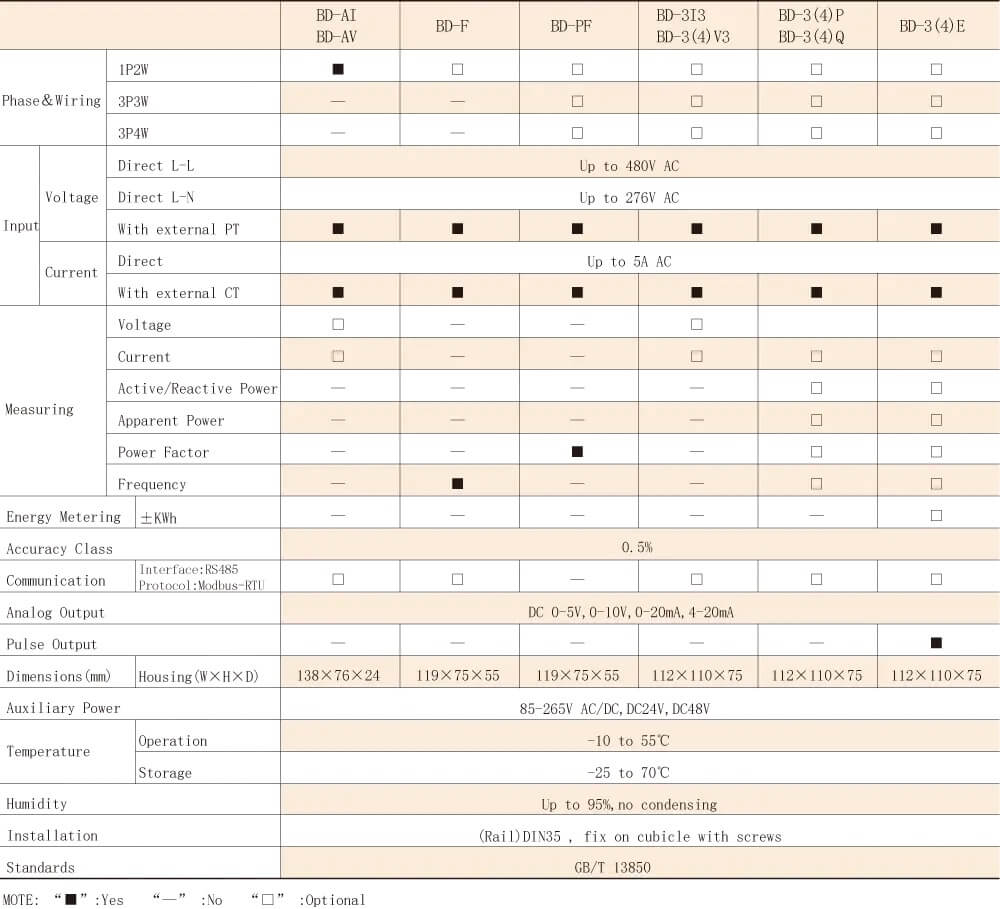

Parameter
Features
2000V
| High Reliability | >300Ω |
|---|
Isolation withstand Voltage
| Strong Anti-interference
| Load bearing capacity
|
The input and output withstand voltage can reach 2000V | Full analog circuit mode is adopted. Effectively suppress the interference in the line. | High input impedance Load resistance range>300Ω |
Dimension
Wiring
Application
|
|  |  |
Date Center
| Building
| Industrial
| Seaport |
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 17*15.5*12.5cm
| Package Weight(1 PC) 0.25Kg
|
WHOLE BOX PACKAGE
| Package dimensions(10 PCS) 45.5*26*19.5cm
| Package Weight(10 PCS) 3.5kG
|
PRODUCT HS CODE
| 9030339000
|
ATTENTION ! The above packing and weight data are only refer to model BD-DI. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
