General
BA50L(Ⅱ)-AI is an AC residual current transformer, which mainly detects the leakage current of the electrical system, can grasp the status of electrical circuits and equipment at any time, and prevent fires and other accidents caused by leakage.

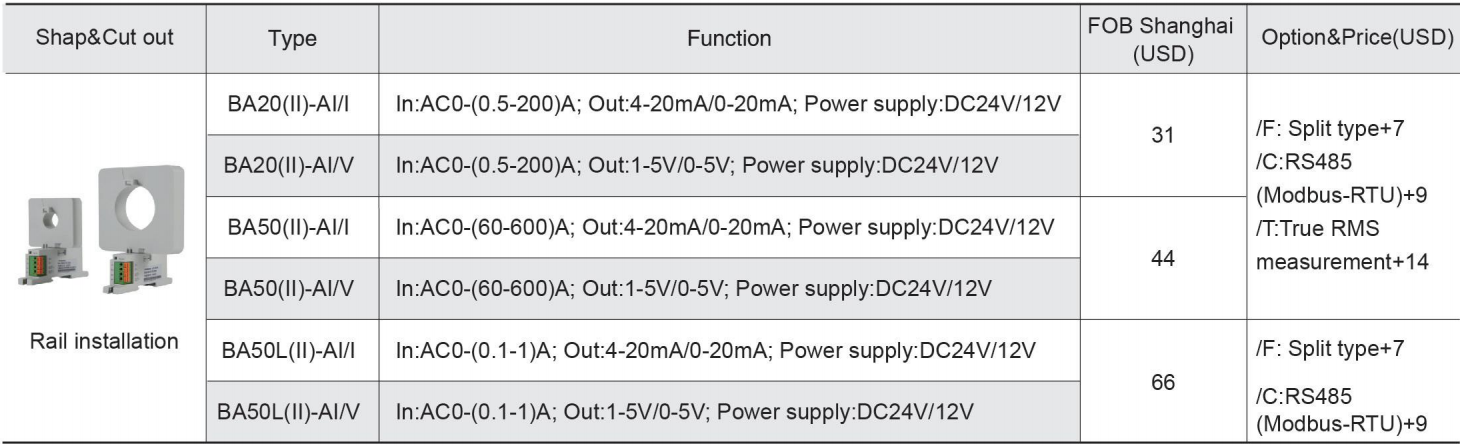

Technical Parameter
Input
| AI——BA20(II)-AI: AC 0~(0.5-200)A BA50(II)-AI: AC 0~(60-600)A BA50L(II)-AI: AC 0~(0.1-1)A |
Output
| I——Direct Current e.g. 4-20mA ; V——Direct Current Voltage e.g. DC0-5V
|
Power Supply
| DC12V or DC24V
|
Measuring Aperture
| 20-φ20mm, 50-φ50mm
|
Communication
| RS485 Modbus-RTU
|
Dimension

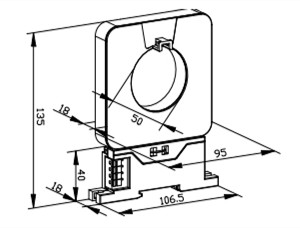

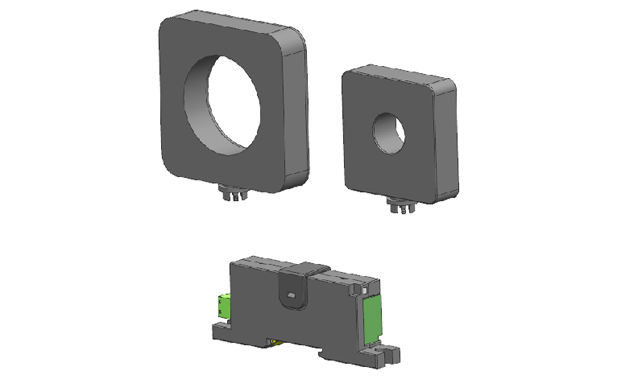

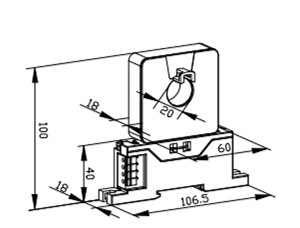

Integrated type
|
|
| BA20(II)-AI/I(V) | BA50(II)-AI/I(V) ; BA50L(II)-AI/I(V)
|

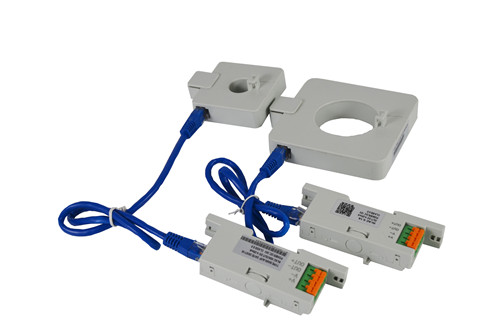

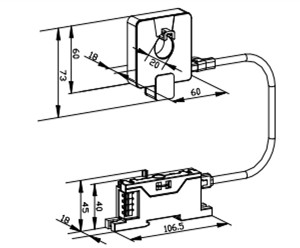

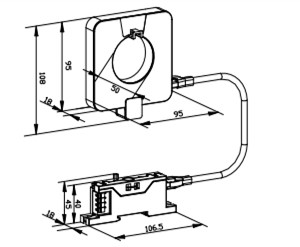

Split type
|
|
BA20(II)-AI/I(V)-F
| BA50(II)-AI/I(V)-F ; BA50L(II)-AI/I(V)-F
|

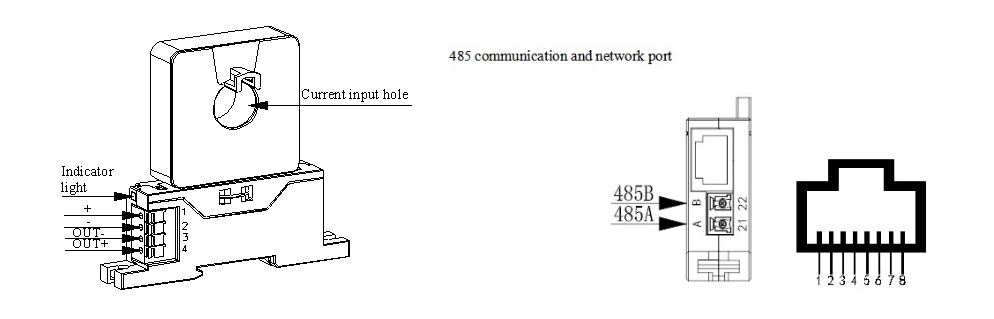

Wiring
Installation Diagram
Integrated Installation
|

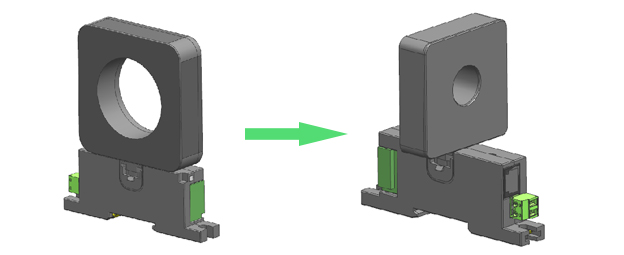

Integrated installation, a rotating structure can be used in the perforated part.
|
|
There are Φ20, Φ50 of hole sizes for your selection.
|
|

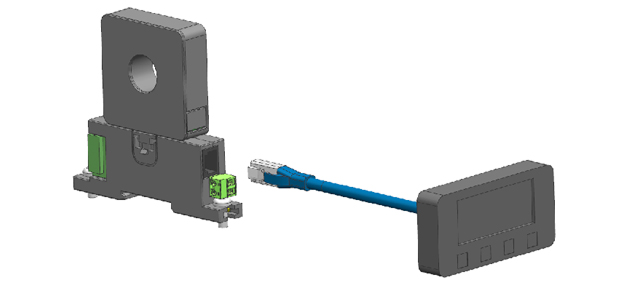

The main body could be connected to the display screen in order to display current and set parameters when integrated installation ( use existing display screen as far as possible).
|

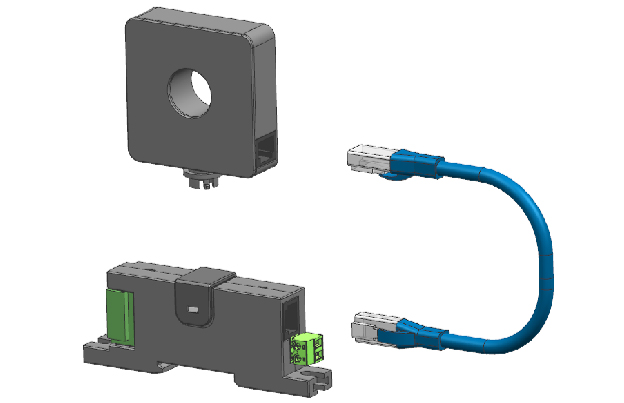

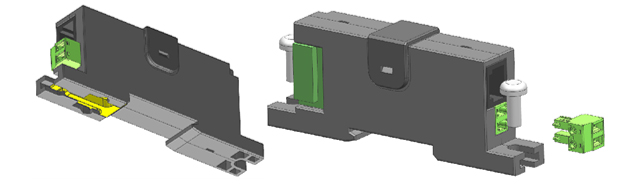

Split-type Installation
|
The current transformer is connected to the main body through network cable when using split-type connection.
|
Other types of Installation
|
TS3 din-rail mounting, or fix it on the cabinet with screws.
|
Application
|
|
|
|
| Cement Building | Petrochemical Industry | Iron and Steel Metallurgy | Rail Traffic |

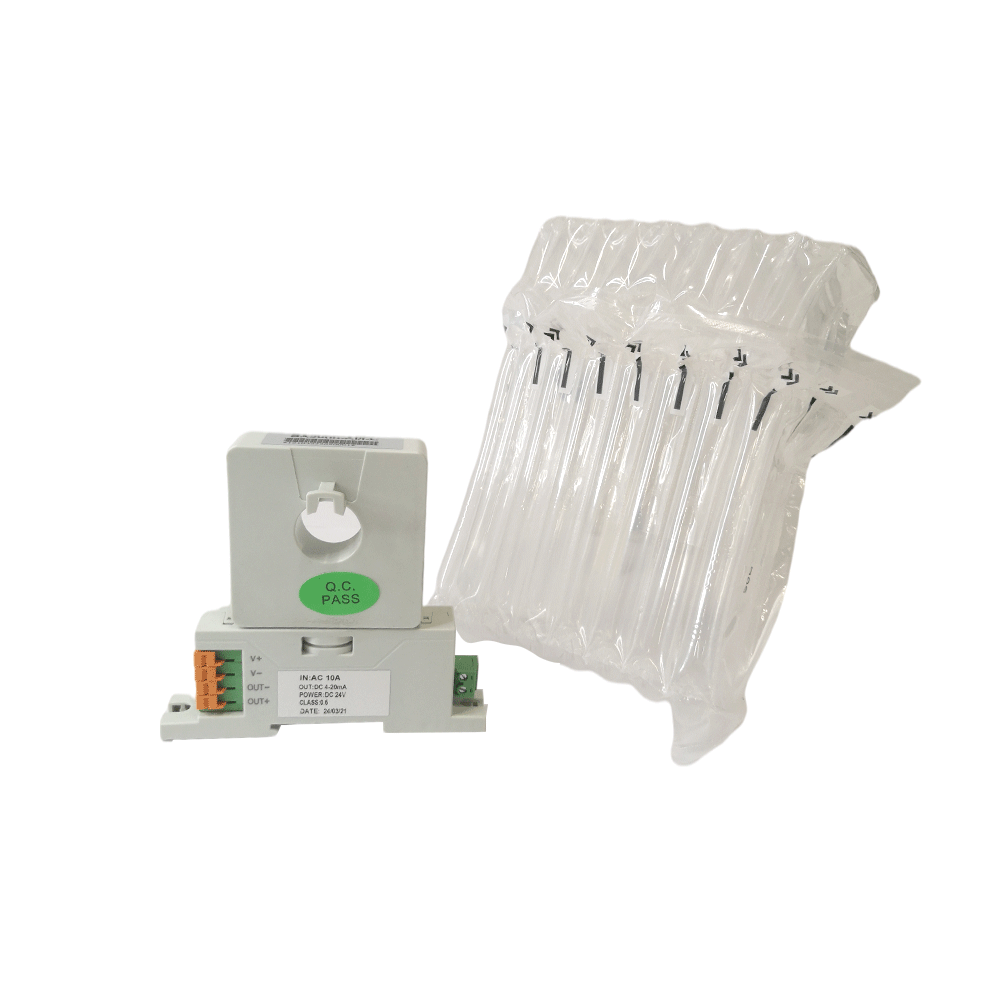

Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 16*12.5*7.5cm
| Package Weight(1 PC) 0.26Kg
|
WHOLE BOX PACKAGE
| Package dimensions(25 PCS) 45.5*26*19.5cm
| Package Weight(25 PCS) 7.5kG
|
PRODUCT HS CODE
| 9030339000
|
ATTENTION ! The above packing and weight data are only refer to model BA50L(II). For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
