AM5SE Medium Voltage Line Protection Relay

AM5SE

● A complete set of protection, related to the application;

● 8 current input, 4 voltage input, 16 DI, 10 DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

● 1 GPS for GPS timing;

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

● Line protection Motor protection Capacitor protection Feeder protection

General

AM5 Series Protection Relay:A complete set of protection, related to the application;8 current input, 4 voltage input, 16 DI, 10 DO.

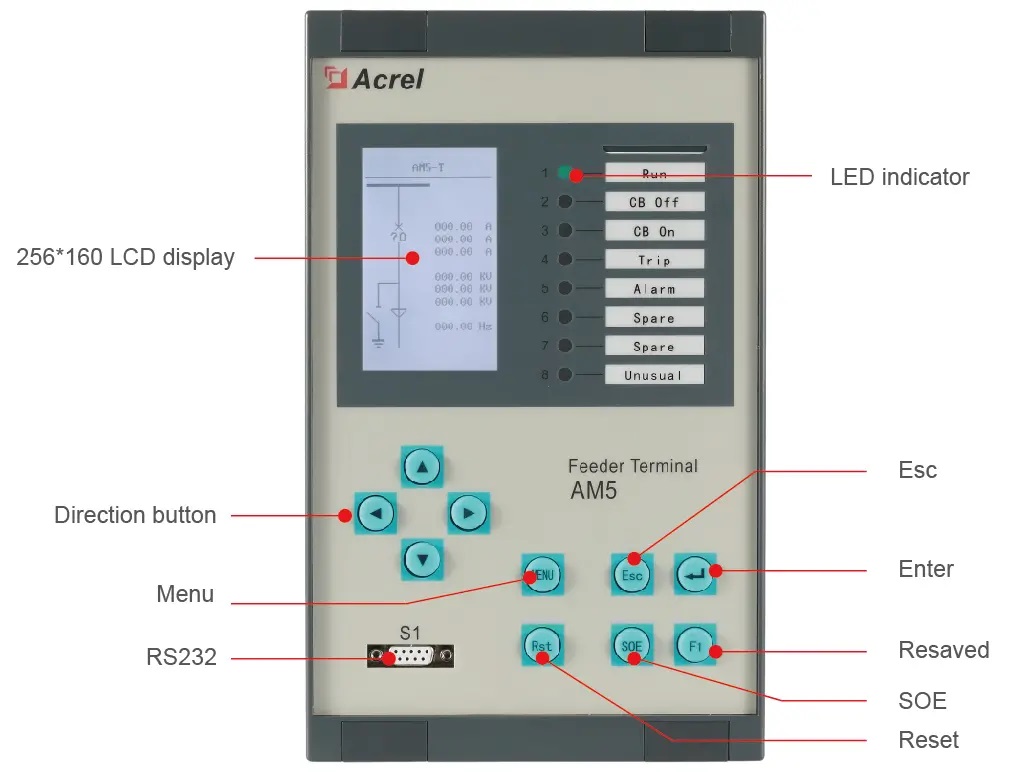

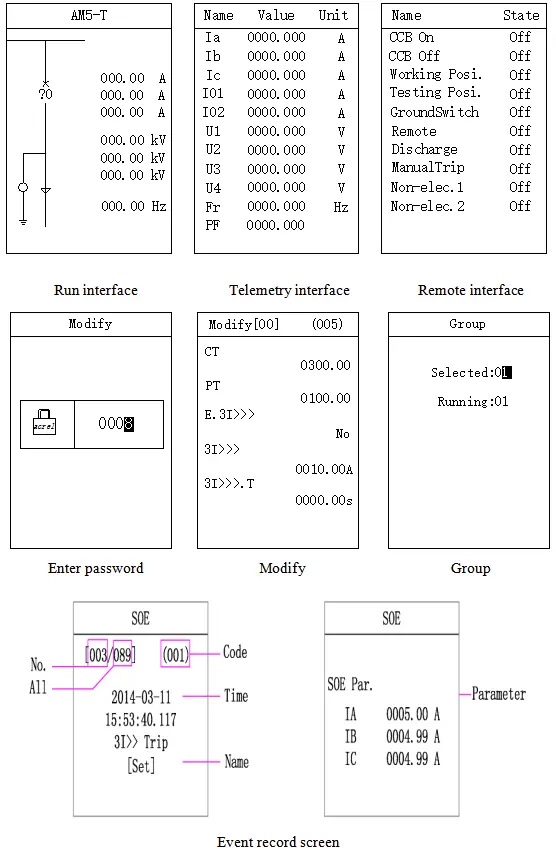

Display

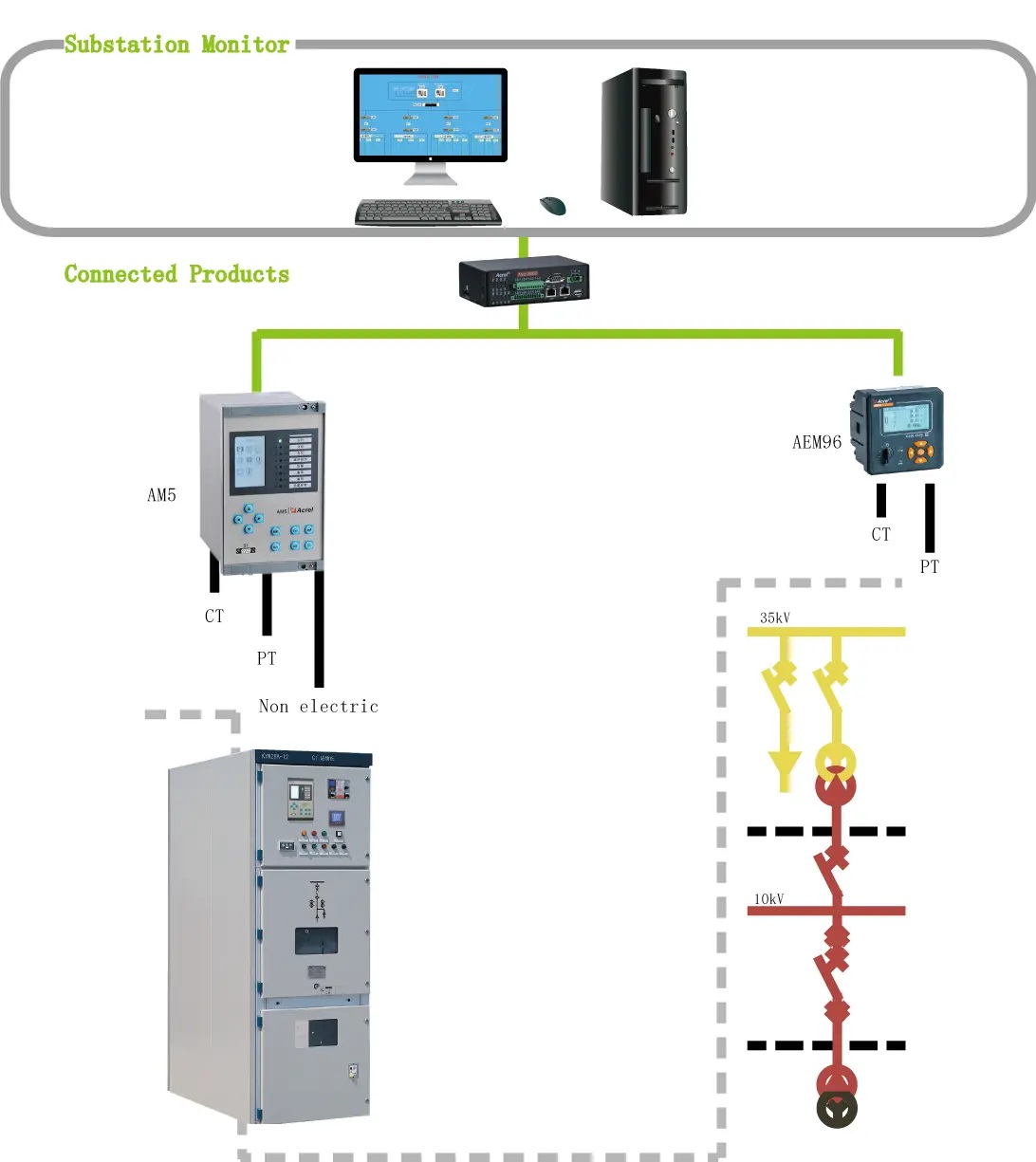

Connection

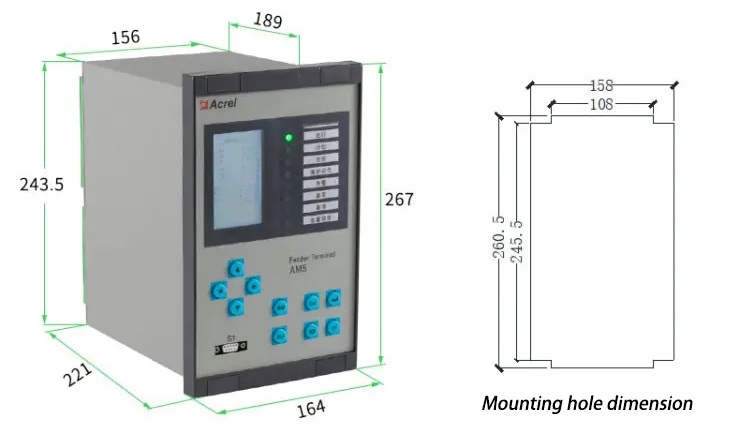

Dimention

Technical Datasheet

	Rated Input	Range	Accuracy	Power Consumption
Power Supply	AC220V/DC220V DC110V,DC48V	Rated inputx(1±20）	------	≤10W（DC）
Voltage Input	AC100V/100/0.3V	1~120V	±0.5%	≤0.5VA single phase
Frequency	50Hz	45-55Hz	±0.1Hz	-------
DI	AC220V/DC220V DC110V,DC48V	Rated inputx(1±20）	-------	≤1W（DC220) Single DI

Function

Package

HS Code: 8536300000
Net Weight: 3kg/pcs
