AKH-0.66P26 Current Transformer

AKH-0.66P26


● maximum measurable current: 60A
● transformation change ratio: 2000:1


Description

General


The AKH-0.66P26 type current transformer is the protective current transformer supporting the AIM-M10 insulation monitor, of which the maximum measurable current is 60A and the transformation ratio is 2000:1. The current transformer is directly fixed inside cabinet by screwing, and the secondary side is leaded out by the terminal, which is convenient to install and use.


Parameter

Input Current0.5mA~50A
Output Current0.025~50A
Temperature Coefficient100 ppm/℃
Operating temperature-35~+70℃
Storage temperature-40~+75℃
Accuracy0.5%

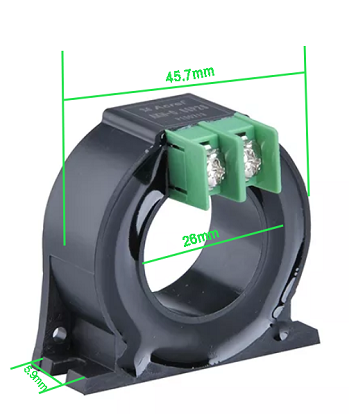

Dimension

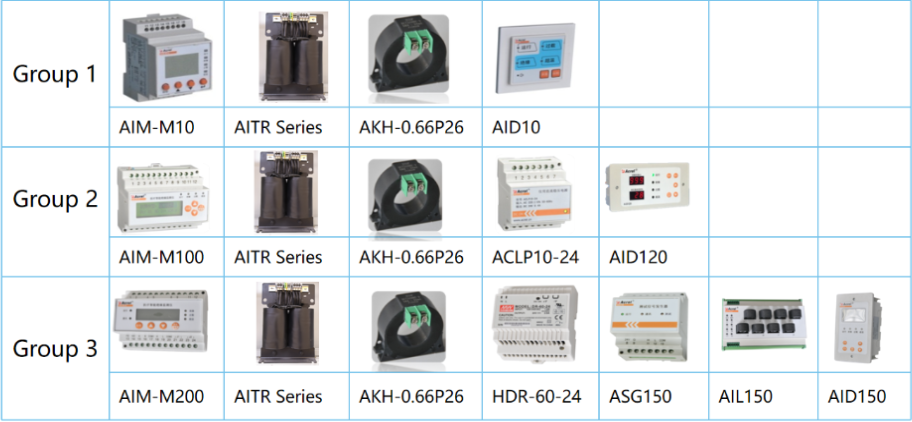

Product Selection
