General

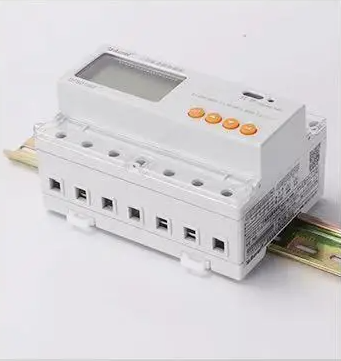

ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.

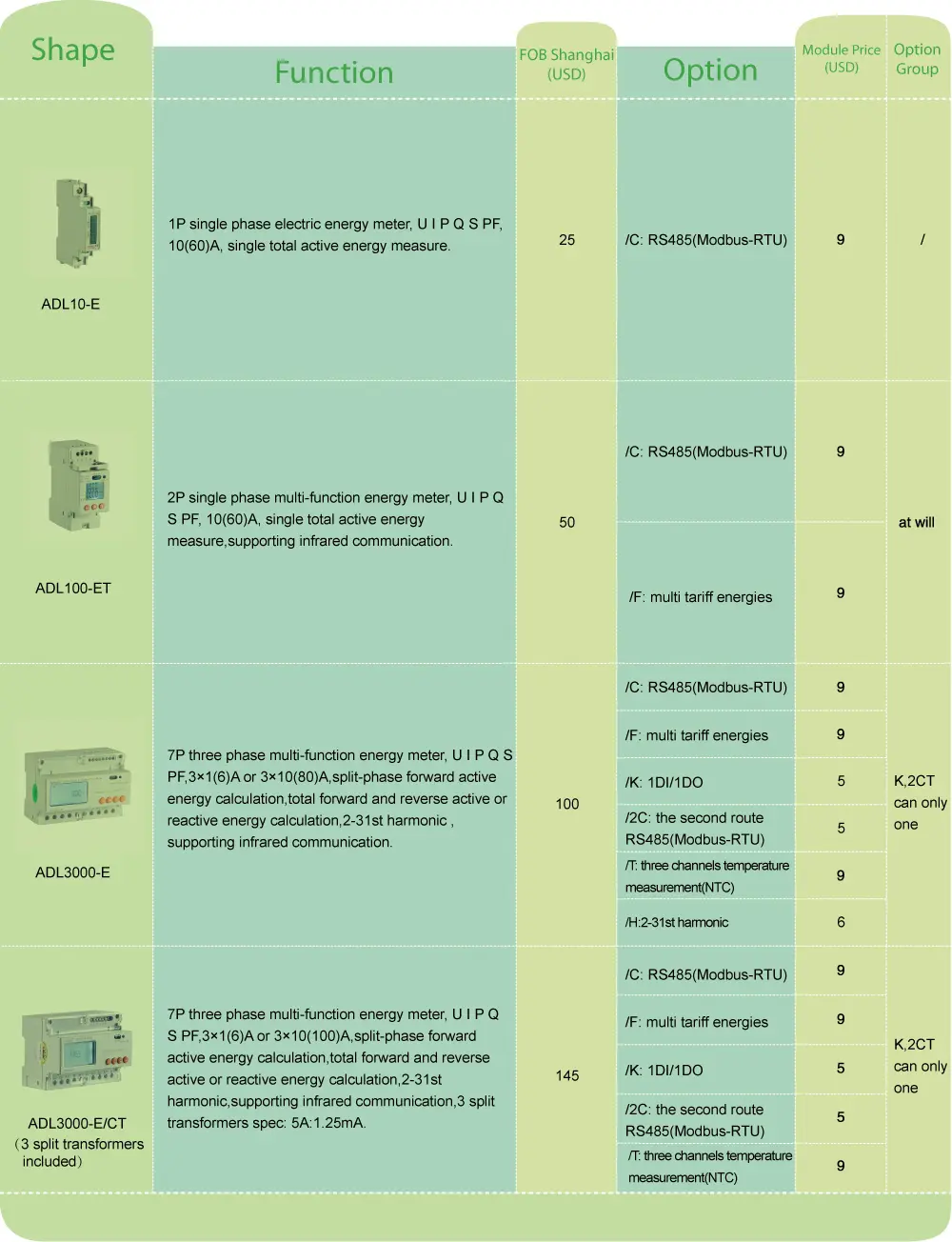

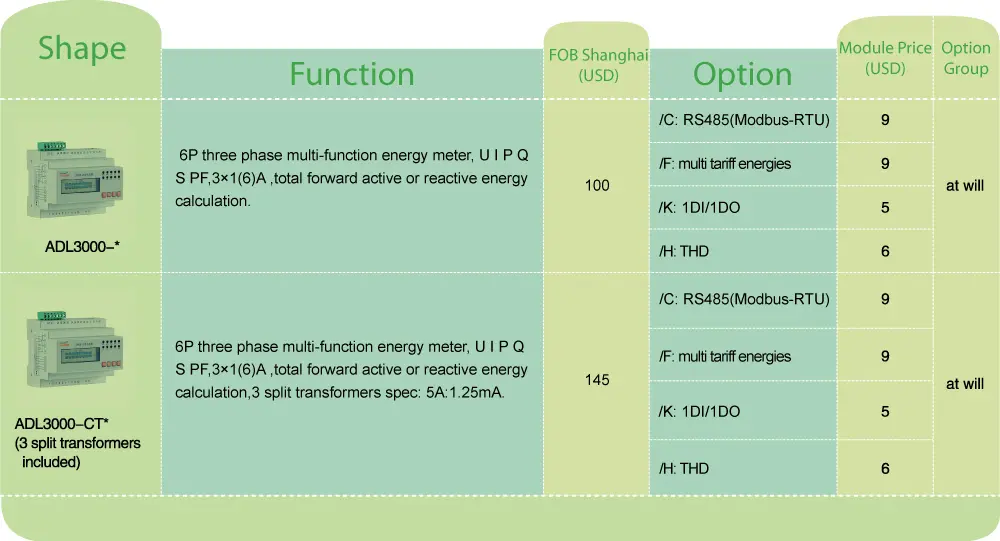

Functions
Communication RS485(Modbus-RTU) Rated U and I AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A Accuracy kWh: Class 0.5S,kVarh:Class 2 Frequency 50/60HZ(Optional),range: 45~65HZ Display 8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh) Pulse output Pulse output kWh/kvarh
|  |
 |

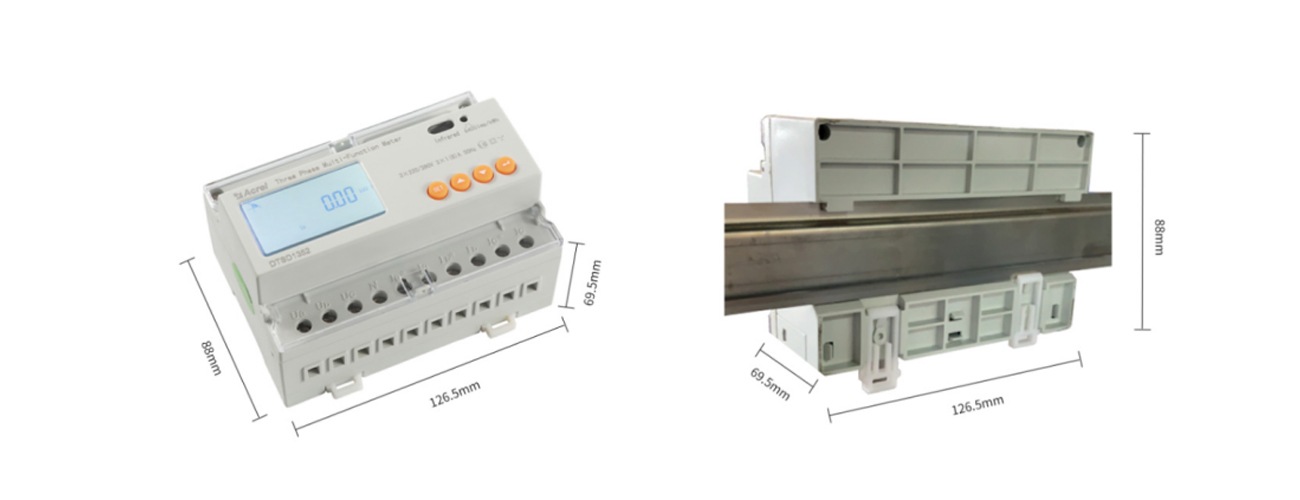

Consumption <10VA(Single phase) Installation DIN 35mm Dimension(L*W*H) 126.5*88*69.5mm Switch relay Magnetic latching relay（ADL3000-E build-in） Clock ≤0.5s/d Starting current Direct connect: 0.004Ib Connect via CT: 0.001ln
|

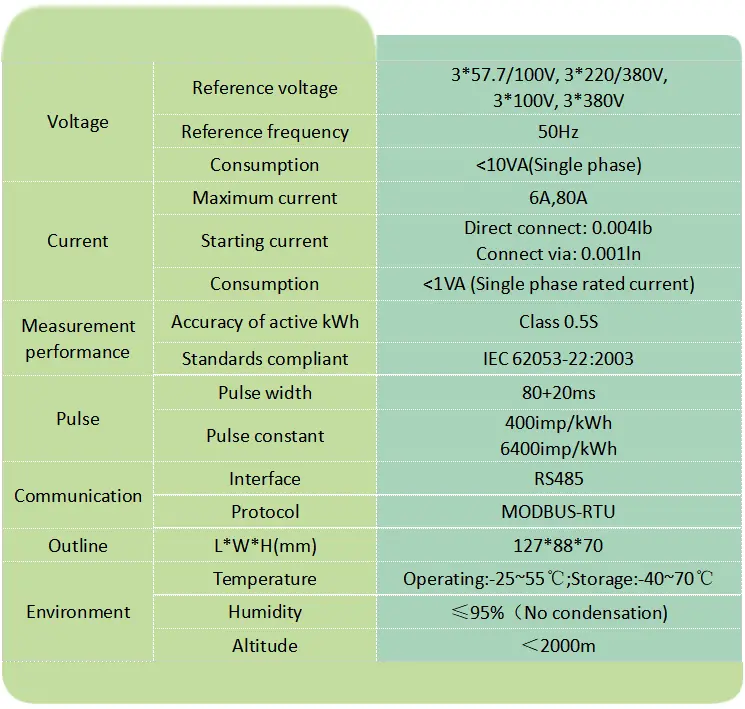

Technical Parameters
Voltage | Reference voltage | 3*57.7/100V,3*220/380V,3*100V,3*380V |
Reference frequency | 50Hz |
Consumption | <10VA(Single phase) |
Current | Maximum current | 6A,80A |
Starting current | Direct connect:0.004lb Connect via:0.001ln |
Consumption | <1VA(Single phase rated current) |
Measurement performance | Accuracy | Class 0.5 |
Standards compliant | IEC 62053-22:2003 |
Pulse | Pulse width | 80+20ms |
Pulse constant | 400imp/kWh 6400imp/kWh |
Communication | Interface | RS485 |
Protocol | Mod bus-RTU |
Temperature range | Work | -25℃~55℃ |
Storage | -40℃~70℃ |
Humidity | ≤95%(No condensation) |
Altitude | <2000m |

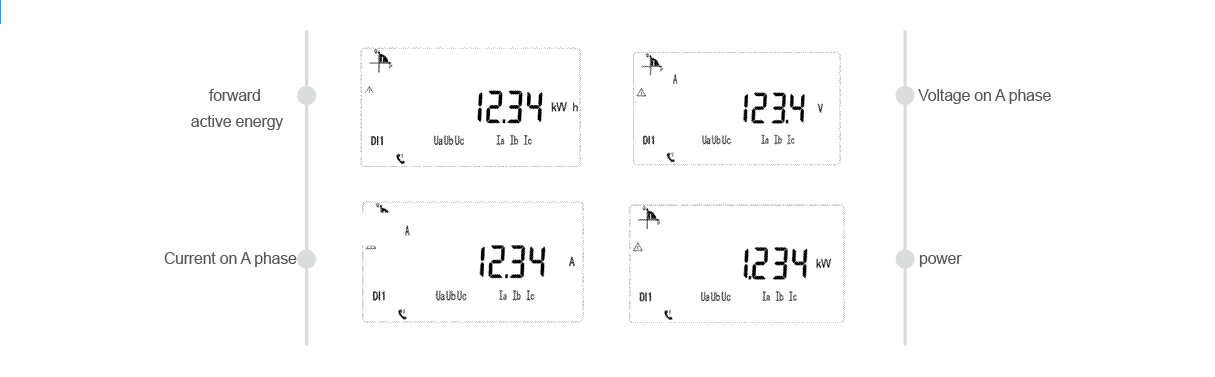

LCD Display

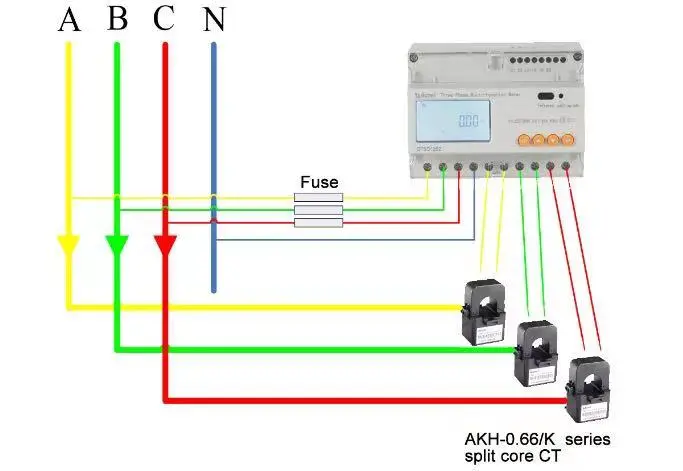

Wiring
|

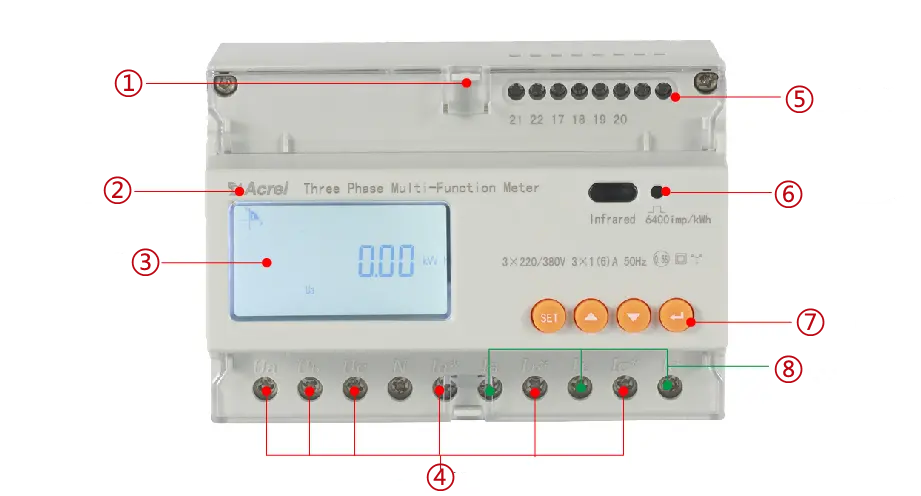

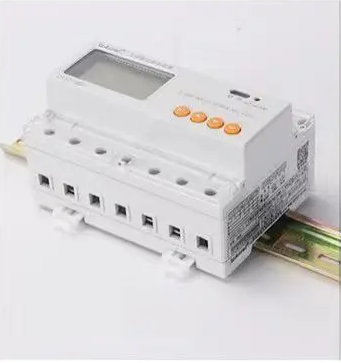

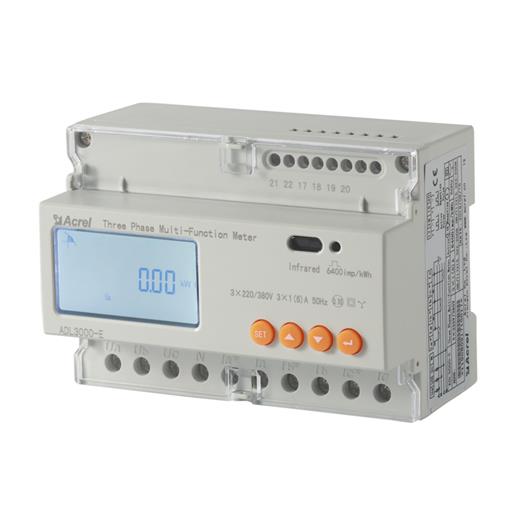

① Seal for Anti theft ② Brand ③ Panel ④ Enter-wire ⑤ Auxiliary function ⑥ Pulse output light ⑦ Button ⑧ Outlet wire |
Secondary Access

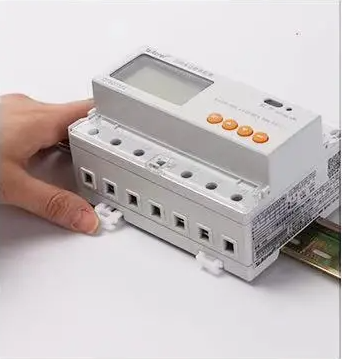

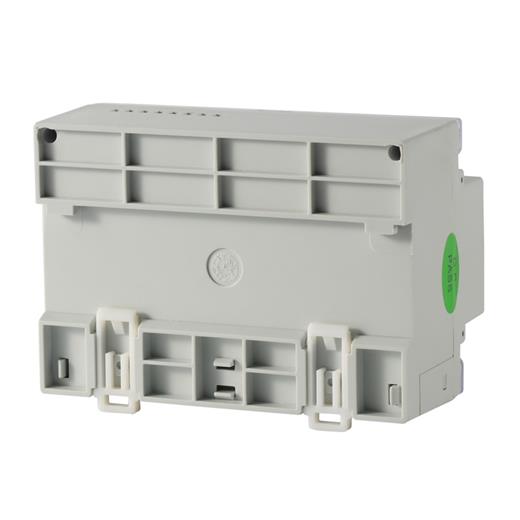

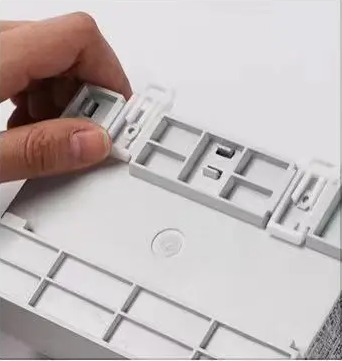

Dimension & Installation

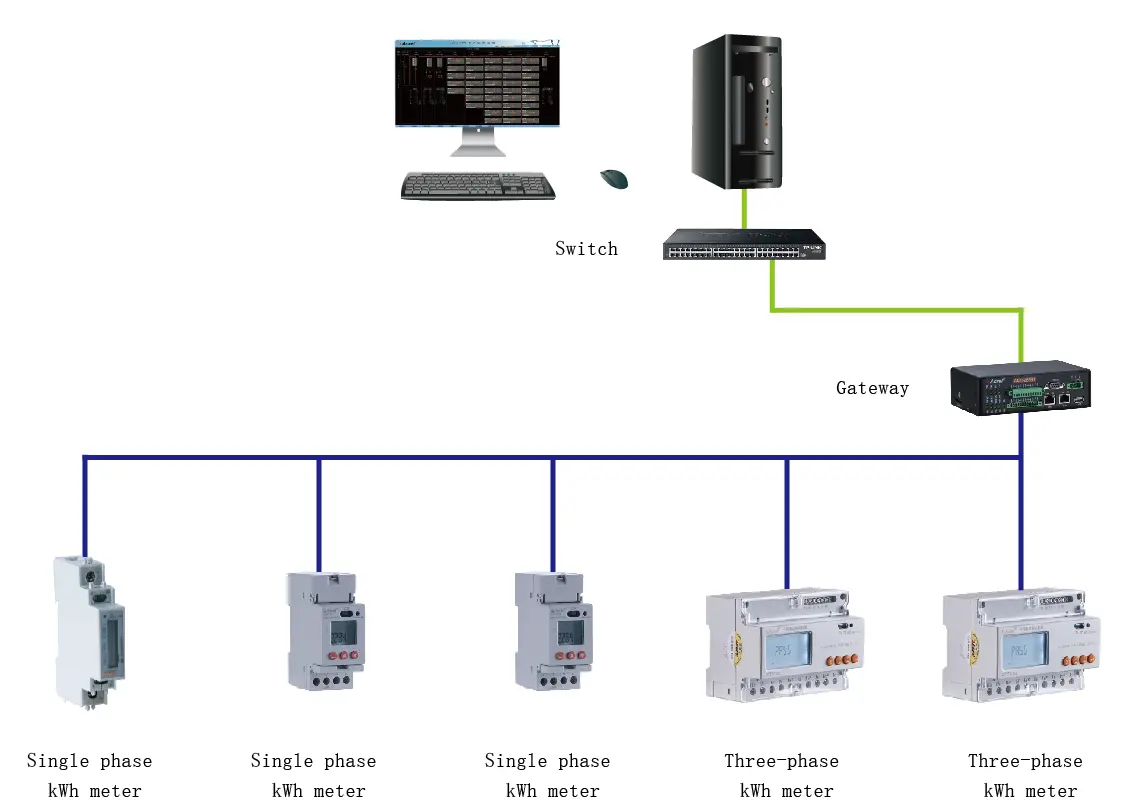

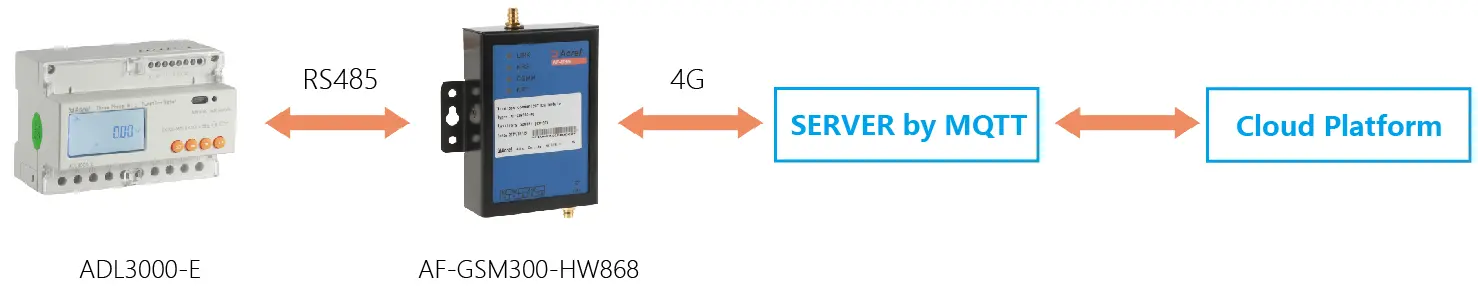

Network
FAQ
Q：I bought a three-phase four-wire meter, can it be wired as three-phase three-wire?
A：Yes, press the key to set the meter to three-phase three-wire mode.
Q：What is the difference between ordinary secondary access and -CT (model external transformer)?
A：Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter). There are CTs available on site to facilitate with No stitch removal.
Q：What are 3*100V、3*57.7/100V、3*380V、3*220/380V?
A：3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Q：Can this meter communicate with PLC?
A：Yes, only need PLC to support RS485 interface, Modbus RTU or DL/T645 protocol.
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 170*150*130mm
| Net Weight(1 PC) 0.254KG
|
WHOLE BOX PACKAGE
| Package dimensions(36 PCS) 540*530*480mm
| Package Weight(36 PCS) 11.836KG
|
PRODUCT HS CODE
| 9028301400
|
ATTENTION ! The above packing and weight data are only refer to model ADL3000-E. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
