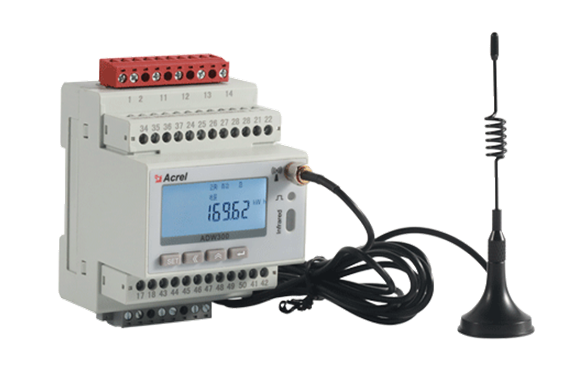

ADW300 IoT wireless Power Meter

ADW300


● Communication: 4G,WiFi,LoRa,LoRaWAN, RS485
● Measurement: 3 Phase voltage, current, power, power factor, etc
● Application: Building, Factory, Smart Grids, DB Room and etc
● Rated Voltage: AC 3*220/380V,3*230/400V
● Rated Current: AC 3x1(6)A
● Standard&Certificate: CE,IEC,LVD



Description

General

ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.




Function




Accuracy

Active power: Class 0.5S
Reactive power: Class 2


Pulse Output

Constant: 6400imp/kWh；


Consumption

<10VA(Single phase)





Dimension (L*W*H)

Panel size (L×W)：82*87.8*71.5 mm


Wireless

Transmission on 470MHz and maximum distance

in open space is 1km; 2G; NB


Frequency: Range: 50~60Hz


Starting current: 2‰ln



Front Panel



① DO / DI

② Brand

③ Model Number

④ Antenna Terminal

⑤ Pulse Output Light

⑥ Infrared Status

⑦ Auxiliary Power Supply

⑧ Temperature / Leakage Current

Wiring

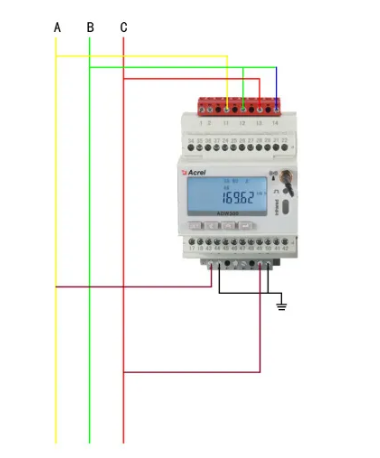

3 Phase 3 Wire

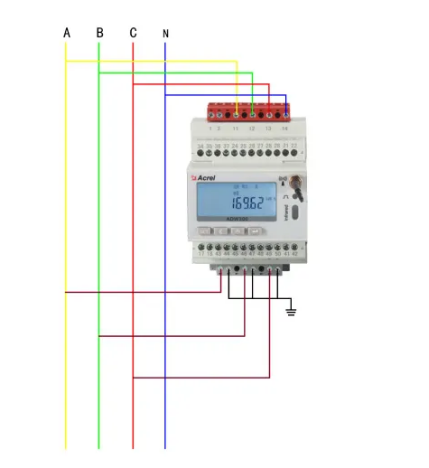

3 Phase 4 Wire

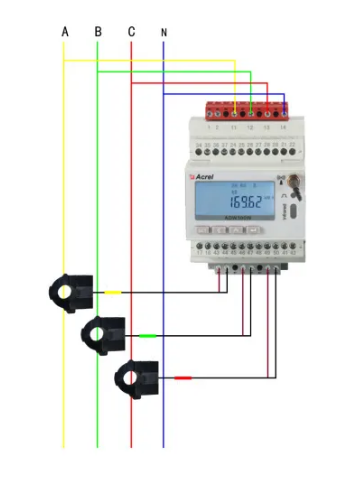

3 Phase 4 Wire with External CT

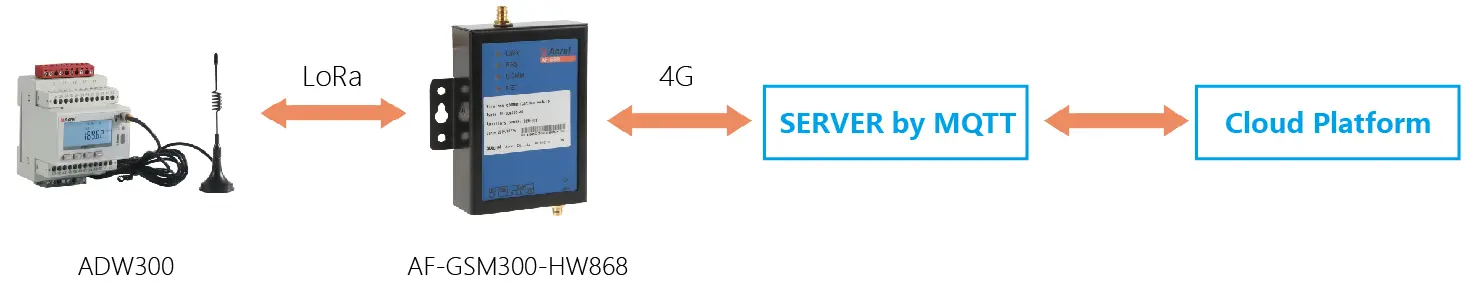

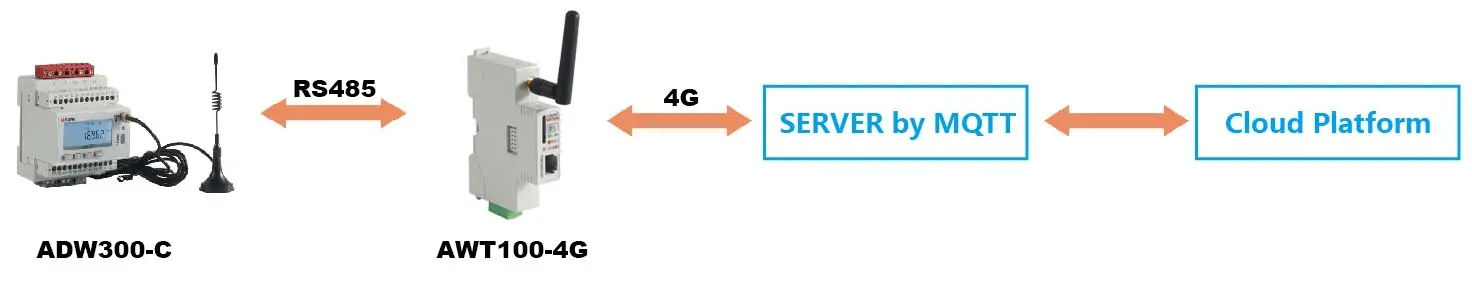

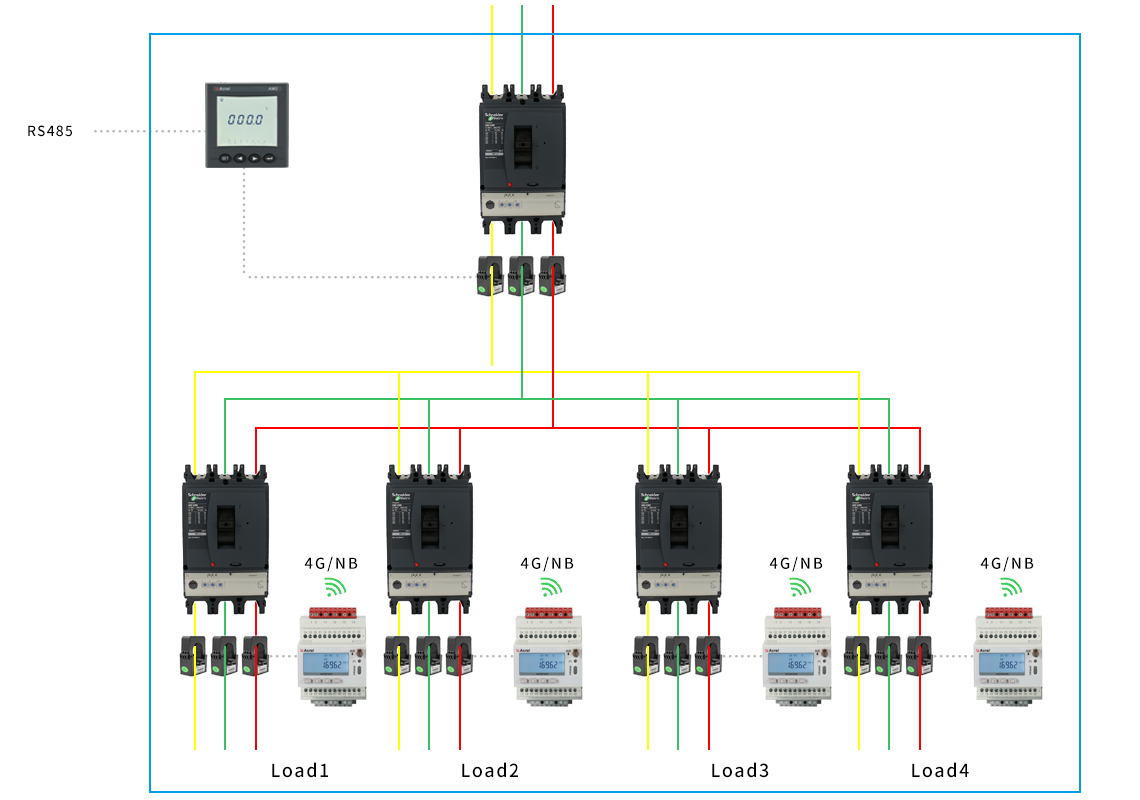

Network







Package


MINIMUM PACKAGE







MINIMUM PACKAGE

Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.233Kg


WHOLE BOX PACKAGE


Package Dimension(36 PCS)

540*530*490mm

Package Weight(36 PCS)

10kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model ADW300.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
