Appearance
Specification
| Model | Shape | Specification | Installation |
| ATE200M |
| 35*35*17mm -50℃~+125℃ Accuracy: ±1℃ Lifetime>5 years 470MHz Open space distance: 150m | Strap Binding |
| ATE200P |
| 62.4*32.4*16mm, φ13.5mm L=330mm -50℃~+125℃ Accuracy: ±0.5℃ Lifetime>5 years 470MHz Open space distance: 150m
| Outdoor Strap Binding |
|
| |
|

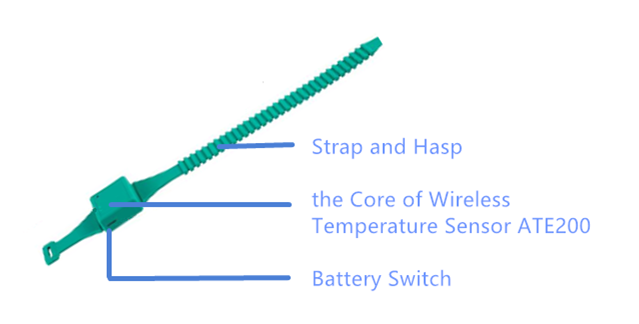

Structure

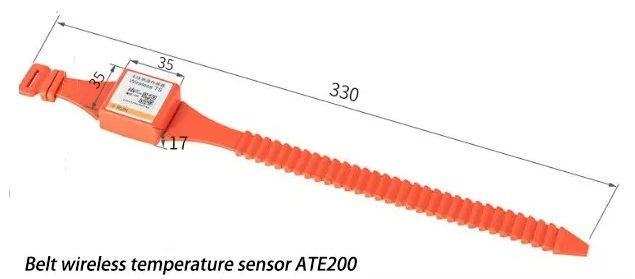

Dimension
Installation
Typical Connection
FAQ
Q: Battery sensors don't display temperature.
A: Possible Reasons:
A.The sensor's power switch is not turned on;
B.The sensor and transceiver are not matched;
C.Turn on the sensor first, and then power on the transceiver, wait about 15MIN. The distance between the sensor and the transceiver is far.
Q: Passive sensors don't display temperature.
A: Possible Reasons:
A.Installing layers of sensor's alloy plates are not enough, at least 3 layers;
B.The sensor and transceiver are not matched;
C.The starting current when the sensor is installed is less than 5A;
D.The distance between the sensor and the transceiver is far.

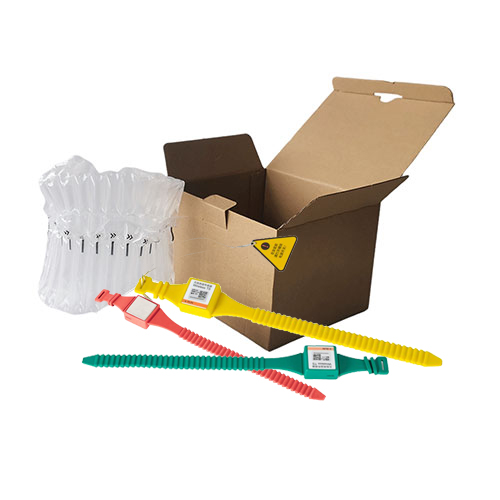

Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(3 PC) 170*150*130mm
| Package Weight(3 PC) 0.49Kg
|
WHOLE BOX PACKAGE
| Package dimensions(108 PCS) 450*240*250mm
| Package Weight(108 PCS) 17.64kG
|
PRODUCT HS CODE
| 9025191010
|
ATTENTION ! The above packing and weight data are only refer to model ATE200. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
