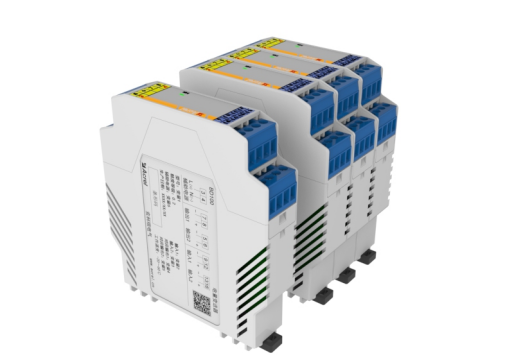

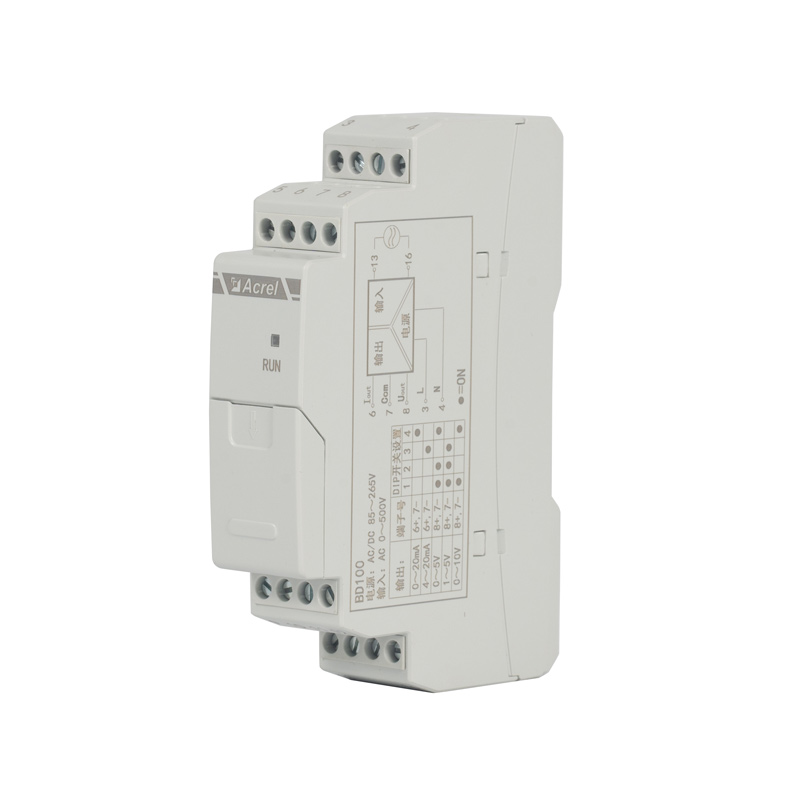

BD100 Electrical Transducer

BD100

- Input Signal:

  AC current, AC voltage, Frequency, AC power, DC current, DC voltage

- Output Signal

  DC0～20mA,DC4～20mA,DC0～5V,DC1～5V,DC0～10V

- Overload: 1.2 times of rated value

- Analog Output DC 0-5V/0-10V/0-20mA/4-20mA


Description

General

BD100 series electrical transducer is a device that converts electrical parameters such as current and voltage in the grid into linear DC analog signals or digital signals through isolation.



Type Explanation






Specifications


Technical parameters

Value




Input signal

AC current: AC0～1A、AC0～5A

AC voltage: AC0～100V、AC0～400V 、AC0～500V

Frequency: 45～65Hz

AC power: AC 0～2500W

DC current: DC 0～1A、DC 0～5A

         DC voltage: DC0～100V、DC0～500V

Output signal


DC0～20mA、DC4～20mA；DC0～5V、DC1～5V、DC0～10V


Power supply

DC24V  range: DC20V～35V；

   AC/DC220V  range: AC/DC85V～265V

Accuracy class

0.2%

Temperature modulus


≤200ppm/℃


Response time


≤350ms



Isolation voltage

Among input//output//power supply

2.0kV/1min, leakage current≤1mA

Work /Storage temperature

-20℃～60℃/-25℃～70℃

Humanity

≤95% (In the place without dew)

ProtectioN

IP20

Weight

About 110g（Shape A）,About 160g（Shape C）

Installation method

TS35 Rail

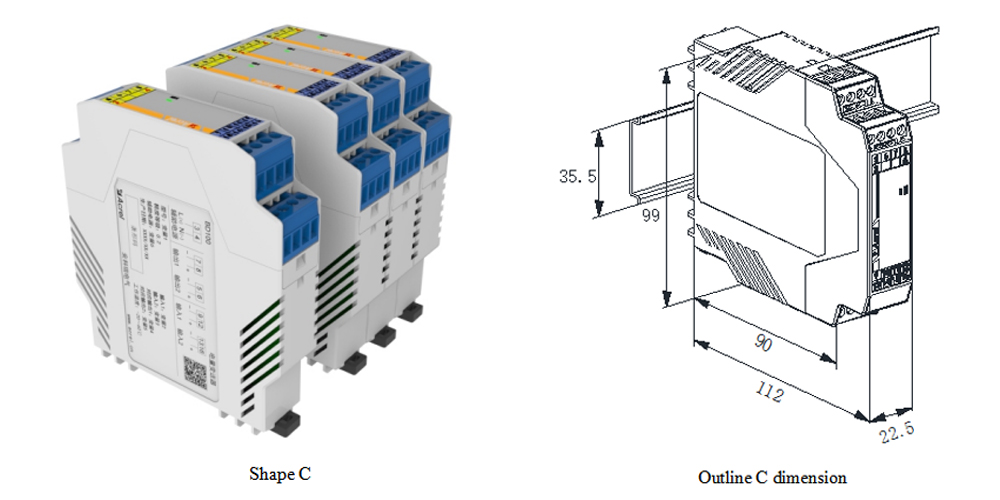

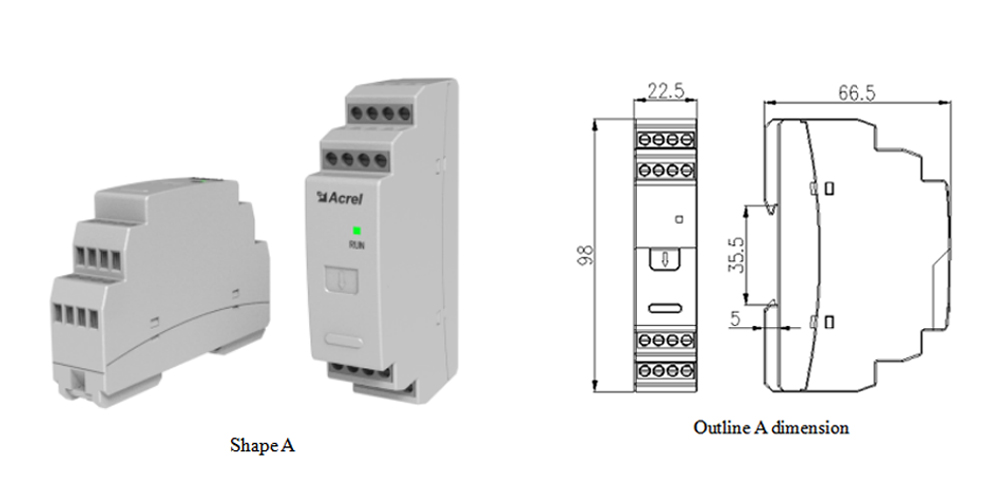

Dimension(Unit:mm)

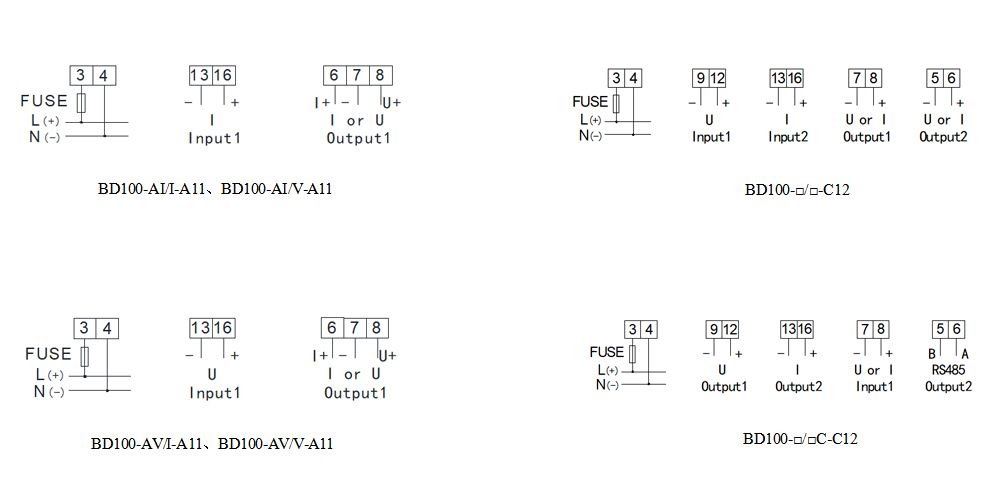

Wiring



Application






Date Center
Building
Industrial
Seaport


Shape

Item

Type

Function

USD





AC Current Transducer

BD100-AI/I-A11

Input:AC 0-1/5A;1 Channel Output:DC 0/4-20mA;

Power:AC/DC 85~265V

45

BD100-AI/V-A11

Input:AC 0-1/5A;1 Channel Output:DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V

45

AC Voltage Transducer

BD100-AV/I-A11

Input:AC 0-100V/500V;1 Channel Output:DC 0/4-20mA;

Power:AC/DC 85~265V

45

BD100-AV/V-A11

Input:AC 0-100V/500V;1 Channel Output:DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V

45

AC Current Transducer

BD100-AI/I-C12

Input:AC 0-1/5A;2 Channels Output:DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-AI/V-C12

Input:AC 0-1/5A;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-AI/IC-C12

Input:AC 0-1/5A;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-AI/VC-C12

Input:AC 0-1/5A;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

AC Voltage Transducer

BD100-AV/I-C12

Input:AC 0-100V/500V;2 Channels Output:DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-AV/V-C12

Input:AC 0-100V/500V;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-AV/IC-C12

Input:AC 0-100V/500V;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-AV/VC-C12

Input:AC 0-100V/500V;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

DC Current Transducer

BD100-DI/I-C12

Input:DC 0-1/5A;2 Channels Output:DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-DI/V-C12

Input:DC 0-1/5A;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-DI/IC-C12

Input:DC 0-1/5A;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-DI/VC-C12

Input:DC 0-1/5A;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

DC Voltage Transducer

BD100-DV/I-C12

Input:DC 0-100V/500V;2 Channels Output:DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-DV/V-C12

Input:DC 0-100V/500V;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-DV/IC-C12

Input:DC 0-100V/500V;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-DV/VC-C12

Input:DC 0-100V/500V;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

AC power transducer

BD100-P/I-C12

Input:AC 0-5A&0-500V;2 Channels Output:DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-P/V-C12

Input:AC 0-5A&0-500V;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-P/IC-C12

Input:AC 0-5A&0-500V;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-P/VC-C12

Input:AC 0-5A&0-500V;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

Frequency transducer

BD100-F/I-C12

Input:AC 0-500V&45-65HZ,2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-F/V-C12

Input:AC 0-500V&45-65HZ;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-F/IC-C12

Input:AC 0-500V&45-65HZ;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-F/VC-C12

Input:AC 0-500V&45-65HZ;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

Power factor transducer

BD100-PF/I-C12

Input:Power factor;2 Channels Output DC 0/4-20mA;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-PF/V-C12

Input:Power factor;2 Channels Output DC 0/1~5V or DC 0/2~10V;

Power:AC/DC 85~265V or DC 20V~35V

72

BD100-PF/IC-C12

Input:Power factor;1 Channel Output DC 0/4-20mA;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58

BD100-PF/VC-C12

Input:Power factor;1 Channel Output DC 0/1~5V or DC 0/2~10V;

1 Channel RS485;Power:AC/DC 85~265V or DC 20V~35V

58
