AC 0-200A Current Transducer BA20-AI/I BA20-AI/V

BA20-AI/I, BA20-AI/V

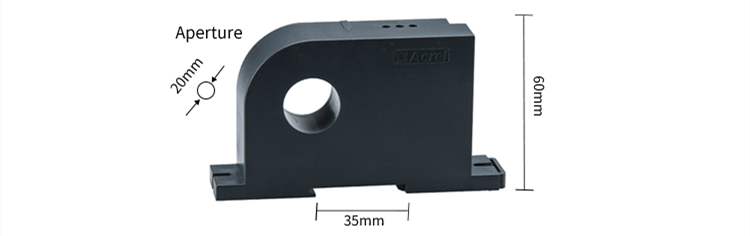

● Aperture: 20mm

● Input: AC0-(40~200)A
● Analog Output: DC 0-5V/1-5V/0-20mA/4-20mA
● Overload: 1.2 times of rated value
● Power supply: DC12V/DC24V



Description

General

BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.


Dimensions


Parameters





Wiring



  • 1 —— + Positive power supply (not reversed)
  • 2 —— - Power EARTH
  • 3 —— G（Current output negative, which can be shared with the power supply）
  • 4 —— IDC(Current output positive)，VDC(Voltage output positive)


Installation



Screw fixed installation


On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

Din Rail installation


Choose a suitable place to install the standard DIN35mm rail,
and install the BA sensor on the rail


Application





Cement BuildingPetrochemical IndustryIron and Steel MetallurgyRail Traffic
