BD-3I3 Three Phase current Transducer

BD-3I3


- Input: Three phase current 5A/1A

- Overload: 1.2 times of rated value

- Analog Output DC 0-5V/0-10V/0-20mA/4-20mA


Description

General

BD-3I3 series Electricity Transducer can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.

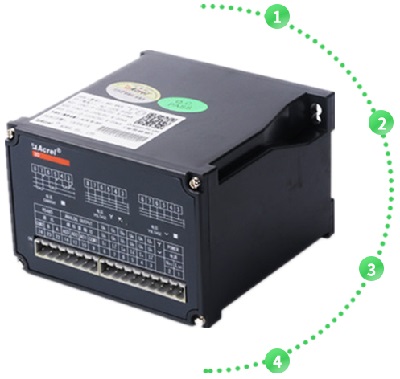

Intelligent Matching








① Record storage analog output record

② Provide analog output signal to PLC

③ Provide analog output to frequency converter

④ Provide analog output for digital display meter

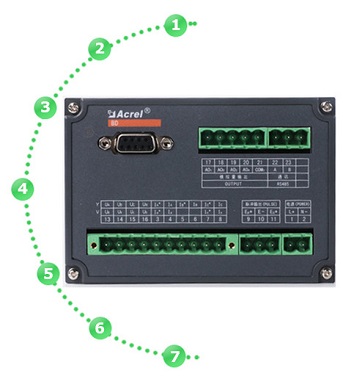

Features


① The measuring transmitter is designed to convert AC electric signal into analog signal or digital signal in accordance with GB / T 13850

② High accuracy class: 0.5

③ Full electric parameter measurement, freely combined transmission output type
④ The true RMS measurement is suitable for occasions with large harmonics, voltage and current waveform distortion and other harsh environments
⑤ It can be worked with RS485 communication interface and connect on the same 485 bus with the control module of other manufacturers, which is convenient for
computer programming. Users can easily build their own measurement and control system
⑥ It can be worked with external display module, and the customer can directly change the input range and transmission type on site
⑦ Optional transformer built-in perforated installation type, convenient for construction wiring and cost saving

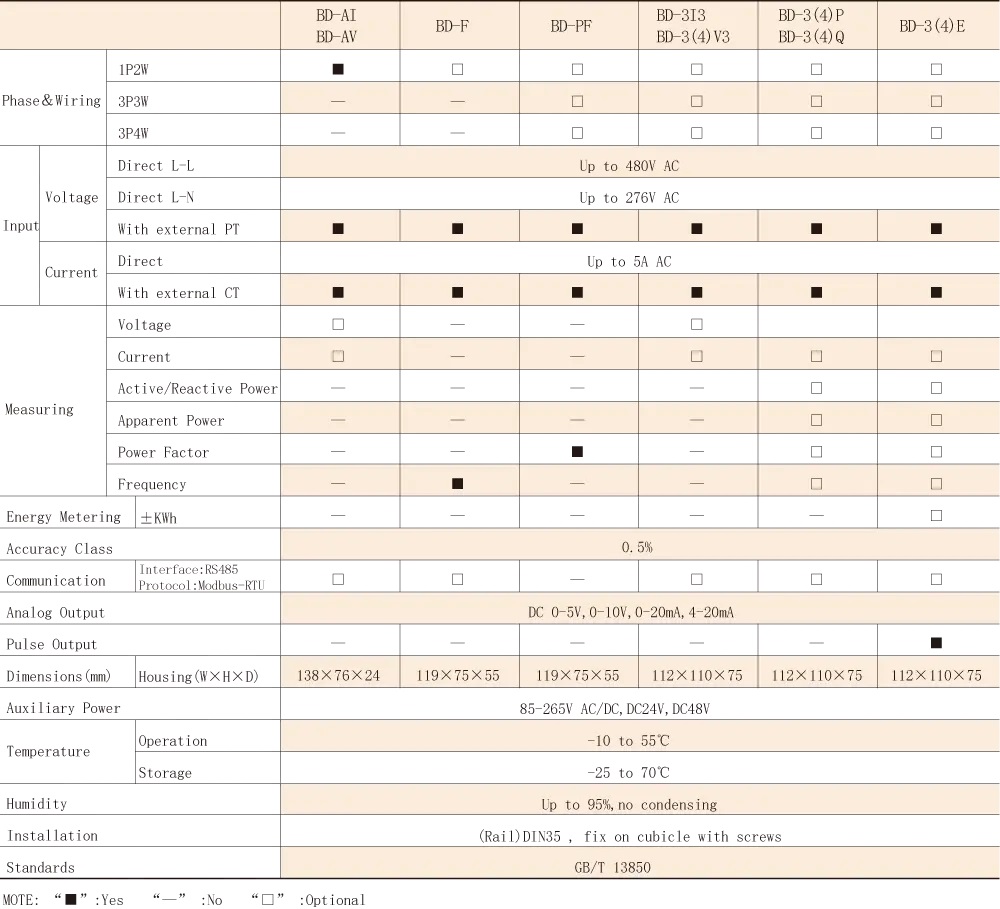

Specifications



Application






Date Center
Building
Industrial
Seaport

Package



MINIMUM PACKAGE





MINIMUM PACKAGE


Package dimensions(1 PC)

17*15.5*12.5cm

Package Weight(1 PC)

0.55Kg


WHOLE BOX PACKAGE


Package dimensions(4 PCS)

45.5*26*19.5cm

Package Weight(4 PCS)

3.2kG


PRODUCT HS CODE


9030339000

ATTENTION !

The above packing and weight data are only refer to model BD-3I3.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
