Thermal resistance isolator BM Analog Signal Isolator

BM-TR/IS



● Input: PT100

● Output: 4-20mA

● Powered by output

● 35mm Din rail installation




Description

General

The module receives inputs from RTD and outputs 2kV-isolated signals 4-20mA proportionally. It is equipped with surge protection circuit so that it is suitable under severe conditions.


Features



① DC voltage/current input


② Using magnetic isolation technology


③ Response time <400ms


④ TS35 rail installation


⑤ Plug-in terminal


⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level

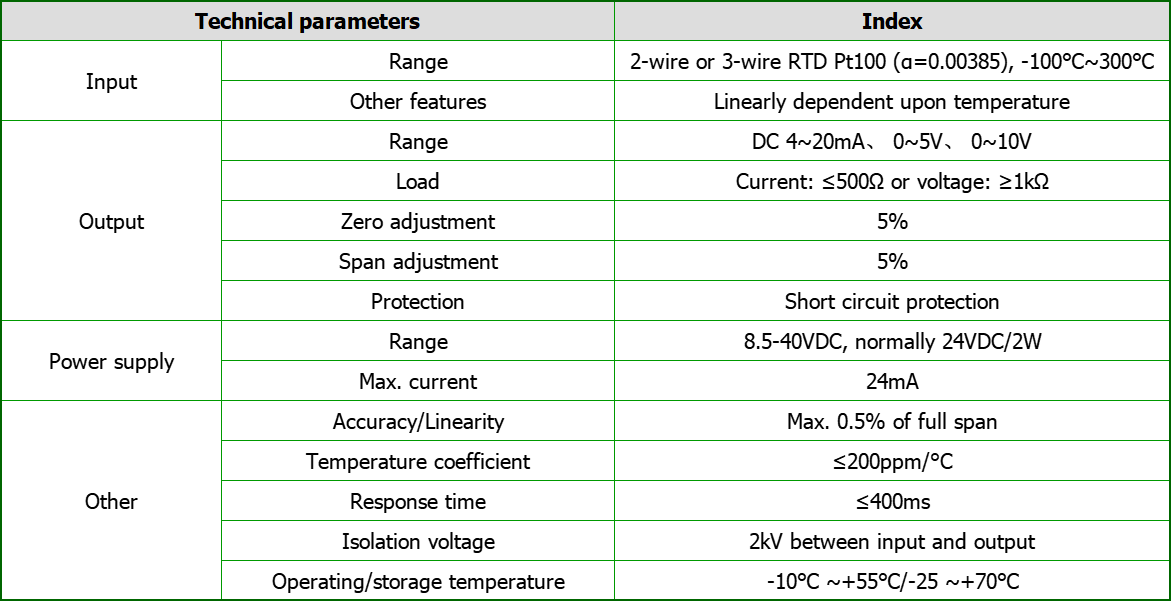

Parameter

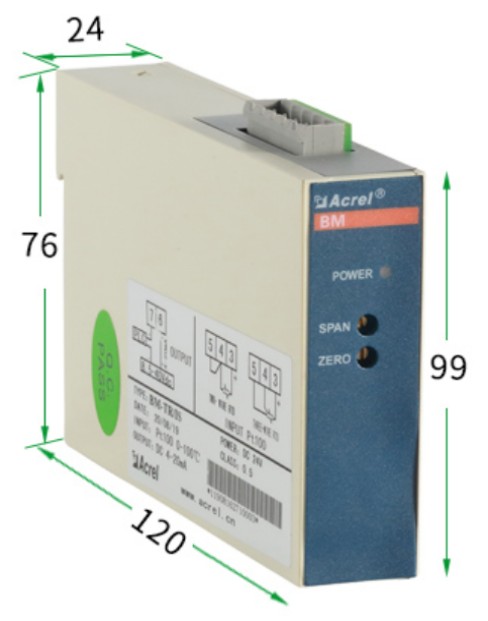

Dimension


Structure



Application





Oil
Chemical Industry
Pharmaceutical
Metallurgy


Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

17*15.5*12.5cm

Package Weight(1 PC)

0.2Kg


WHOLE BOX PACKAGE


Package dimensions(10 PCS)

45.5*26*19.5cm

Package Weight(10 PCS)

3kG


PRODUCT HS CODE


 9030339000

ATTENTION !

The above packing and weight data are only refer to model BM-TR/IS.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
