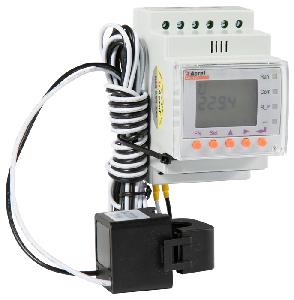

ACR10R-DxxTE Single Phase Solar Inverter Energy Meter

ACR10R-DxxTE


● Single phase two wire

● Rated voltage: AC 120V/208V,240V(88%~110%)

● Rated voltage: AC 100V or 400V

● Rated current:AC 80A,120A, 200A, 300A

● RS485(MODBUS-RTU)

● Certificate: CE


Description

General


The guide-rail harmonic meter with external roche coil and open type mutual inductor is suitable for energy saving renovation projects in high energy consumption industries such as smelting,steel,electric welding,semiconductor,etc.


Function



Accuracy

Voltage: 0.2, Current, Power,Active energy: 0.5,

Frequency:0.01Hz,Reactive energy:1


Frequency

45~65Hz


Power consumption

≤10VAp>


Power supply output

AC85~265V or DC100~350V


Input consumption

Less than 0.2VA



Dimension(L*W*H)

85*74*54mm


Installation

DIN 35mm



Dimension




Display



Wiring

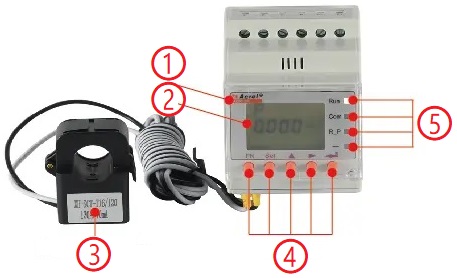

① Brand / Model


② Panel

③ Current Transformer

④ Button

⑤ Indictor Lights



Connection
