4-wire isolator BM Analog Signal Isolator

BM-DV/I



● Input: DC 0-5/0-10V

● Output: 4-20mA

● Power: DC 24V

● 35mm Din rail installation




Description

General

4-wire isolator provides 2kV 3-port isolation for all direct current and voltage signals and eliminates the earth return. It can be equipped with power supply of various standards.



Features



① DC voltage/current input

② Using magnetic isolation technology
③ Response time <400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level

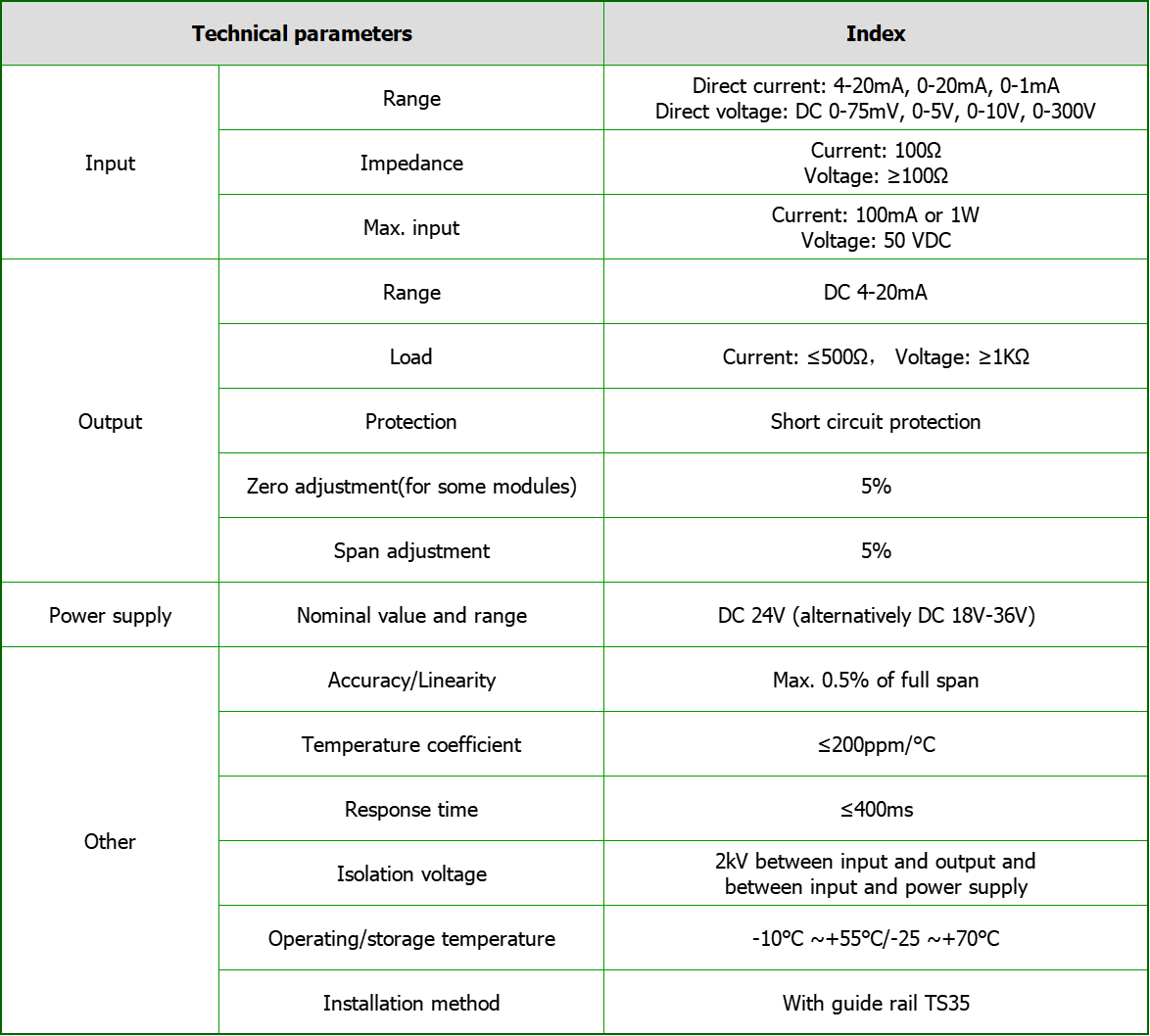

Parameter

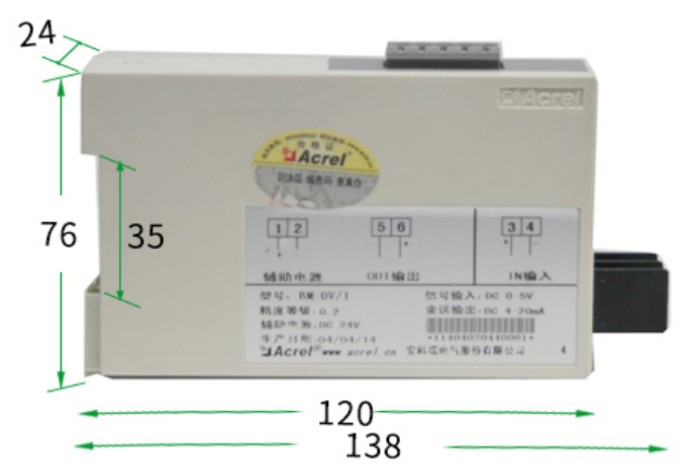

Dimension


Structure



Application





Oil
Chemical Industry
Pharmaceutical
Metallurgy


Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

17*15.5*12.5cm

Package Weight(1 PC)

0.2Kg


WHOLE BOX PACKAGE


Package dimensions(10 PCS)

45.5*26*19.5cm

Package Weight(10 PCS)

3kG


PRODUCT HS CODE


 9030339000

ATTENTION !

The above packing and weight data are only refer to model BM-DV/I.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
