Hall Sensor Solution

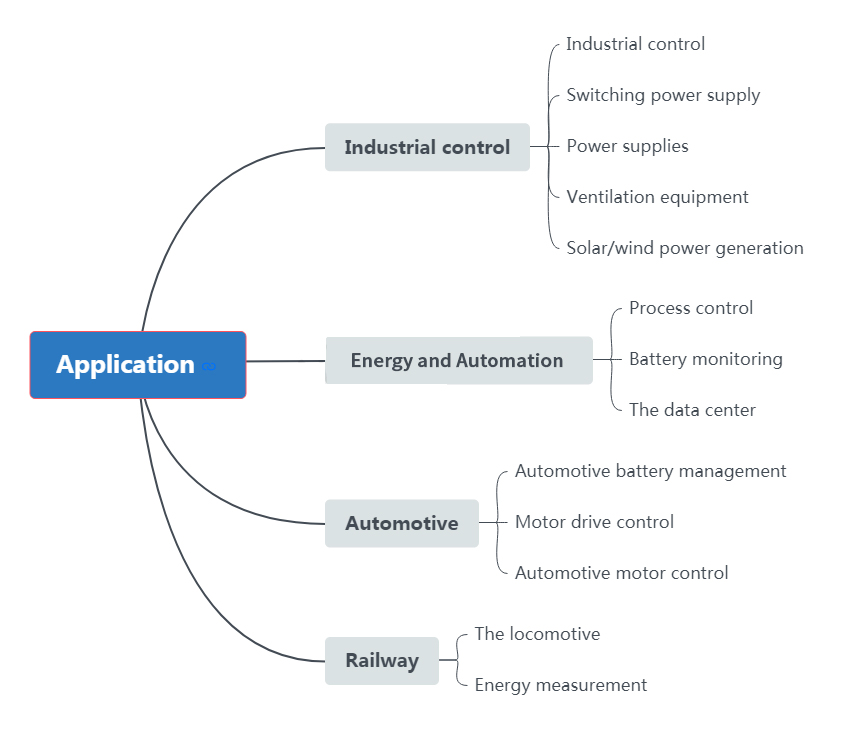

Application

Classification

Hall sensors are divided into three categories according to the principle: open loop Hall current sensor, closed loop Hall current sensor, and Hall voltage sensor.

Type
Rated Input
Rated Output
Power Supply
Accuracy
Open loop Hall sensor
50A～20000A
5V/4～20mA
±15V/24V
Class 1
Closed-loop Hall sensor
10A～2000A
50mA/100mA/200mA
±15V
Class 0.5
Hall voltage transducer
100V～5000V
5V/50mA
15V/24V
Cass 0.5

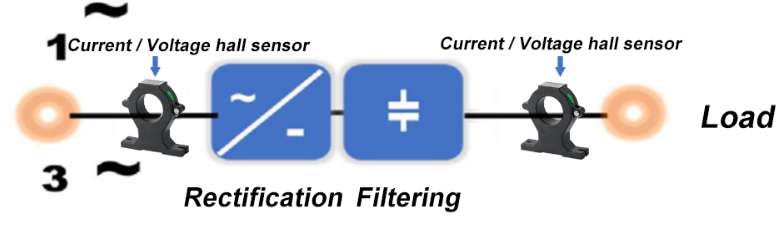

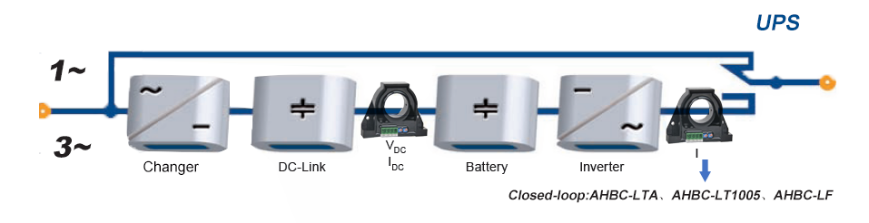

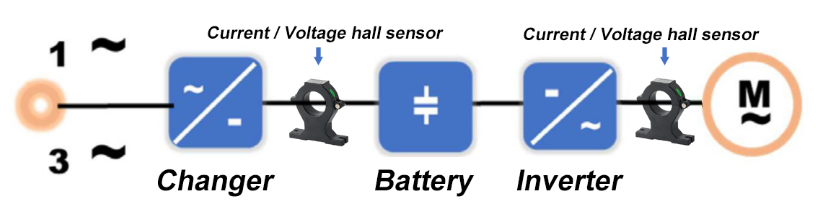

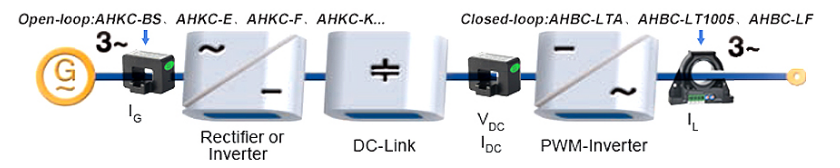

Structure

1) Photovoltaic

2) UPS


3) Solar and wind energy



4) Electric welding machine



5) Motor servo system



6) Rectifier



Main Functions


With EMC, CE, RoHs certified.

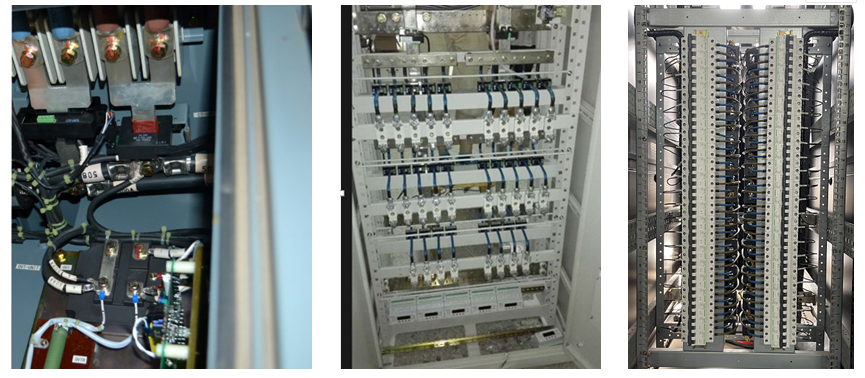

Photos on site


Product Selection

Shape
Type
Rated Input
Rated Output
Measuring Aperture
Power Supply
Application

AHKC-EKA
0-(50-500)A
5V/4V
20mm
±15V
  1. 1.Photovoltaic DC cabinet

2.photovoltaic inverter/wind inverter

3.The data center



AHKC-EKAA
DC 0-(50-500)A
4-20mA
20mm
12/24V

AHKC-BS
0-(50-500)A
5V/4V
20.5*10.5mm
±15V

AHKC-E
0-(200-500)A
5V/4V
20mm
±15V

AHKC-F
0-(200-1000)A
5V/4V
43*13mm
±15V

AHKC-K
0-(400-2000)A
5V/4V
64*16mm
±15V

AHLC-LTA
100A-300A
50mA/100mA
20mm
±15V
UPS

AHBC-LF
2000A
400mA/±12V~±24V
1.UPS
2.photovoltaic inverter

AHBC-LT1005
1000A
200mA/±12V~±24V
UPS
