Energy Management System

Application


●Commercial and Office Building; Municipal Engineering; Road Traffic Project; Industrial and Mining Enterprise; Educational and Medical Institution


Structure


Main Functions

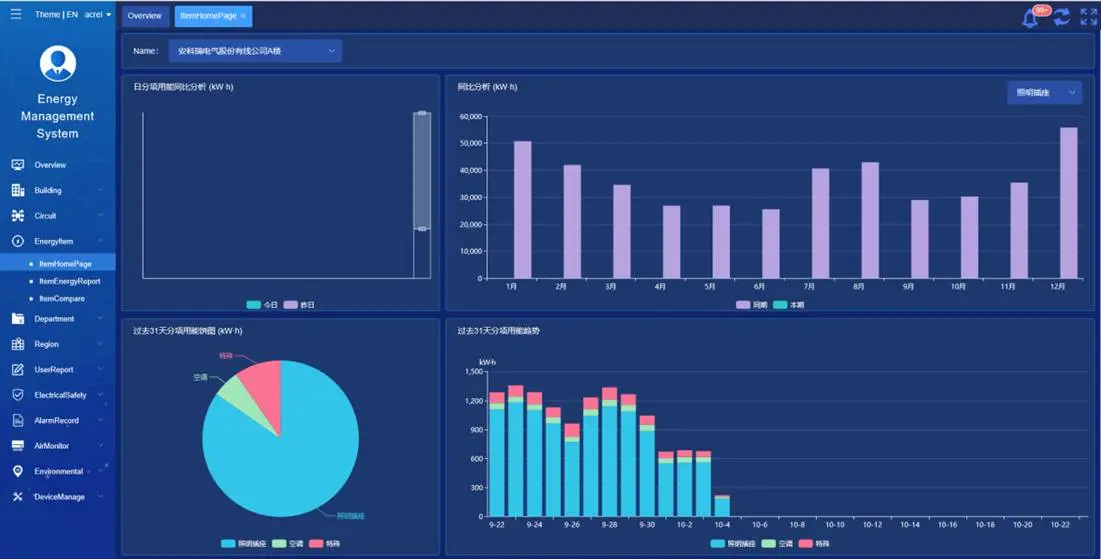

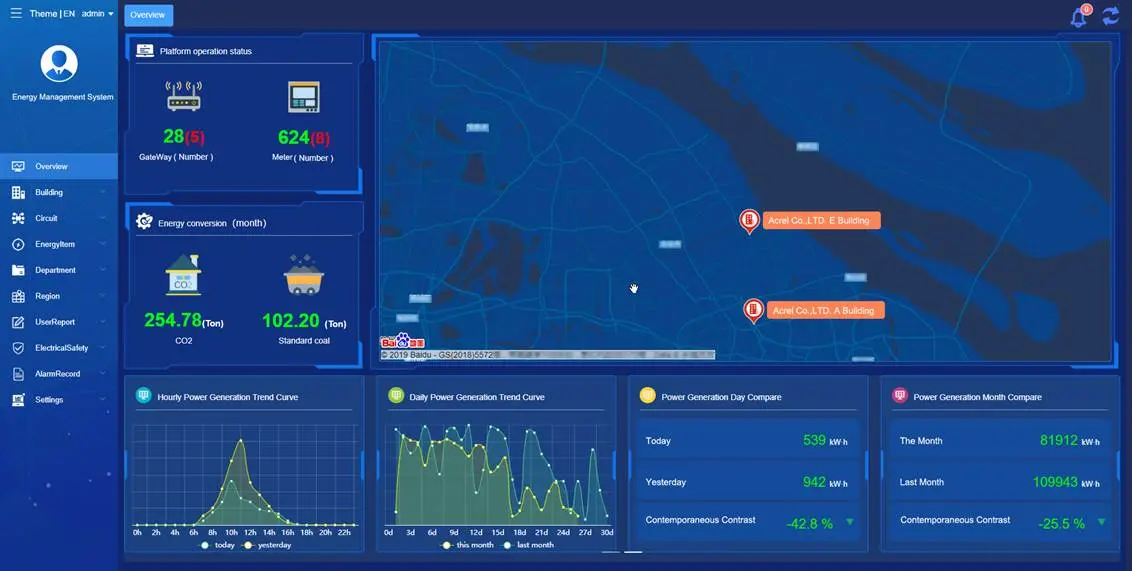

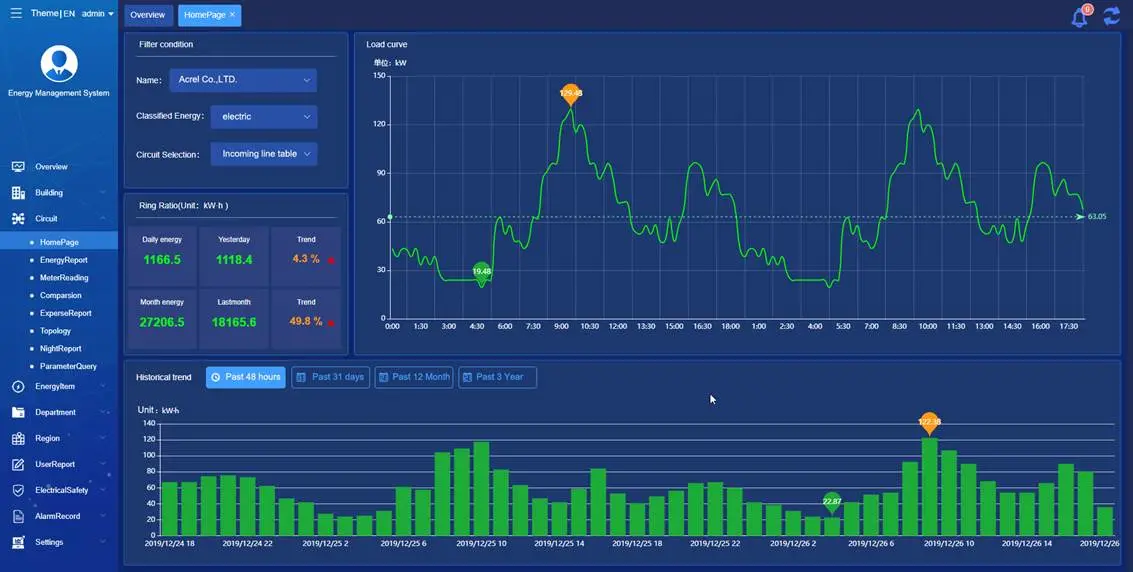

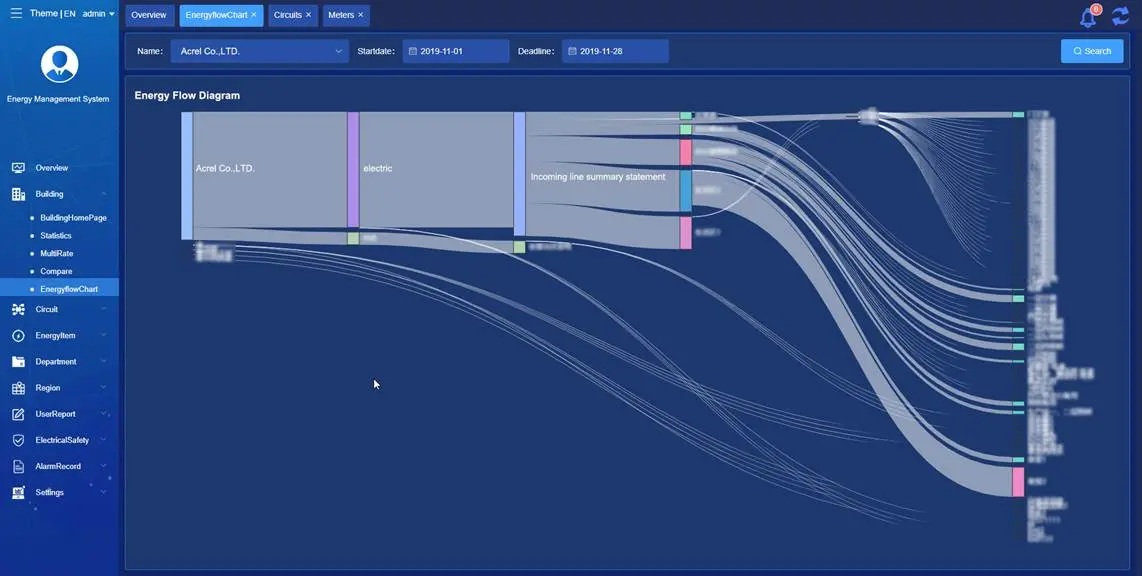

1) Overview of EnergyConsumption

2) Statistics of Energy Consumption

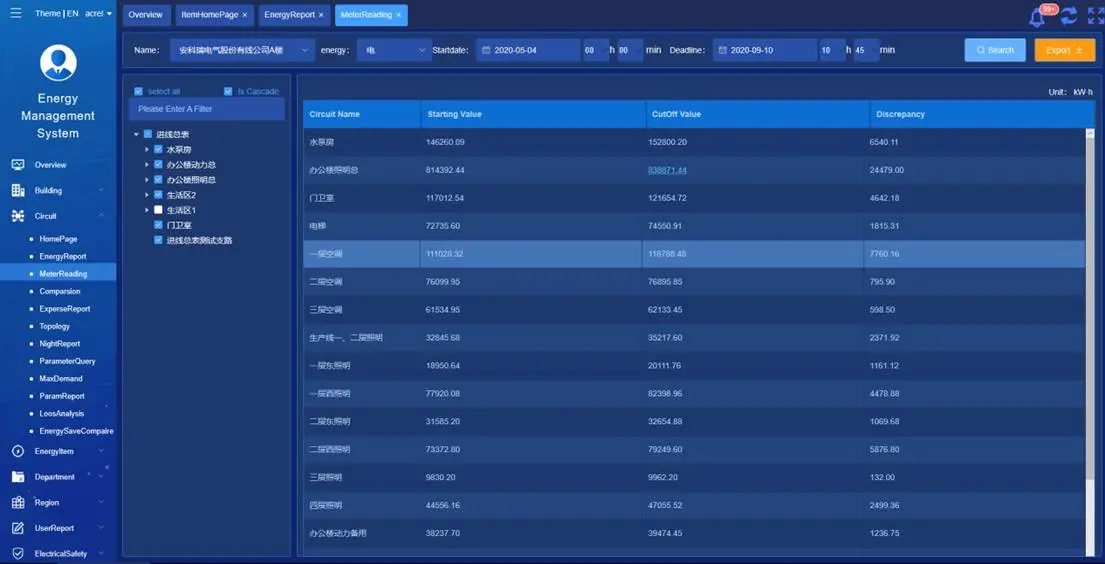

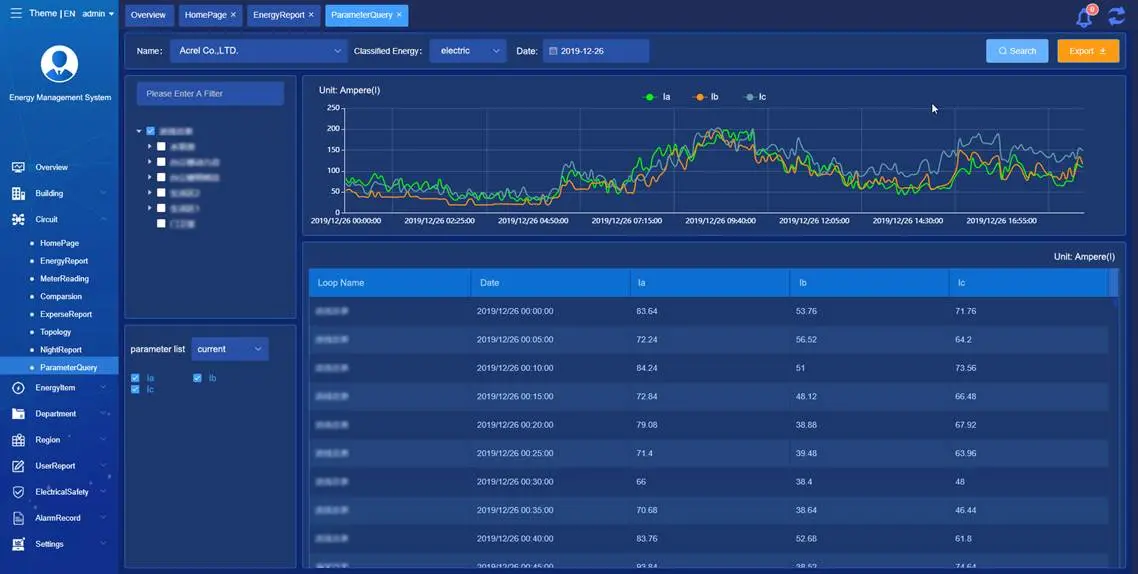

3) Data Reading

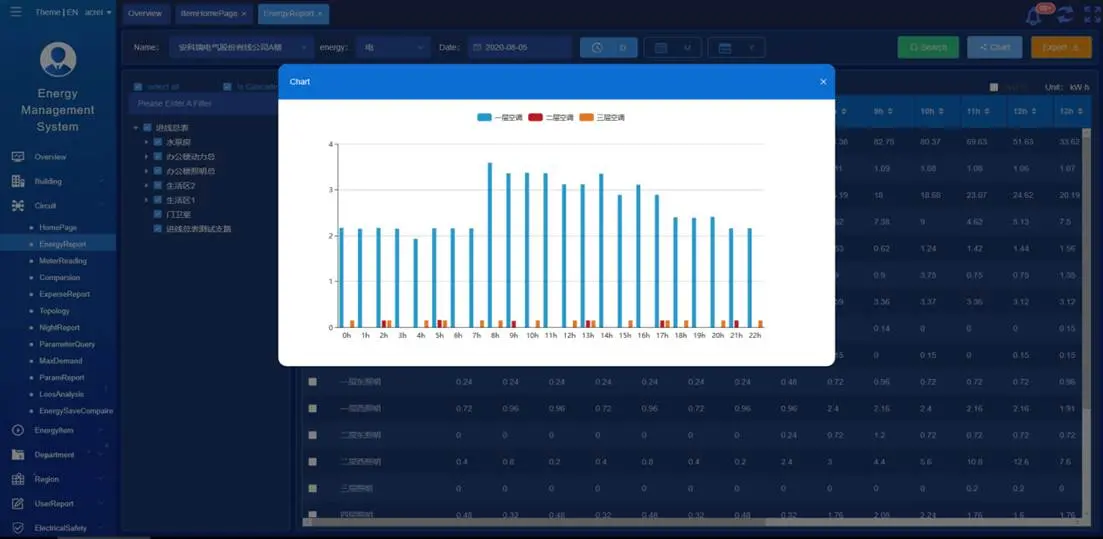

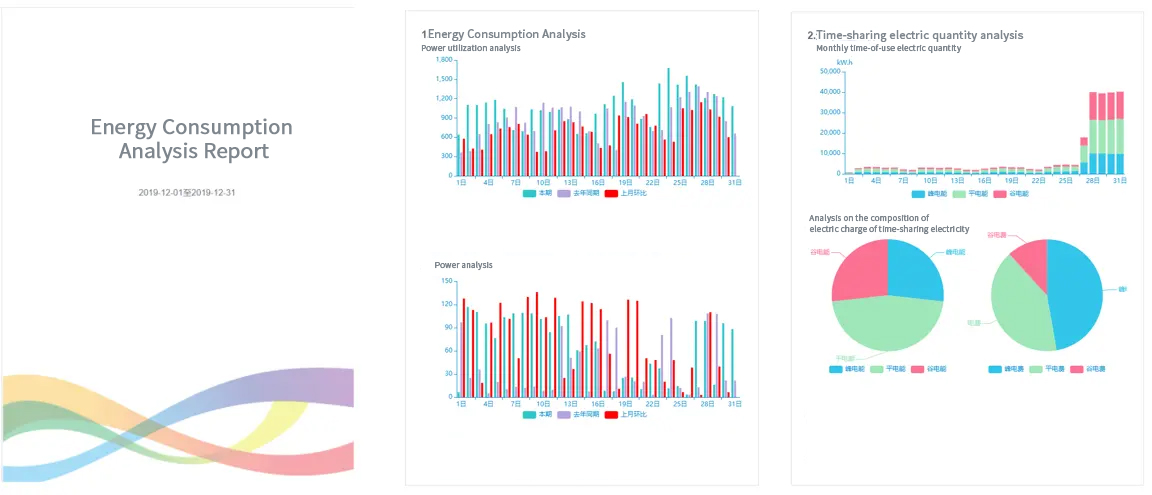

4) Analysis Report on Energy Consumption


Product Selection

Product Name
Product Image
Functions

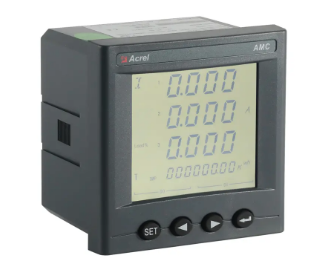

AMC96L-E4/KC Multifunction Meter

True RMS Measurements
● THD with 2-31st Harmonics
● Max/Min Log with Timestamp
● Internal Optional 4DI&2DO or 2DI&2DO&2AO
● Standard one Energy Pulse Output

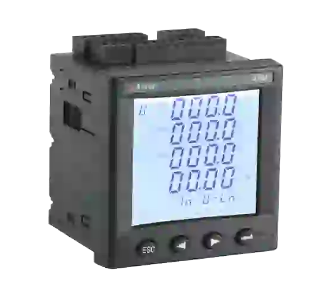

APM810 Multifunction Meter

● True RMS Measurements

● THD with 63rd Harmonics
● K-Factor and Crest Factor
● Unbalance & Phase Angles
● Demands and Multi-Tariff energy
● Max/Min Log with Timestamp
ADL10-E Single Phase Electric Energy Meter

● AC 220V
● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U、I、P、Q、S、PF、kWh、kvarh
● DIN 35mm
ADL100-ET Single Phase Multi-function Energy Meter


● AC220V
● 10(60)A,20(100)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1
● DIN 35 mm


ADL200 Din Rail Energy Meter

● AC220V
● 3×10(80)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1
● DIN 35 mm
ADL400 Din Rail Energy Meter

● AC220V
● 3×1(6)A,3×10(80)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 0.5
● DIN 35 mm

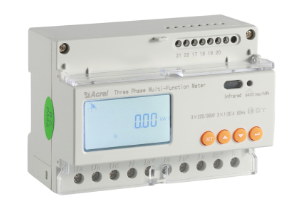

ADL3000-E Three Phase Multi-function Energy Meter

DIN 35 mm
● 36 circuits single phase 80A direct input Or 12 circuits 3 phase 80A direct input Or 12 circuits 3 phase 5A CT Input I,U,F,P,Q,S,PF,E;
● Standard RS485 port and Modbus RTU protocol
AWT100-4GHW Gateway

● Downlink: RS485

● Uplink:4G, WiFi or Ethernet
Anet-1E2S-4G Gateway

● Downlink:2* RS485
● Uplink:4G

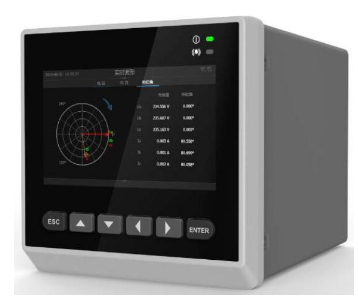

APQM-E Advanced Power Device

● Advanced power quality analysis and revenue-accurate
