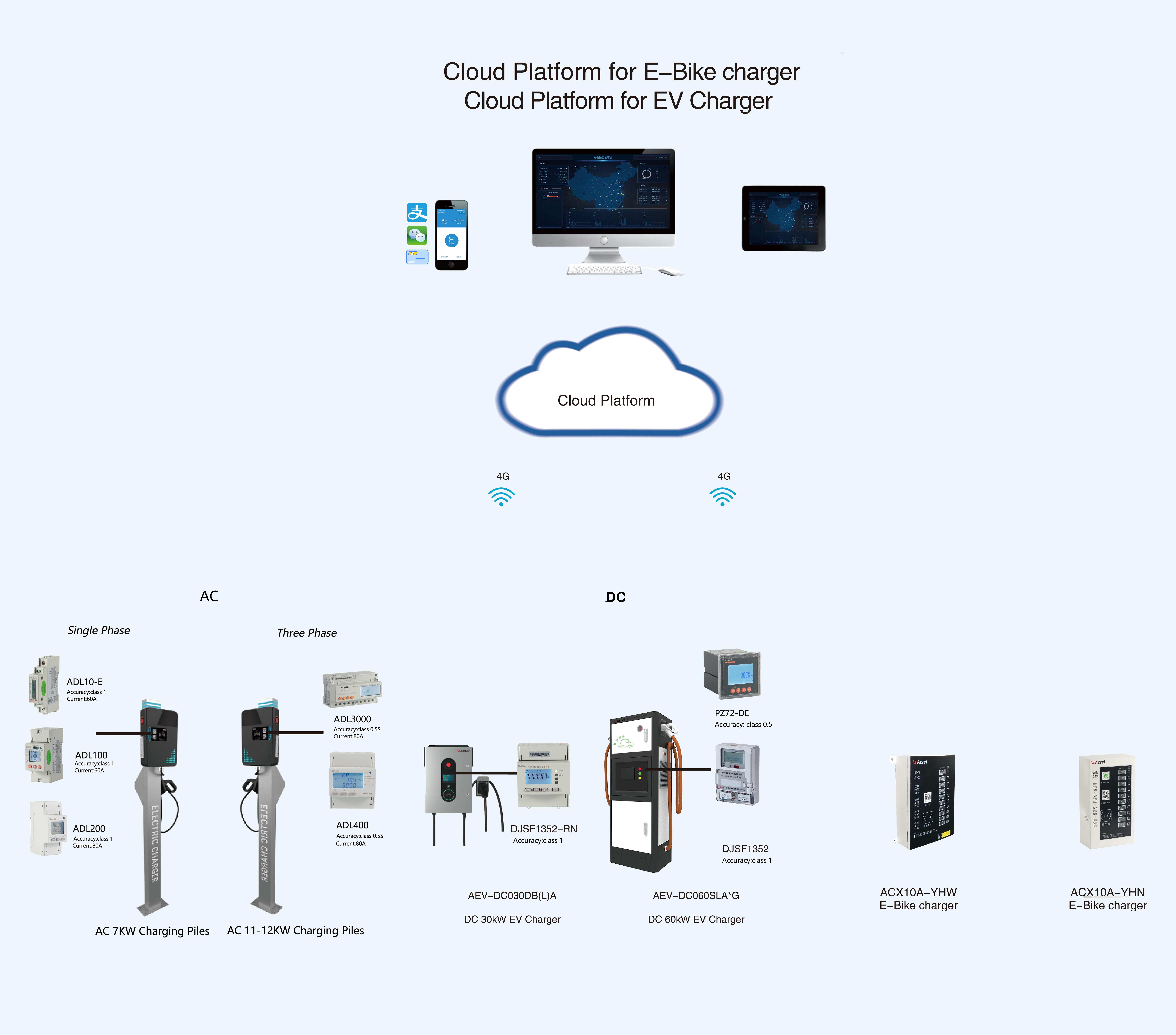

Charging Pile Energy Management System Solution

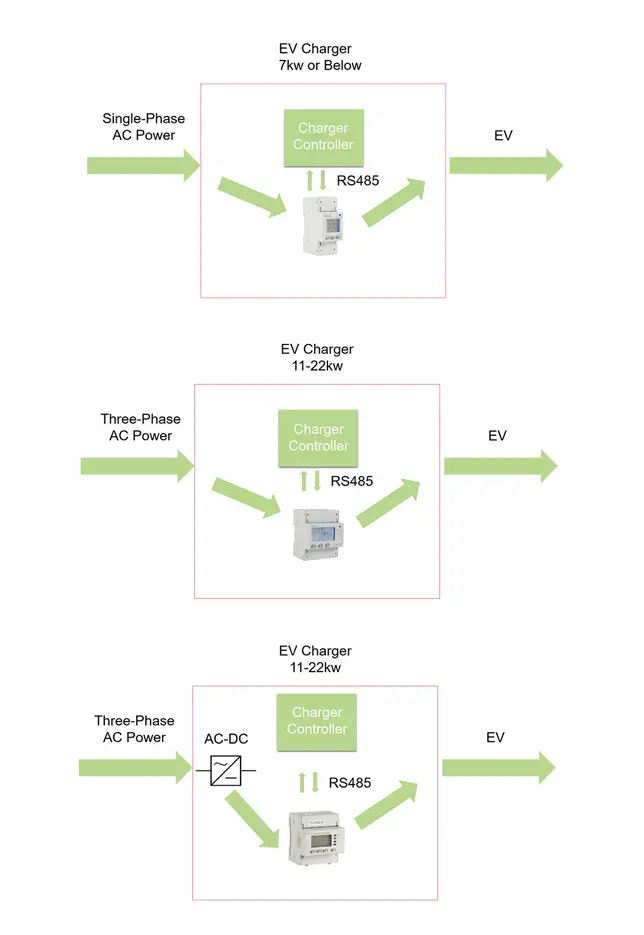

Application


Single phase and three phase AC, DC energy meters complies with the corresponding IEC standards and can be used in all kinds of AC and DC charging piles to realize charging energy measurement, and can transmit electrical parameters in real time through communication.

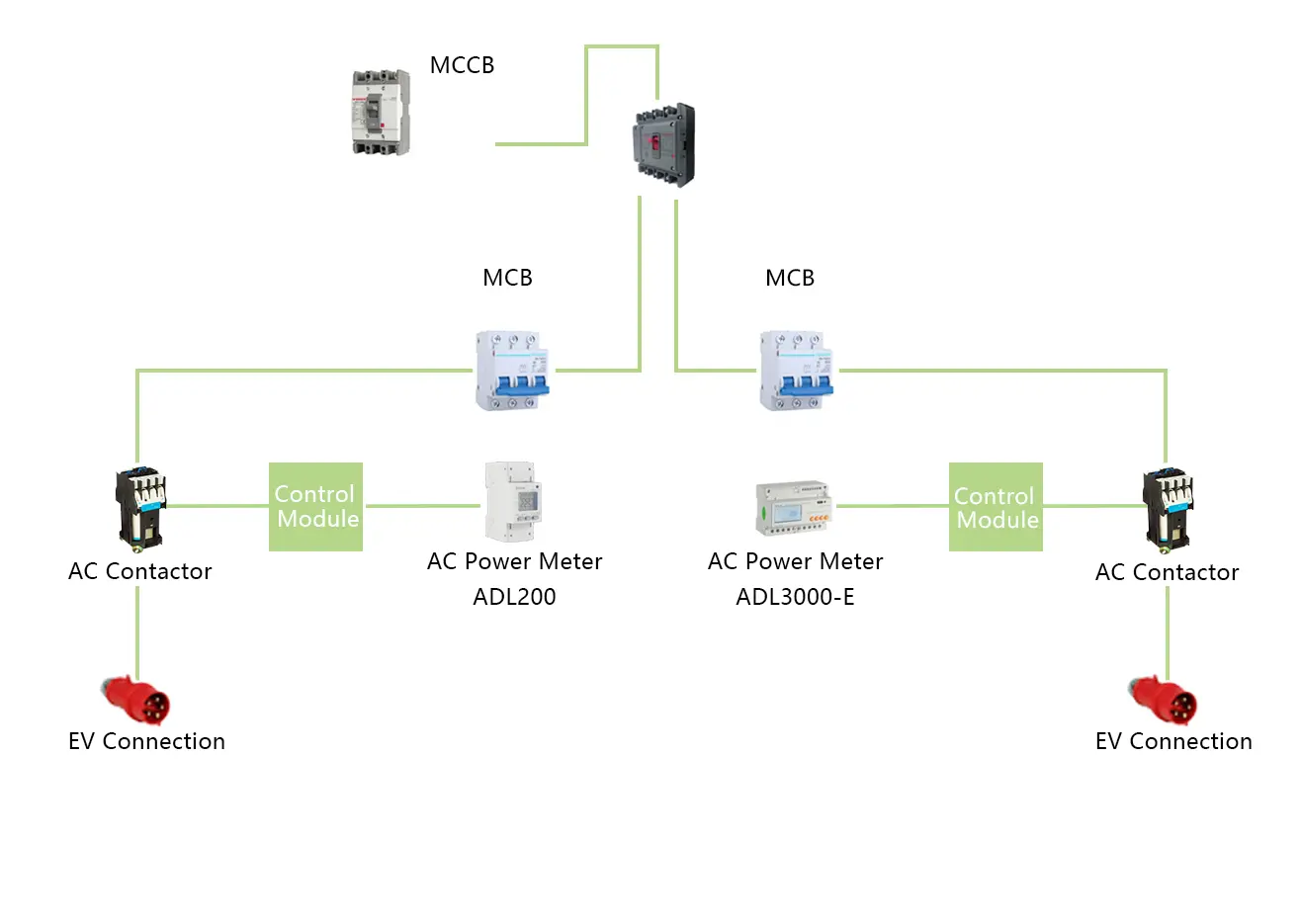

Structure




Main Functions


It can measure and display electrical parameters such as voltage, current, power, energy, and support RS485 communication and electric energy pulse output.

1.Accuracy

Energy Accuracy: Class 0.5S or Class 1

2.Optional Configuration

Optional multi tariff

3.Certificate

With CE or IEC certificed

Product Selection

Product Name
Product Image
Functions



● Small size

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,15s;

● CT-powered, more than 5A starting current;

● Widely temperature measuring range, -40℃~125℃.

● AC 220V

● 10(60)A

● RS485,MODBUS-RTU

● LCD display

● kWh Class 1,Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm




● AC220V

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm




●AC220V

●3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

●DIN 35 mm


●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm


● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● kWh Class 0.5S,kVarh Class 2

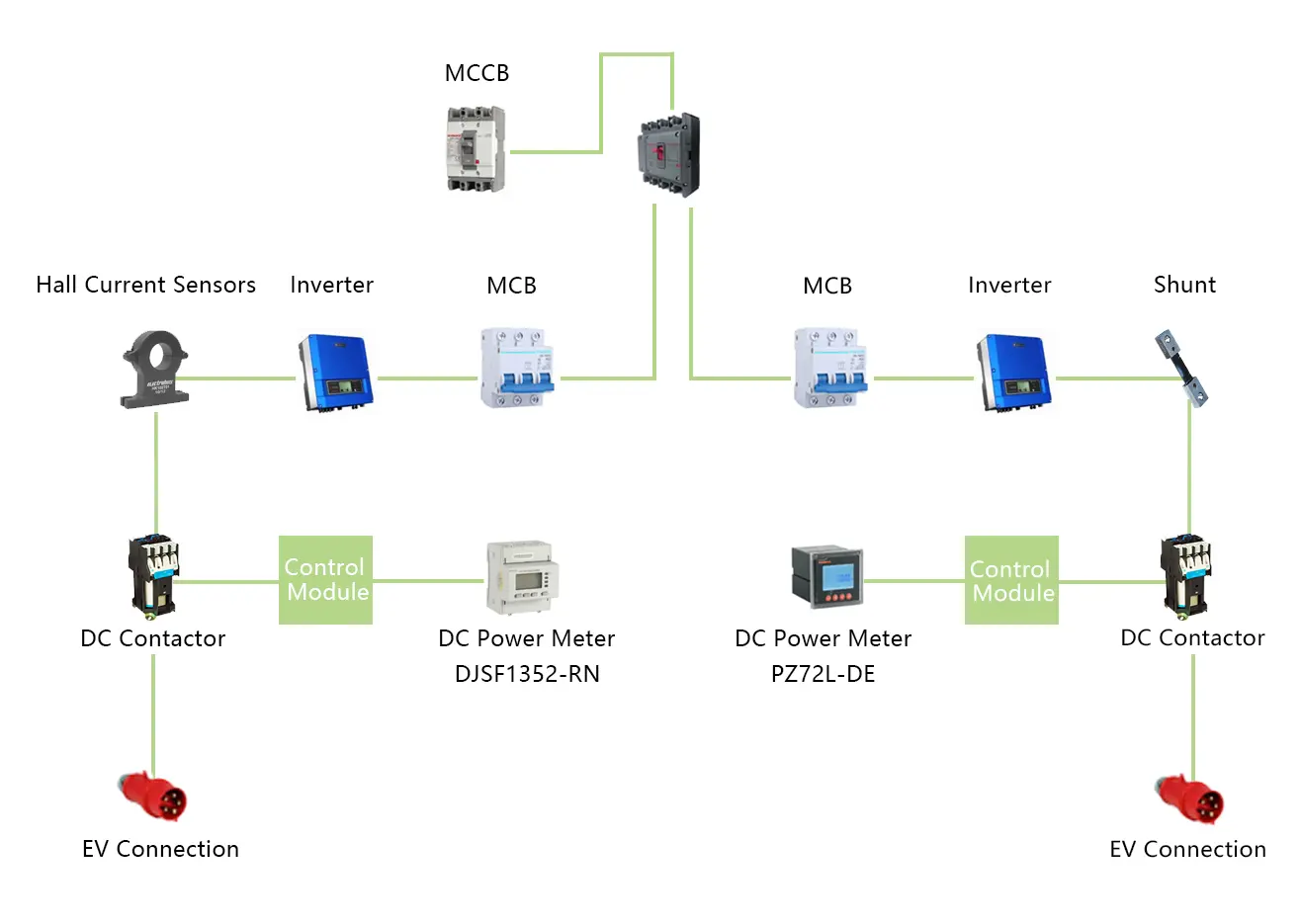

Measurement

AC, DC, pulse and other complex current


●Panel mounted, measure DC voltage

●current, power;Measure DC energy;Direct connect voltage 0-1000V;Current measurement support 75mV Output of shunt

●support 0-5V, 0-20mA output of hall; RS485(Modbus protocol)


● Din-rail mounted, support optional two-channel DC voltage, current, power measurement;

● Measure DC energy;

● Direct connect voltage 0-1000V;

● Current measurement support shunt 75mV output, support Hall sensor 0-5V, 0-20mA output;

● RS485 communication (Modbus protocol)

DJSF1352 DIN Rail DC Energy Meter

● Wall mounted, measure DC voltage, Current, power;

● Measure DC energy;

● Direct connect voltage 0-1000V;

● Current measurement supports 75mV output of shunt, supports 0-5V, 0-20mA output of hall;

● RS485(Modbus protocol)

AFL-T Shunt

● Measurement

● Common Specification: 300A/75mV
