General
AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The uplink communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.
Parameters
Downstream
| RS485 communication
|
Uplink
| 4G communication
| NB-IoT communication
| 2G communication
| LoRa communication
|
SIM Card Voltage | 3V，1.8V
| /
|
Antenna Interface | 50Ω/SMA(Female head)
|
Serial Port Type | RS-485
|
Baud Rate
| 4800bps、9600bps、19200bps、38400bps(default 9600bps)
|
Working Voltage | DC24V or AC/DC220V①
|
Working Temperature | -10℃～55℃
|
Storage Temperature | -20℃～70℃
|
Humidity Range | 0 to 95% non-condensing
|
Note: ①AC/DC220V power supply requires an external AWT100 power module.

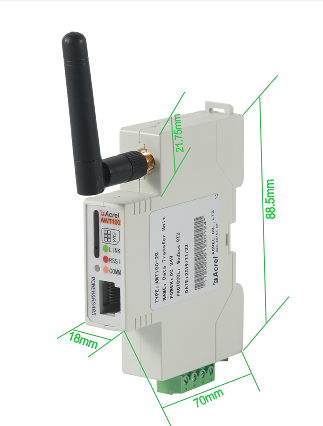

Dimension
Wiring
Note:The two interfaces of the network port and the terminal can only be used one by one and cannot be used at the same time.
Software of PC
Connection
Mounting
Application
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package dimensions(1 PC) 130*150*170mm
| Pakage Weight(1 PC) 0.218Kg
|
WHOLE BOX PACKAGE
| Package dimensions(16 PCS) 295*220*145mm
| Pakage Weight(16 PCS) 3.488kG |
PRODUCT HS CODE
| 8543709990
|
ATTENTION ! The above packing and weight data are only refer to model AWT100-LoRa. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
