General

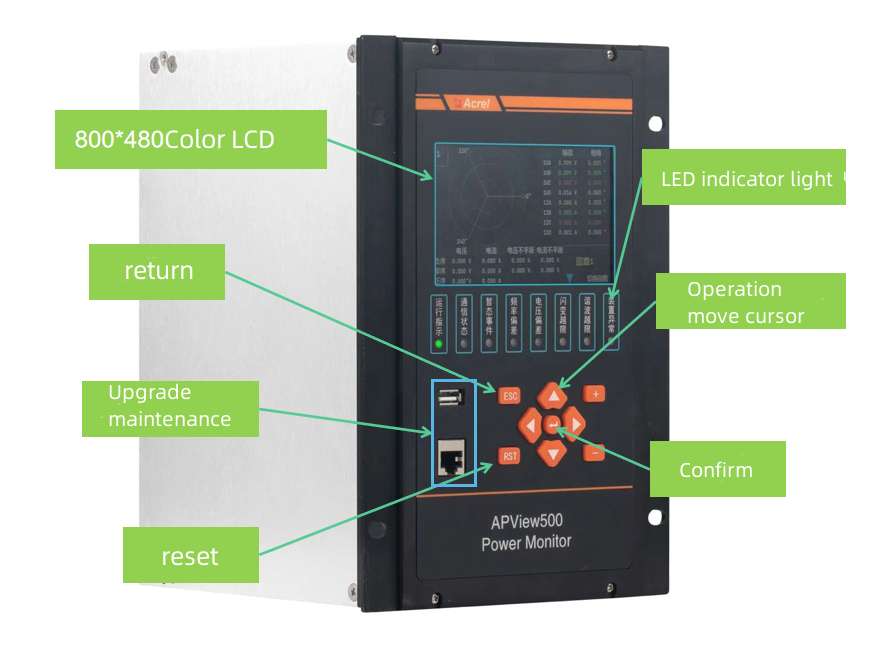

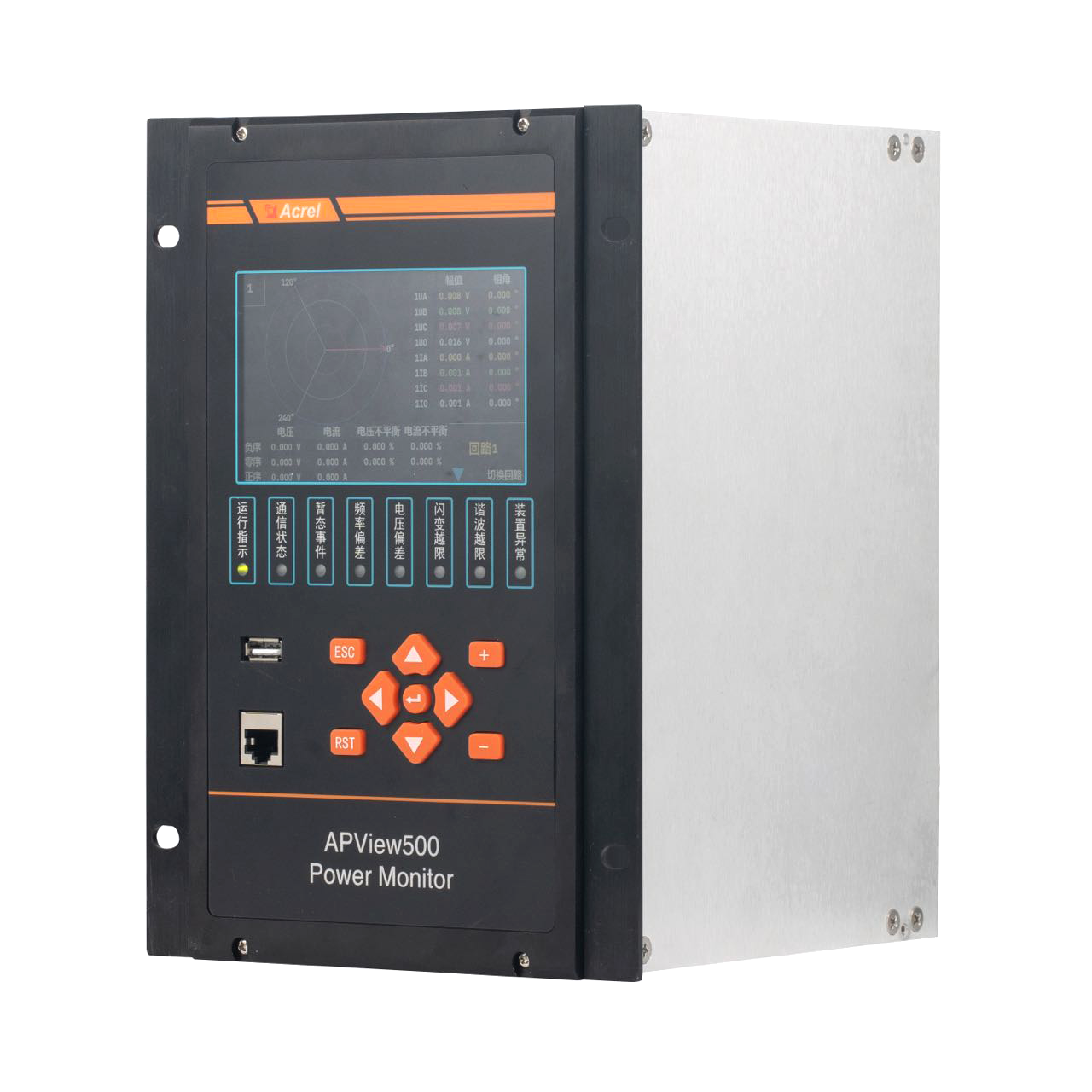

Power quality monitor APView500 integrates a high-performance multi-core platform and an embedded operating system, and monitors power quality indexes stipulated in IEC61000-4-30 Testing and measurement techniques –Power quality measurement methods, and provides various functions such as harmonic analysis, waveform sampling, voltage dips/swells/interruptions monitoring, flicker monitoring , voltage unbalance monitoring, event recording and measurement control. It meets IEC 61000-4-30 Class A Edition 3.1 with respect to standardization of power quality index measurement methods, measurement accuracy of index parameters, clock synchronization, event alarms and others and satisfy the demands of power quality monitoring of power supply system up to 110kV. Therefore, it is widely applicable for power quality monitoring in chemical industry, steel industry, metallurgy industry, hospitals, data centers, transportation, construction industry and other industries.
Parameters
Communication RS485 (Modbus-RTU Modbus-TCP、IEC61850 MMS、FTP) Rated: AC current 5A or 1A
|
|
| AC voltage Rated: 57.74V/100V, or 220V/380V Measuring range: 0-1.2Un Power consumption:≤0.5VA (single phase) Overload capacity: 1.2Un, continuous working 4 times for 1seconds |
Technical Datasheet
Technical Parameter | Value |
Rated Value | AC voltage:AC/DC220V, AC/DC110V or DC48V AC current:AC1A,5A; |
Overload capacity |
1.2In, continuous working 20 times for 1 second
|
power supply | Rated: AC/DC220, AC/DC110V or DC48V Permissible deviation: -20%-+20% Power consumption:≤15W
|
Power Consumption | ≤0.5VA (single phase) |
Measuring rage
| 0-1.2In
|
Digital output
| Mechanical service life: ≥10000 Output mode: Passive contacts Switching capacity: ≤4000W or ≤384VA On-state current: ≥16A(AC250V/DC24V) in the continuous mode; ≥30A for a short term (200ms)
|
Accuracy | Class 0.5 |
RMS Voltage：±0.1% RMS Current：±0.1% P,Q,S：±0.2%
Power factor：Class 0.5 Voltage deviation：0.1% Frequency deviation：±0.001Hz
|
Communication | RS485,Modbus-RTU protocol;Ethernet.
|
Three phase unbalance | Voltage unbalance:±0.15% Current unbalance:±1%
|
Power frequency withstand voltage | Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV |
Temperature | Operation: -10℃～+55℃Storage: -30℃-+80℃ |
Humidity | ≤95%RH,no condensation,without corrosive gas |
Altitude | ≤ 2500m |

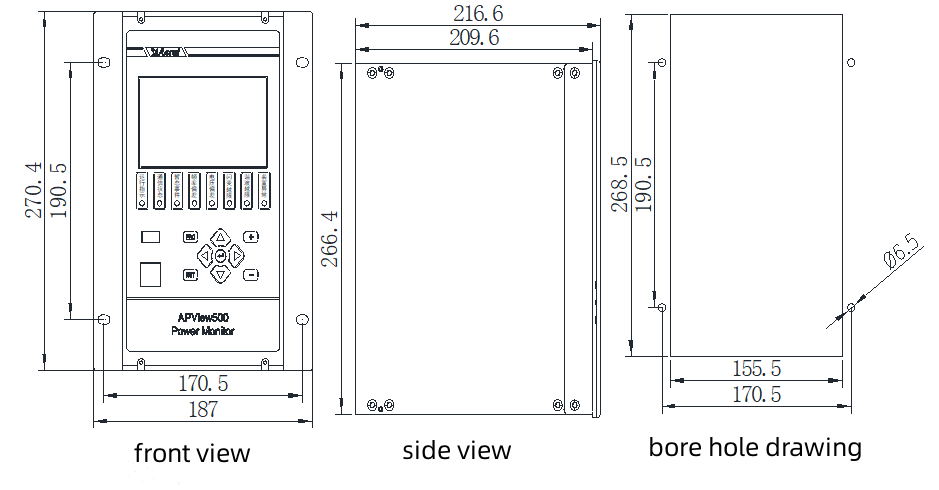

Dimension

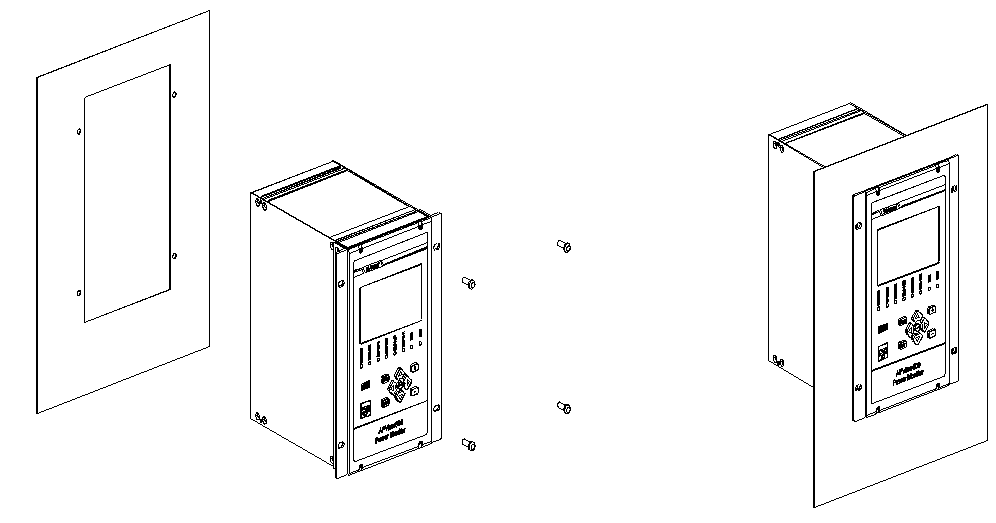

Installation

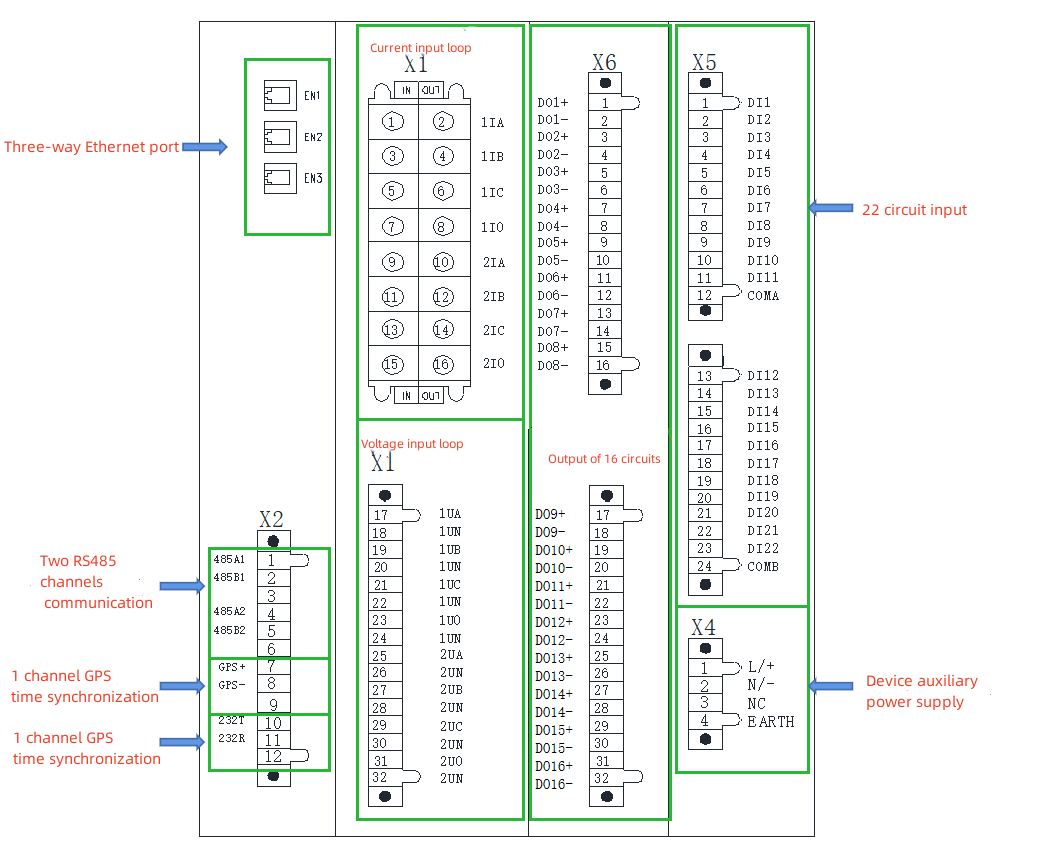

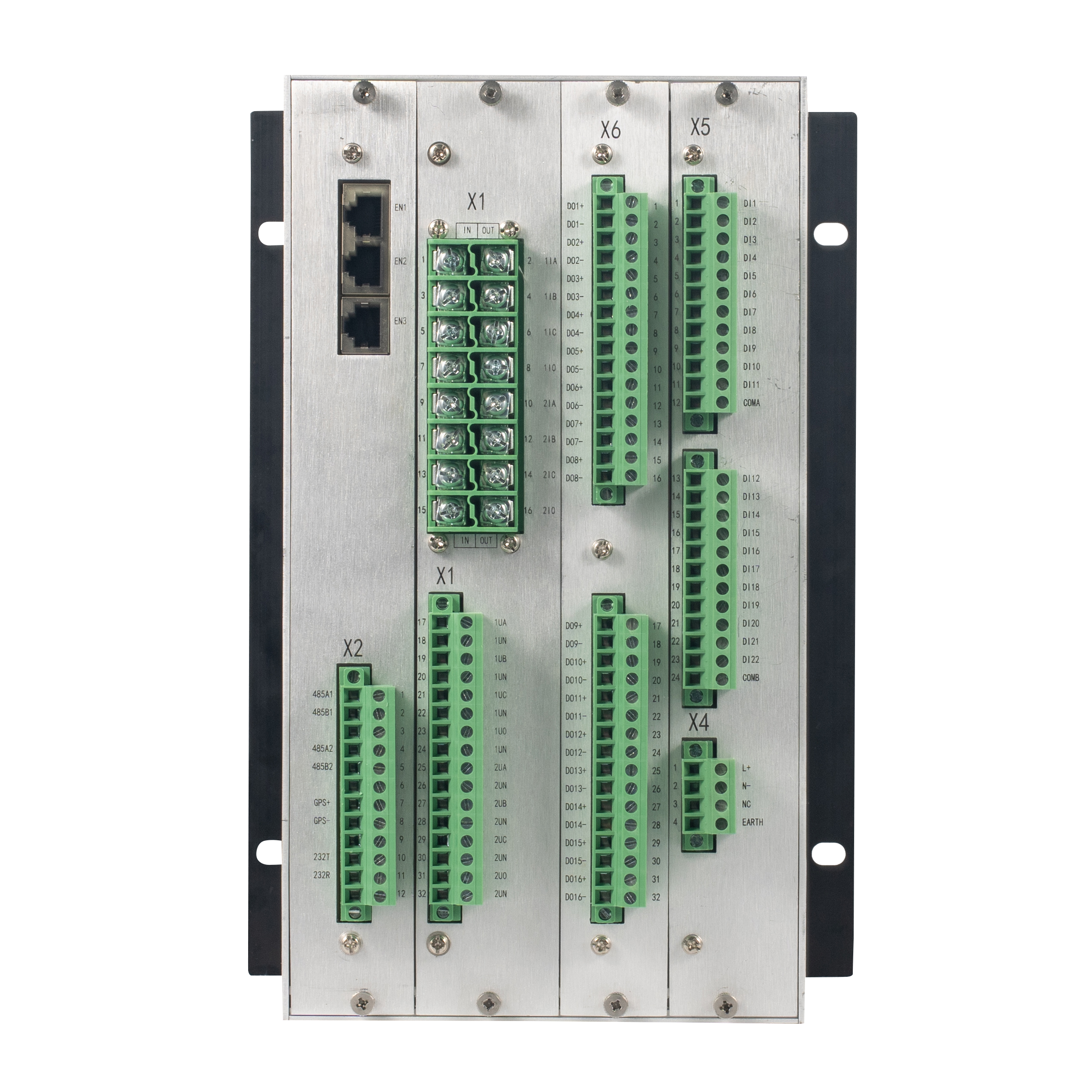

Wiring
