Application of DC meter from ACREL in Kenya base station

Time: 13.January.2022  |   Source: Acrel

Abstract: This article introduces the application of Acrel DC meters in base station in Kenya.The device is measuring current,voltage and energy together with shunt.

1.Project Overview

This company is located in Kenya and  is a system integration company. Mainly used DC multi-function meter PZ72L-DE/C and shunt, used to measure and monitor current and voltage in telecommunication station.

2.PZ Series DC Programmable Intelligent Electric Meters

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power,telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power,forward and reverse power in DC system. It can be used for local display, and connected with industrial control

equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output. According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters.

The product meets the relevant technical requirements of the standard Q/GDW1825-2013 DC power meter specification,GB/T29318-2012 Non-vehicle charging electric energy metering for electric vehiclesQ/GDW364-2009 Single-phase energy meter specification.

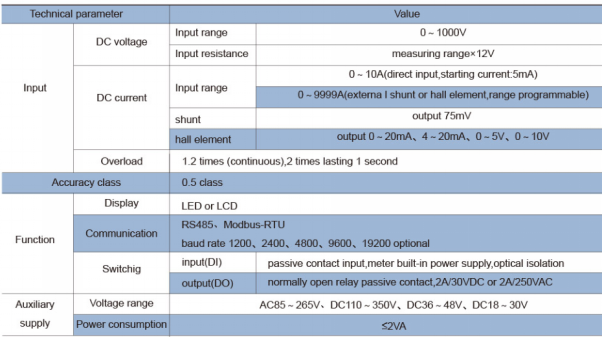

3.Technical data

4.Product main functions

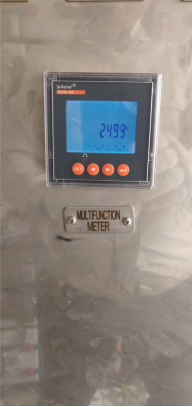

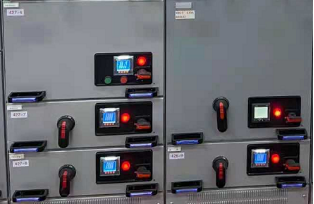

5.Installation picture
