Abstract: The emergence of electric vehicles is a product of technological development and environmental protection. With the improvement of people's quality of life, more and more families have begun to buy cars, leading to increasing pressure on environmental protection. The implementation of electric vehicles can effectively alleviate the pressure on environmental protection and reduce the consumption of traditional energy. It is one of the important trends in the development of the automotive industry. There are already many car brands developing electric vehicles and achieving good results. However, car charging is an important supporting service for electric vehicles, which directly affects the popularity of electric vehicles. Therefore, while developing electric vehicles, it is necessary to develop and design the intelligent control system of electric vehicle AC charging piles to escort the popularization and development of electric vehicles.

1. Market Overview

With the development of intelligent and electric vehicles, electric vehicles will become the mainstream of future vehicles, thus bringing the development of charging piles for electric vehicles.An electricity meter should be installed in the charging pile to measure the charging voltage and current as well as count the charging electricity, and communicate with the control module through RS485 .

2.DJSF1352 DC Power Meter Introduction

DJSF1352 has double DC input channels, mainly designed for DC charging piles, solar , this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.

The meter can have infrared communication interface and RS-485 communication interface, and supports Modbus-RTU protocol .The meter can have relay alarm output and digital input function;You can set the ratio, alarm, and communication through the meter panel keys according to different requirements.The meter can have event recording of switch (Modbus protocol), maximum and minimum value recording function of voltage and current power.

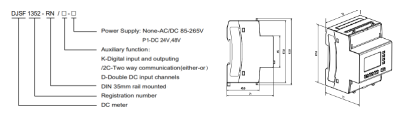

3.Model Description

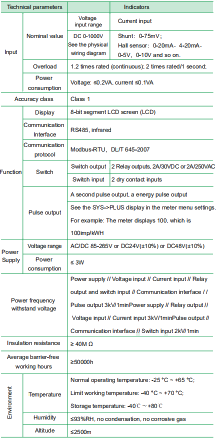

4.Technical Features

5.Summary

As an important downstream pillar industry of new energy vehicle industry chain, charging pile seems to have a very optimistic market prospect. At present, the prospect of the industry is unanimously optimistic, and Acrel DC power meter can perfectly solve the problem of charging pile measurement.
