Smart Motor Control and Protection Solution

Application


The motor is an important asset of the enterprise. It is necessary to monitor the running status and the efficiency of the motor, and protect the motor. ARD series smart motor protector is used for 660V low-voltage motor circuits with protection, measurement, control, communication, operation and maintance function, can realize multiple starting schemes to ensure the safe operation of the motor. It can be connected to the intelligent MCC or DCS production system. It is widely used in Chemical Industry、Power Plant、Pump Station、Mining Industry、Metallurgical Industry and so on.

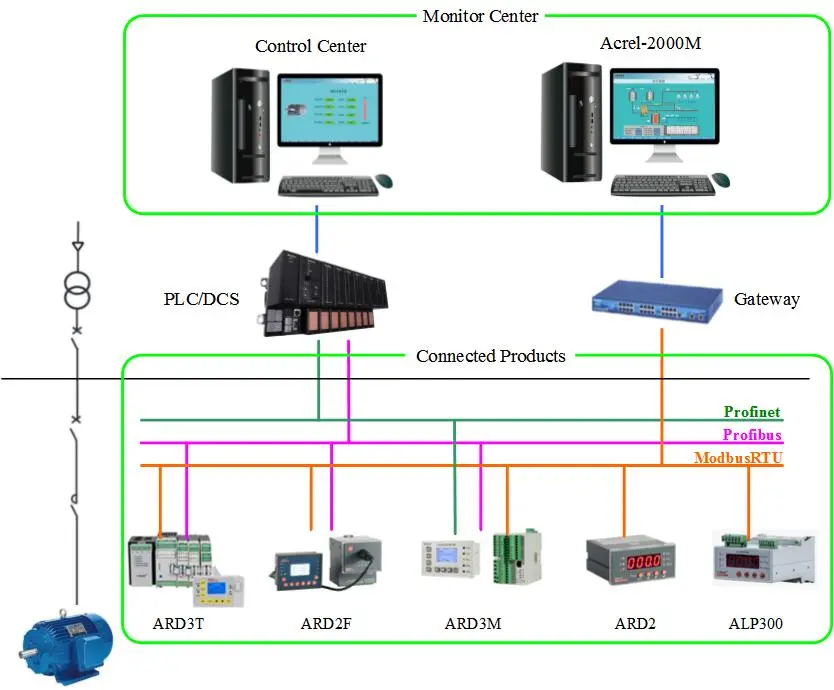

Structure



Main Functions


1)Protection function

Start timeout
External Fault
UnderPower
Overload
Insulation Fault
tE time
Underload
OverVoltage
Loss of pressure (anti-shake)
Short circuit
Undervoltage
4-20mA input protection
Blocking
Phase Failure
Ground
Stall Phase
Sequence
Leakage
Unbalance
OverPower

2)Communication

Modbsu-RTU; Modbus-TCP; Profibus-DP; Profinet


Human Machine Interface



Product Selection

Product Name
Product Image
Functions

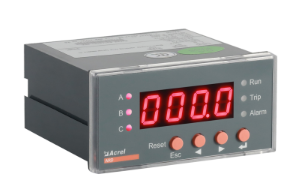

ARD2 Smart Motor Protector
● Suitable for motors with rated voltage of AC380V/660V;
● Optional leakage protection, RS485 communication, analog output, etc.
● 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;
● 4 channels DO output

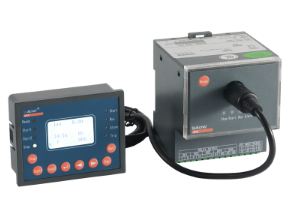

ARD2F Smart Motor Protector

● Measurement functions are divided into basic measurement (current parameter) and co-selection measurement (voltage, power, phase sequence, residual current (leakage current);

● Start timeout, overload, stall, block, underload, phase failure, unbalance, residual current (ground/leakage), temperature, external fault, phase sequence, overvoltage, undervoltage, underpower, overpower, tE time Motor comprehensive protection function;

● 9-channels DI passive dry node input, signal power supply with built-in DC24V power supply;

● 5-channels DO output, which can meet the direct start, star-delta start, autotransformer start, soft start and other starting modes. Real-time remote control "start/stop" operation of the remote master station can be realized through the communication bus;

● It has standard RS485 communication interface and adopts Modbus-RTU and Profibus-DP communication protocol to ensure fast and reliable communication of the host computer;

● It has a DC4-20mA analog output interface and is directly connected to the DCS system to monitor the field devices.

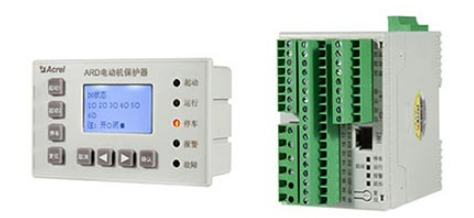

ARD3M Smart Motor Protector
●Suitable for low-voltage motor circuit with rated voltage up to 660V, it integrates protection, measurement, control, communication, operation and maintenance.
●The product adopts split structure, composed of main body, display unit, transformer and optional communication module, compact size, compact structure, simple wiring, can be used for various cabinet installation.
AKH-0.66/P Current Sensor
It is used for collecting low voltage overload and short circuit signal, and it is used together with protection relay and motor protector.
