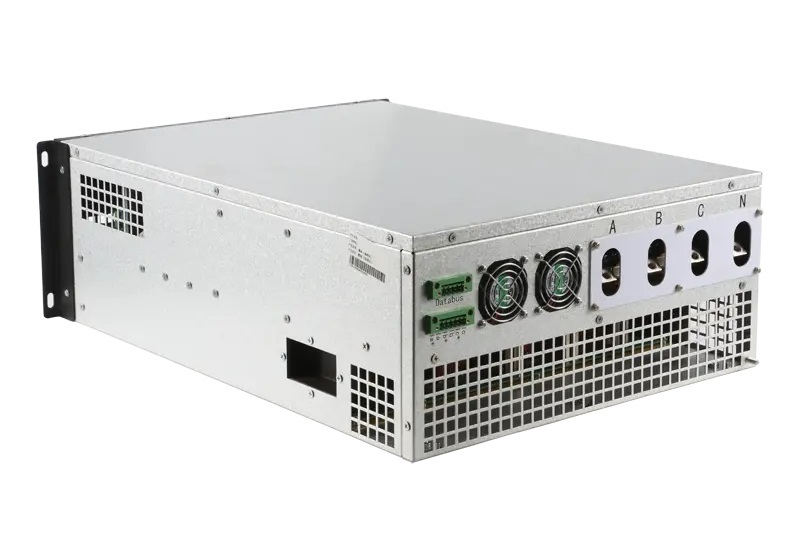

ANSVG Static Var Generator

ANSVG



● 380V±15%,50Hz±2%

● Full response time ≤ 5ms

● 30kVAR,50kVAR,75kVAR or 100kVAR

● RS485(Modbus-RTU）or Ethernet(Modbus-TCP)

● Frozen data


Description

General


Static var generator is a new type of power electrnics used to compensate for reactive power, harmonics, and regulation imblances.Our company wholeheartedly for the user solve the problem of power quality, static reactive power generator with unprecedented comprehensive power quality governance capacity, SVG to compensate reactive power, low harmonic, three-phase imbalance within 13 is given priority to, SVG can be more parallel running at the same time, the machine efficiency is more than 97.5%, fully applicable to a variety of industrial and civil field, is a nonlinear load harmonic harness and reactive compensation of the best solution.




Function




Dimension(L*W*H)

450*622*201mm


Response time

Full response time≤5ms，Instantaneous response time≤100μs


Total harmonic compensation rate

≥0.99，Compensates for capacitive reactive and inductive reactive


Self-loss

≤2%


Efficiency

≥98%


Switching frequency

20KHz







1）Flexible compensation method：Compensating for reactive power from the load，filter out harmonics within 5th, 7th, 9th, 11th, and 13th;


2）Ability of managing three-phase imbalance;


3）Linear compensation，Response time ≤ 5ms;

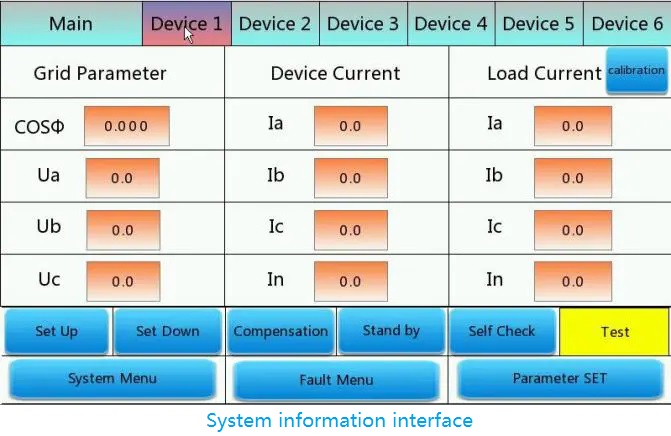

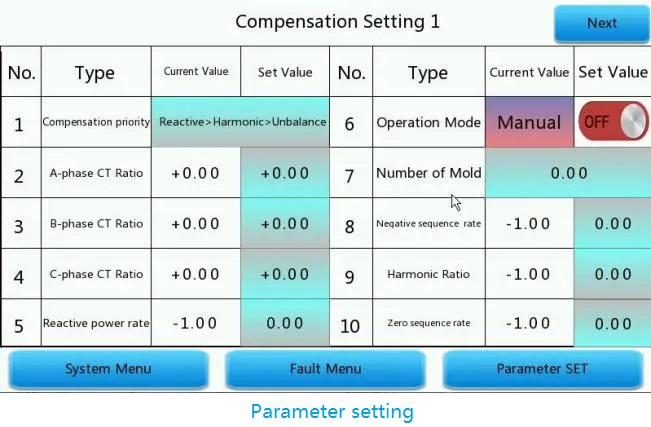

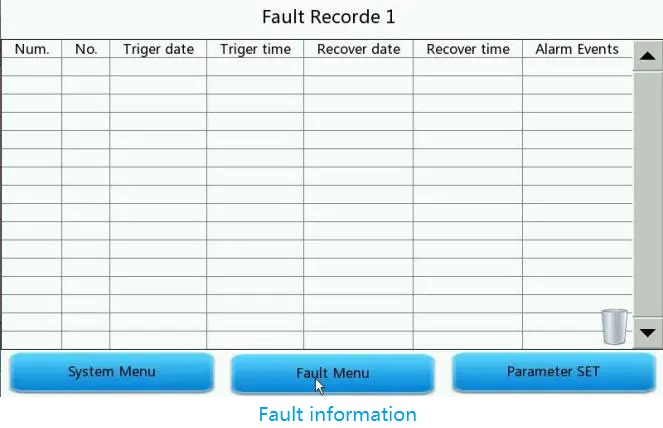

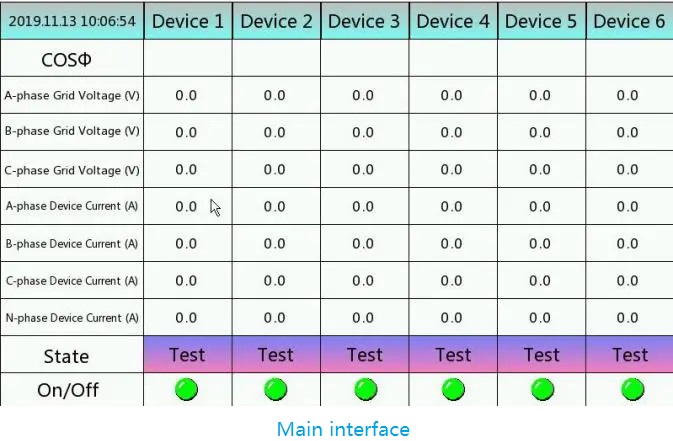

4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;


5）Adopt imported IGBT which has high power density and high reliability;


6）Using DSP digital control system for high speed detection and calculation;


7）With remote communication interface, real-time monitoring through PC;


8）Standard modular design which reduces lead times and increases reliability and maintainability.





Interface

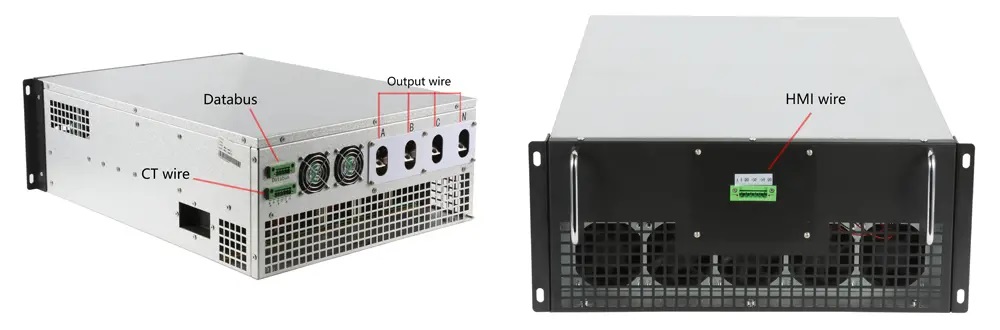

Wiring

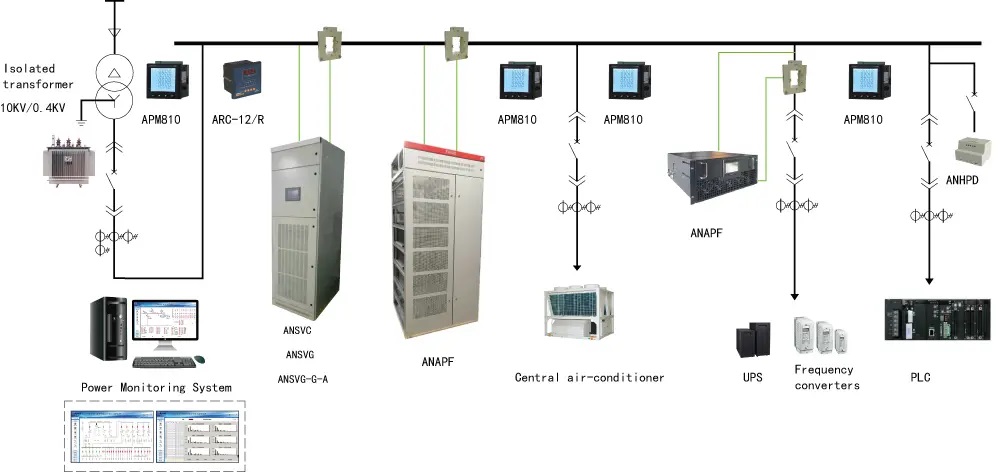

Connection


Package



HS Code:8543709990
