Smart Lighting Control System

Acrel-BUS


● Manual Control

● Auto Control

● Scene Control

● Time Control

● Centralized Control




Description

General




●Office Building; Scientific, Bducational, Cultural and Healthy Architecture; Commercial Building; Communication Architecture; Transportation Building; Tourist Building.



Structure





Main Functions

Manual control

Auto Control

Scene control

Time control

Centralized control




Product Selection

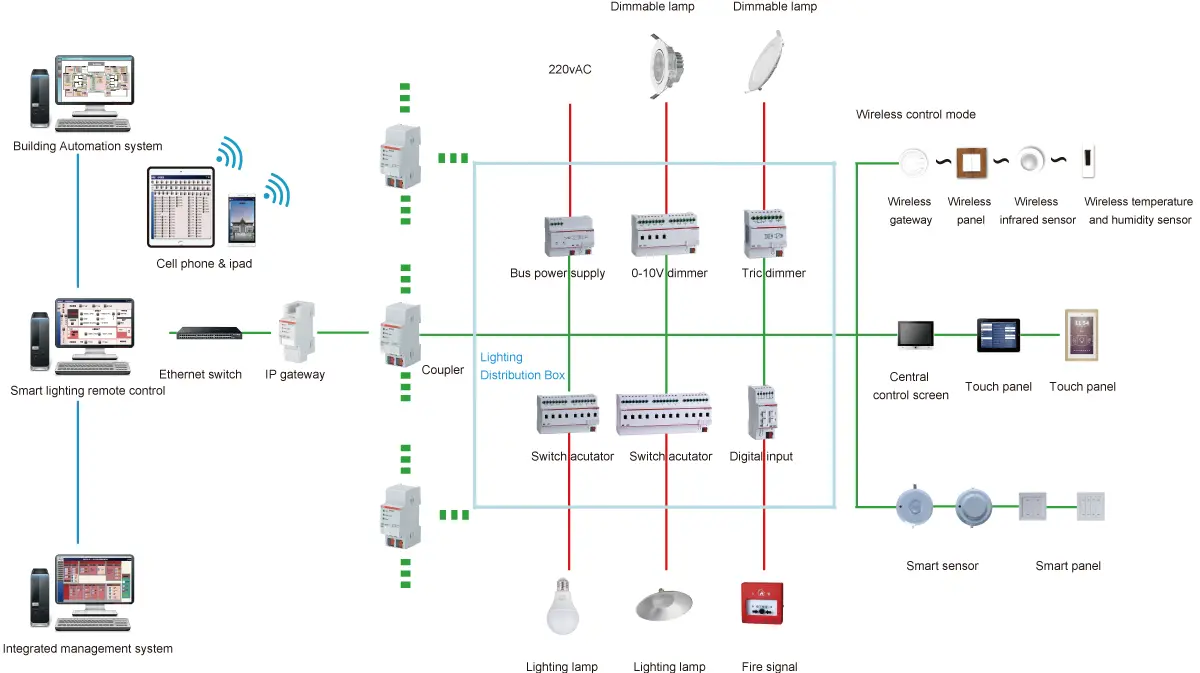

Network

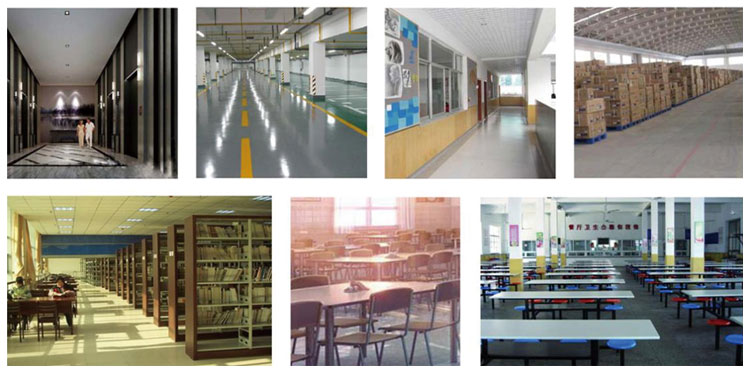

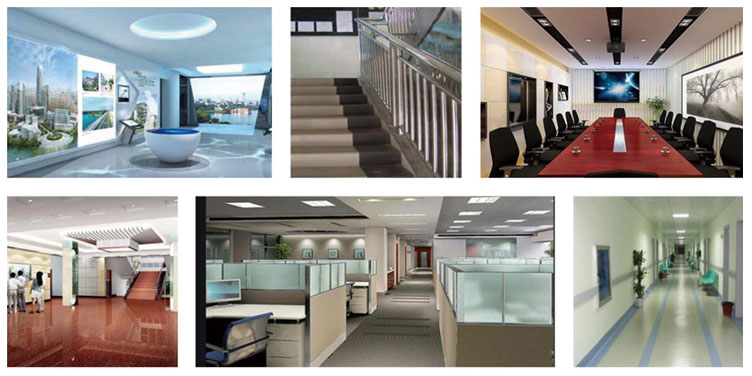

Application

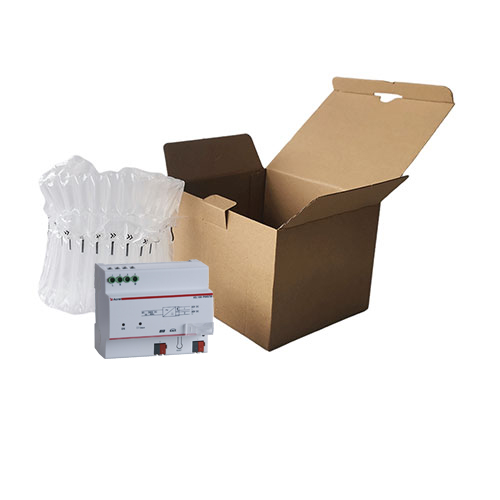

Package




MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg


WHOLE BOX PACKAGE


Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG


PRODUCT HS CODE


8537101190

ATTENTION !

The above packing and weight data are only refer to model ASL100-TD2/5 .

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!





MODEL

FUNCTION

UNIT PRICE (USD)

ASL100-P640/30

A standard power supply for the KNX/EIB system, coupling bus signals and monitoring overcurrent in KNX/EIB system. Power supply, Input: 85-265AC, Output: DC30V, 640mA, overload protection

295

ASL100-S2/16

Switch driver, 2 circuits control. (Max. current: 16A per unit)

150

ASL100-S4/16

Switch driver, 4 circuits control. (Max. current: 16A per unit)

265

ASL100-S8/16

Switch driver, 8 circuits control. (Max. current: 16A per unit)

370

ASL100-S12/16

Switch driver, 12 circuits control. (Max. current: 16A per unit)

445

ASL100-SD2/16

0-10V dimming driver, 2 circuits control by KNX bus protocol (Max. current: 16A per unit)

235

ASL100-SD4/16

0-10V dimming driver, 4 circuits control by KNX bus protocol (Max. current: 16A per unit)

325

ASL100-TD2/5

The SCR dimming driver can adjust input voltage by phase angle control to realize LED dimming

235

ASL100-WI4/230

It can realize different control requirements by active contact input (12-230VAC/DC)

148

ASL100-DI4/230

It can realize different control requirements by passive contact input

148

ASL100-T2/BM

It can sense both infrared and illuminance

175

ASL100-T2/BR

It can sense both infrared and illuminance

175

ASL100-F1/2

2 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

118

ASL100-F2/4

4 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

148

ASL100-F4/8

8 gang smart panel can realize switch on-off, alarm function and control of dimming, scene, curtain and temepature

177

ASL100-KNX-IP

Gateway

896
