AKH-0.66/L Current Transformer for ASJ Series Residual Current Relay

General

Relying on the AC sampling technology, Digital Residual Current Transformer can monitor the residual current in power distribution circuits and thus prevent electrical fires. It also supports the standard MODBUS-RTU protocol and connects with various standard systems. Our Digital Residual CurrentTransformer complies with requirements of Electrical fire monitoring system----Part 2:Residual current electrical fire monitoring detectors, GB14287.2.

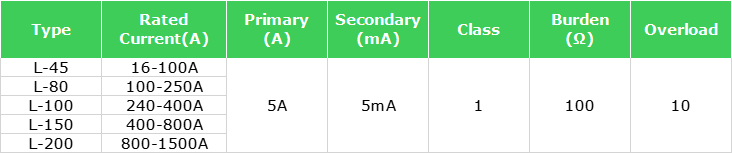

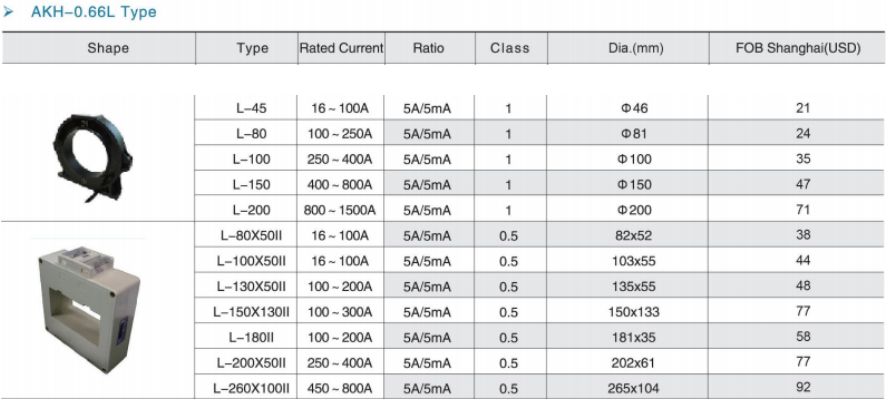

Specification

Paremeter

Package

MINIMUM PACKAGE

Package dimensions(1 PC)

170*150*130mm

Package Weight(1 PC)

0.5Kg

WHOLE BOX PACKAGE

Package dimensions(36 PCS)

450*240*250mm

Package Weight(36 PCS)

18.5kG

PRODUCT HS CODE

8504311000

ATTENTION !

The above packing and weight data are only refer to model AKH-0.66-L L45.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
