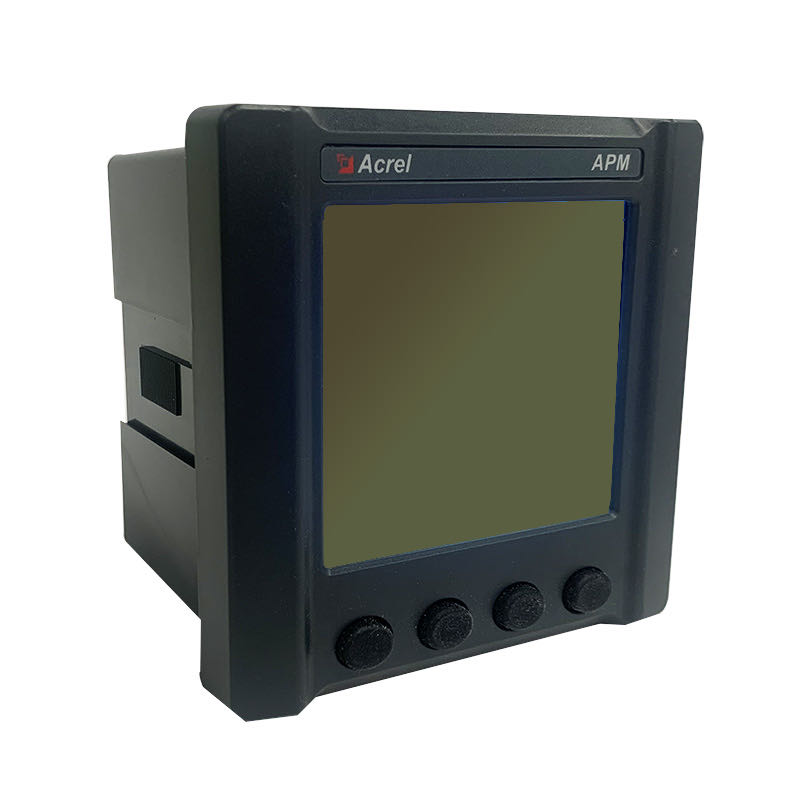

General
APM5 series network power meter (hereinafter referred to as the meter) is designed according to IEC international standards, with full power measurement, power statistics, power quality analysis (including harmonics, interharmonics, flicker), fault recording function (including voltage temporary rise and fall interrupt, inrush current and other records), event recording function and network communication and other functions. It is mainly used for comprehensive monitoring of power supply quality in the power grid.
Parameter
| Accuracy Voltage、current and power: Class 0.2 Active power: Class 0.5; Reactive power: Class 1
Pulse Output
Output mode: photocoupler pulse with open collector; Pulse constant: 10000imp/kWh (default)
Consumption Voltage、current: Power consumption: <0.5VA; Auxiliary power supply: Power consumption ≤15VA
Starting Current: 0.1%
|
Installation: Panel mounted
Frequency: Range: 45-65Hz
Relay: 3A/AC250V, 3A/DC30V
Dimension (L*W*H) Panel size (L×W): 96*96mm Cut-out size (L×W): 88*8mm
Auxiliary Power Supply AC/DC 85V～265V or AC/DC 115～415V
|
|
Display

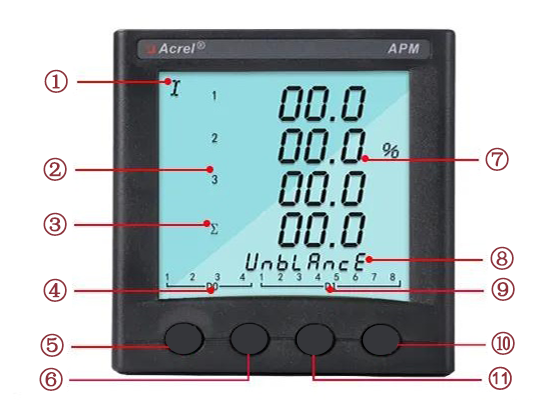

Front Panel
|
| ① Type of Parameters ② Load Value ③ Total Power ④ DO Status Indicator ⑤ Menu ⑥ Key Down ⑦ Data Display ⑧ Navbar ⑨ DI Status Indicator ⑩ Enter Button ⑪ Key up
| |

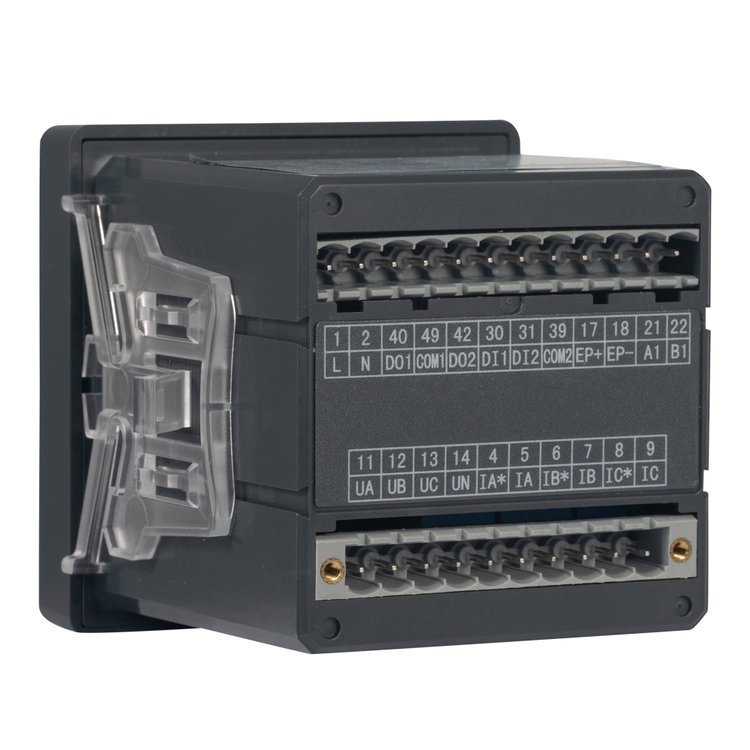

Wiring
Network
Installation

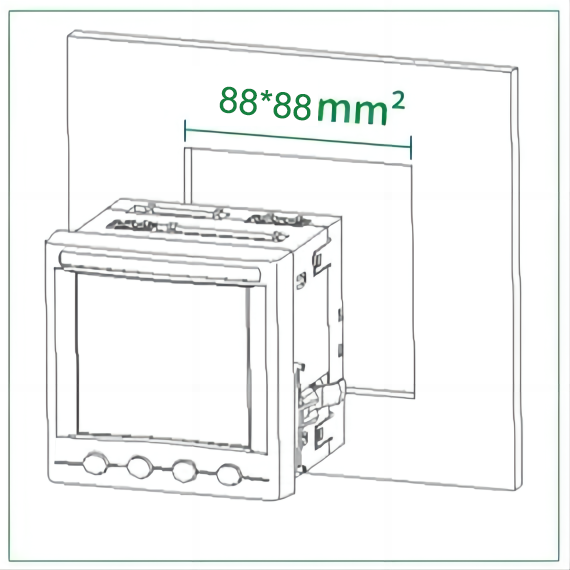

① Cut out a 88*88mm hole on the panel. (If not existed) |
② Unleash all the static, move off installation terminal, put in the panel. |
③ Fixed the meter on panel by using the incidental brackets with buckle. |
④ Installation complete. |
Application
Mining |
Petrochemical |
Building |
Hotel |
Municipal Project |
Transportation |
Hospital |
Electric Safety |
FAQ
Q: What’s the storage capacity, storage format and data storage interval of SD card?
A: The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)
Q: How should I select the expanded modules of APM5xx?
A: Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random
Q: The features of APM5xx?
A: Except for wave record and flicker record function, 0.2S measuring accuracy can also be a option. Also, users can measure the data through browser by using Ethernet auto WEB.
Q: As for the auxiliary power supply of APM5xx?
A: AC/DC 85~265V or 115~415V is both optional. Also, 380V line voltage can also serve as power supply.
Package
MINIMUM PACKAGE
|
|
|
|
|
MINIMUM PACKAGE
| Package Dimension(1 PC) 170*150*130mm
| Package Weight(1 PC) 0.78Kg
|
WHOLE BOX PACKAGE
| Package Dimension(36 PCS) 540*530*480mm
| Package Weight(36 PCS) 15.2kG
|
PRODUCT HS CODE
| 9028301400
|
ATTENTION ! The above packing and weight data are only refer to model APM520. For other models or optional functions, please contact the salesman for details, thank you for your cooperation! |
