APM510 Power Quality Monitoring Meter

APM510


● Full Power Measurement

● Power Quality Analysis

● Leakage Current Measurement (Optional)

● Support Modbus-RTU/TCP Protocol

● Accuracy: 0.5s



Description

General


APM5 series network power meter (hereinafter referred to as the meter) is designed according to IEC international standards, with full power measurement, power statistics, power quality analysis (including harmonics, interharmonics, flicker), fault recording function (including voltage temporary rise and fall interrupt, inrush current and other records), event recording function and network communication and other functions. It is mainly used for comprehensive monitoring of power supply quality in the power grid.




Parameter


Accuracy

Voltage、current and power: Class 0.2

Active power: Class 0.5; Reactive power: Class 1



Pulse Output

Output mode: photocoupler pulse with open collector;

Pulse constant: 10000imp/kWh (default)


Consumption

Voltage、current: Power consumption: <0.5VA;

Auxiliary power supply: Power consumption ≤15VA


Starting Current: 0.1%

Installation: Panel mounted


Frequency: Range: 45-65Hz


Relay: 3A/AC250V, 3A/DC30V


Dimension (L*W*H)

Panel size (L×W): 75*75mm

Cut-out size (L×W): 67*67mm


Auxiliary Power Supply

AC/DC 85V~265V or AC/DC 115~415V


Display



Front Panel



Type of Parameters

Load Value

Total Power

④ DO Status Indicator

⑤ Menu

⑥ Key Down

⑦ Data Display

⑧ Navbar

⑨ DI Status Indicator

⑩ Enter Button

⑪ Key up


Wiring





Network





Installation

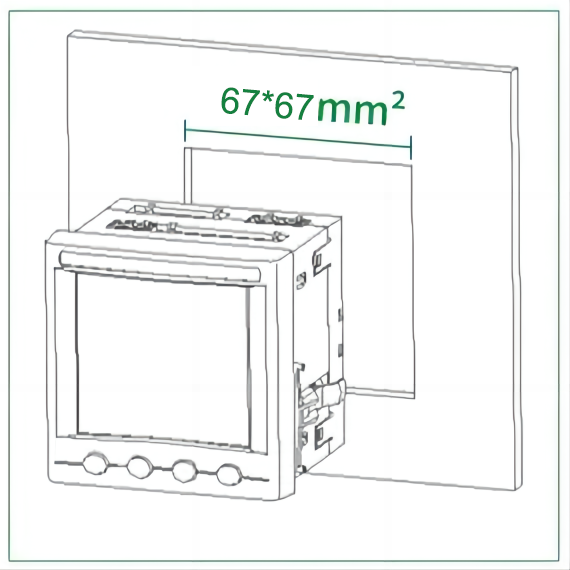

① Cut out a 67*67mm hole on the panel. (If not existed)


② Unleash all the static, move off installation  terminal, put in the panel.


③ Fixed the meter on panel by using the incidental brackets with buckle.


④ Installation complete.

Application


Mining

Petrochemical

Building

Hotel

Municipal Project

Transportation

Hospital

Electric Safety

FAQ


Q: What’s the storage capacity, storage format and data storage interval of SD card?

A: The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)


Q: How should I select the expanded modules of APM5xx?

A: Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random


Q: The features of APM5xx?

A: Except for wave record and flicker record function, 0.2S measuring accuracy can also be a option. Also, users can measure the data through browser by using Ethernet auto WEB.


Q: As for the auxiliary power supply of APM5xx?

A: AC/DC 85~265V or 115~415V is both optional. Also, 380V  line voltage can also serve as power supply.




Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package Dimension(1 PC)

170*150*130mm

Package Weight(1 PC)

0.67Kg


WHOLE BOX PACKAGE


Package Dimension(36 PCS)

540*530*480mm

Package Weight(36 PCS)

11.4kG


PRODUCT HS CODE


9028301400

ATTENTION !

The above packing and weight data are only refer to model APM510.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
