AKH-0.66/L Leakage Current Transformer

AKH-0.66/L45



● Model: AKH-0.66/L-45 Leakage CT
● Accuracy: Class 1
● Ratio: 5A/5mA
● Aperture: 46mm
● Rated current: 16~100A
● Suitable for electricity renovation project



Description

General


AKH-0.66L leakage current transformer is used for the collection of residual current, and can be used with electrical fire monitoring devices, motor protection devices and residual current relays.The secondary output of this product is 0~5(2)mA or 0~1V. There are round hole type and square hole type for users to choose according to their needs.

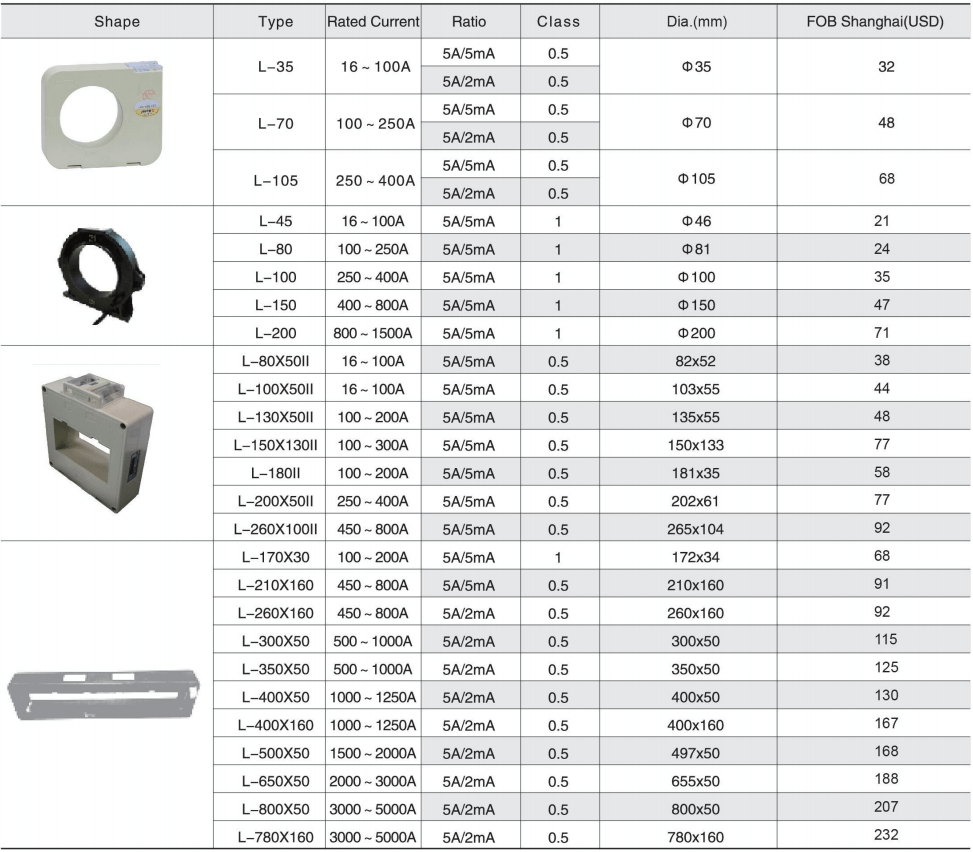

Technical Parameters



Dimension



Connection Mode






Package



MINIMUM PACKAGE







MINIMUM PAKAGE


Package dimensions(1 PC)

16*12.5*7.5cm

Pakage Weight(1 PC)

0.3Kg


WHOLE BOX PAKAGE


Package dimensions(20 PCS)

45.5*26*19.5cm

Pakage Weight(20 PCS)

7kG


PRODUCT HS CODE


 8504311000

ATTENTION !

The above packing and weight data are only refer to model AKH0.66-L45

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
