AHKC-E Closed Hall Effect Current Sensor

AHKC-E


Measurement

  • Input Current:0～(50-500)A
  • Output:±5V/±4V
  • Accuracy Class:1class
  • Power Voltage:DC±15V

Appearance:

  • Small package size
  • Low power consumption
  • Extended measuring range



Description

General

It is insulative between the primary and secondary grade of AHKC-E series current sensor which can be used for measuring direct current, alternating current and pulse current.The primary and secondary of the AHKC-E series current sensor are insulated and can be used to measure DC, AC and pulse currents.

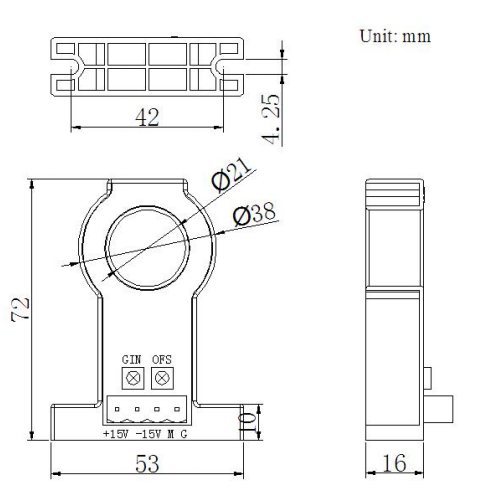

Dimension

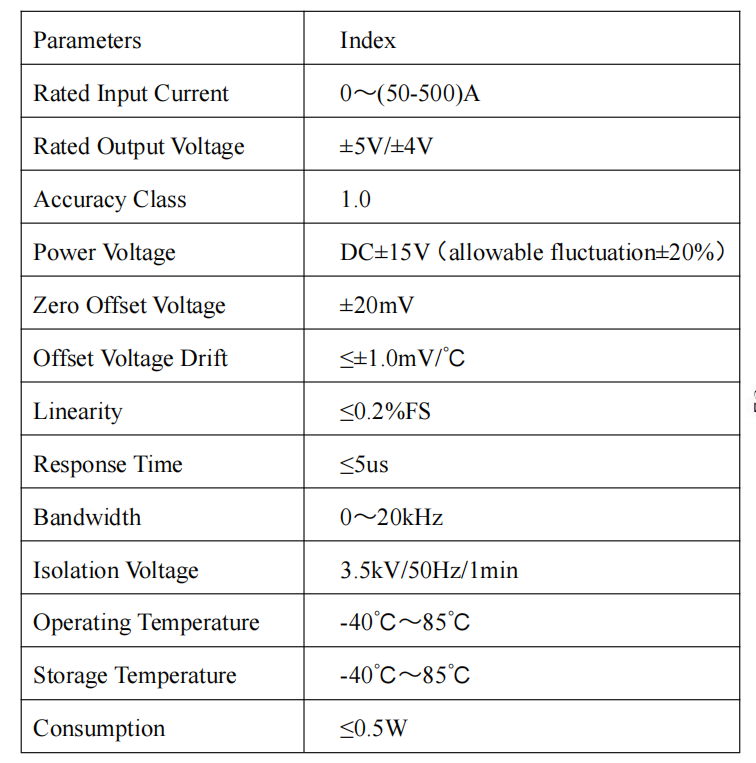

Parameter




Wiring

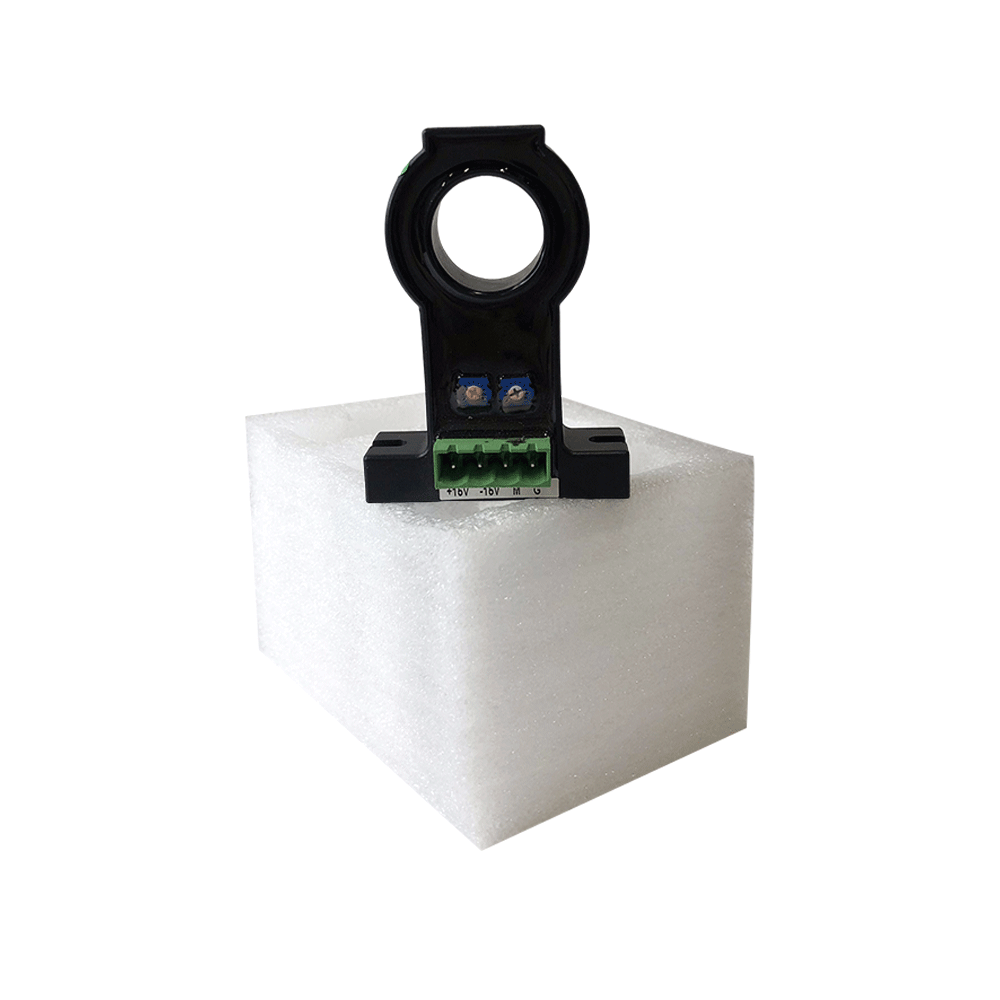

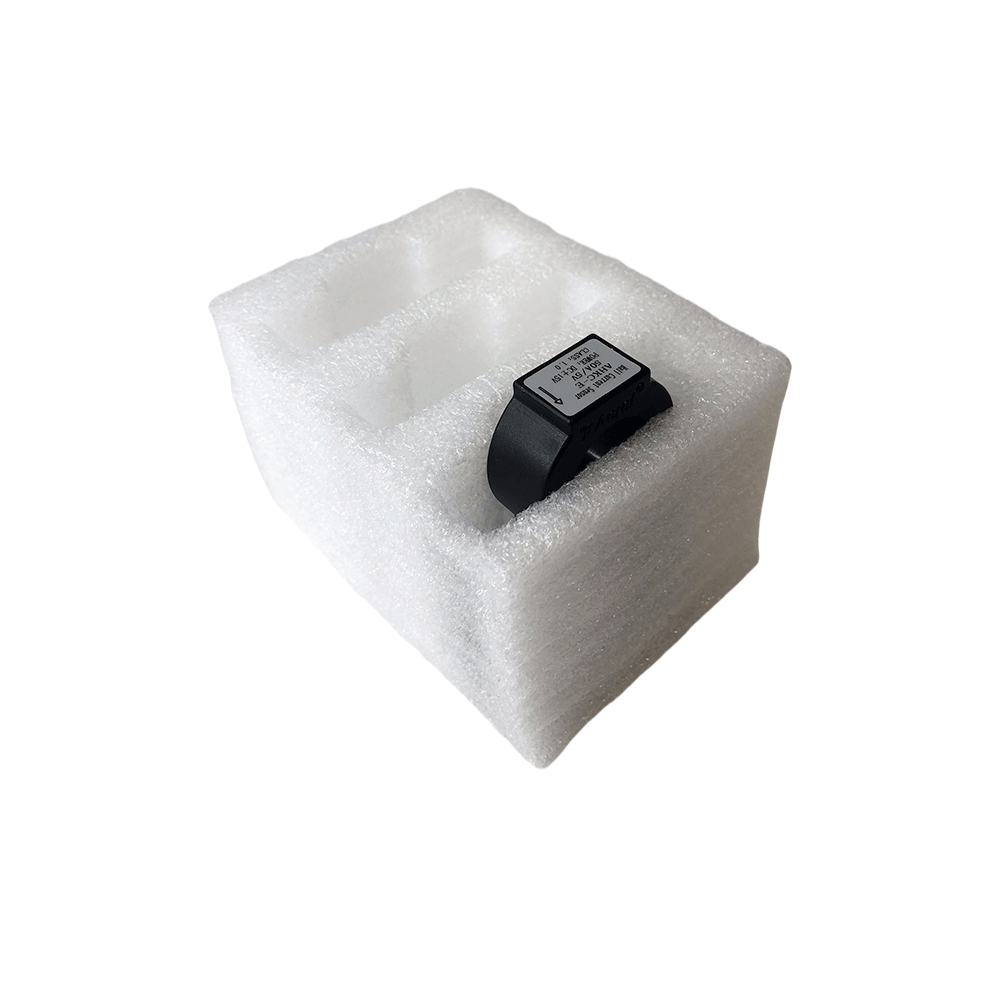

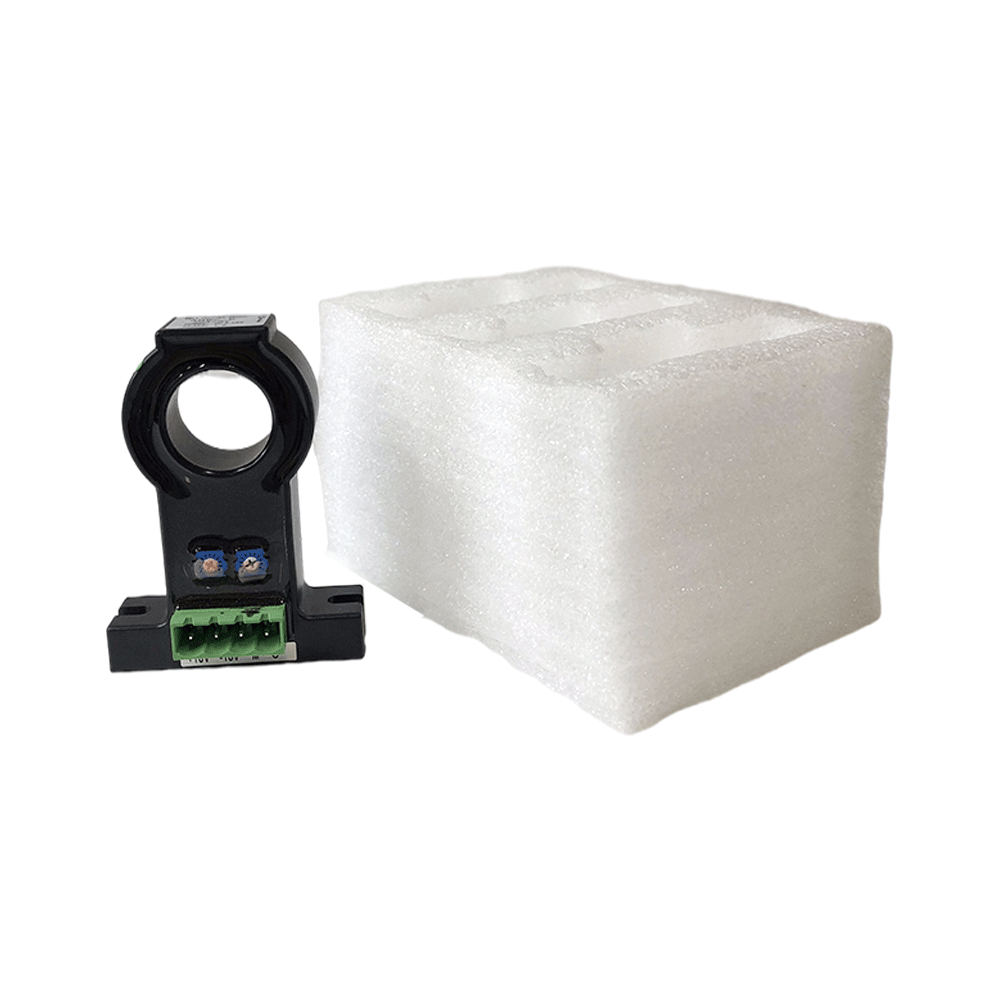

Package



MINIMUM PACKAGE







MINIMUM PACKAGE


Package dimensions(1 PC)

16*12.5*7.5cm

Package Weight(1 PC)

0.065Kg


WHOLE BOX PACKAGE


Package dimensions(70 PCS)

45.5*26*19.5cm

Package Weight(70 PCS)

5.55kG


PRODUCT HS CODE


 9030339000

ATTENTION !

The above packing and weight data are only refer to model AHKC-BSA

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
