ACLP10-24 Auxiliary power supply

ACLP10-24


●  Auxiliary power supply to AID series
●  AC 220V input, DC 24V output
●  Completely Isolated Linear Transformer
●  Power-on indicator



Description

General

ACLP10-24 Auxiliary power supply is designed to supply Acrel AID series devices with a supply voltage of DC 24V and a total power consumption of maximum 3VA. Module is rail mounted, installed on the same rail as insulation monitors.

Parameter

Input voltageAC220V
Frequency50/60HZ
Power3W
Output voltage
DC24V
Voltage regulation≤30%
Temperature rise≤20℃
Withstand voltage4000V AC/Min

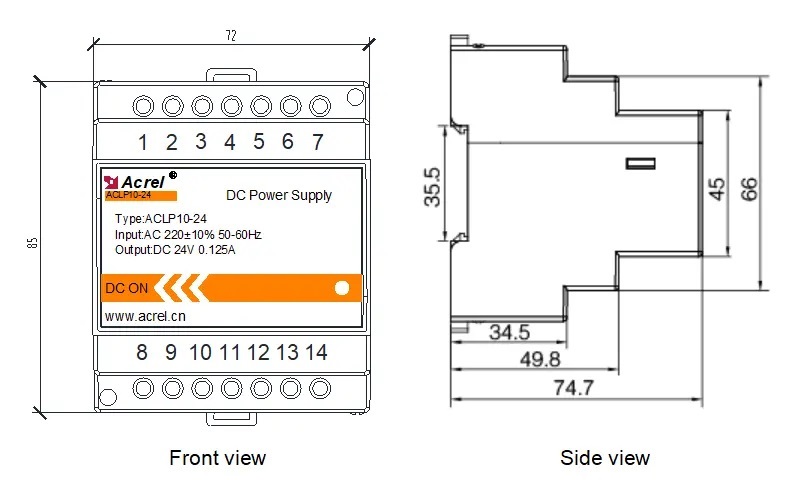

Dimension(Unit:mm)

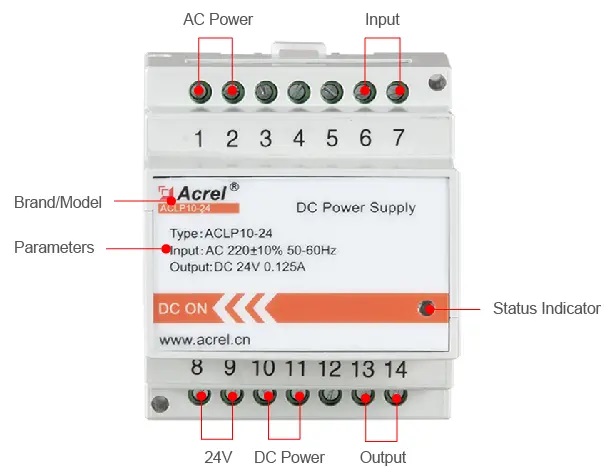

Wiring

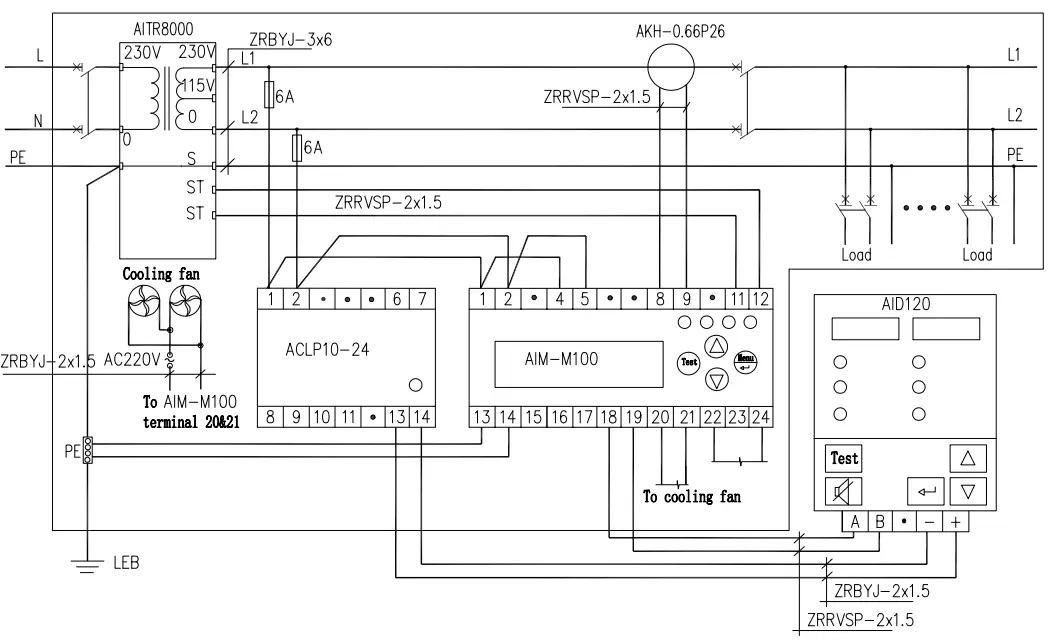

Typical Connection

Package

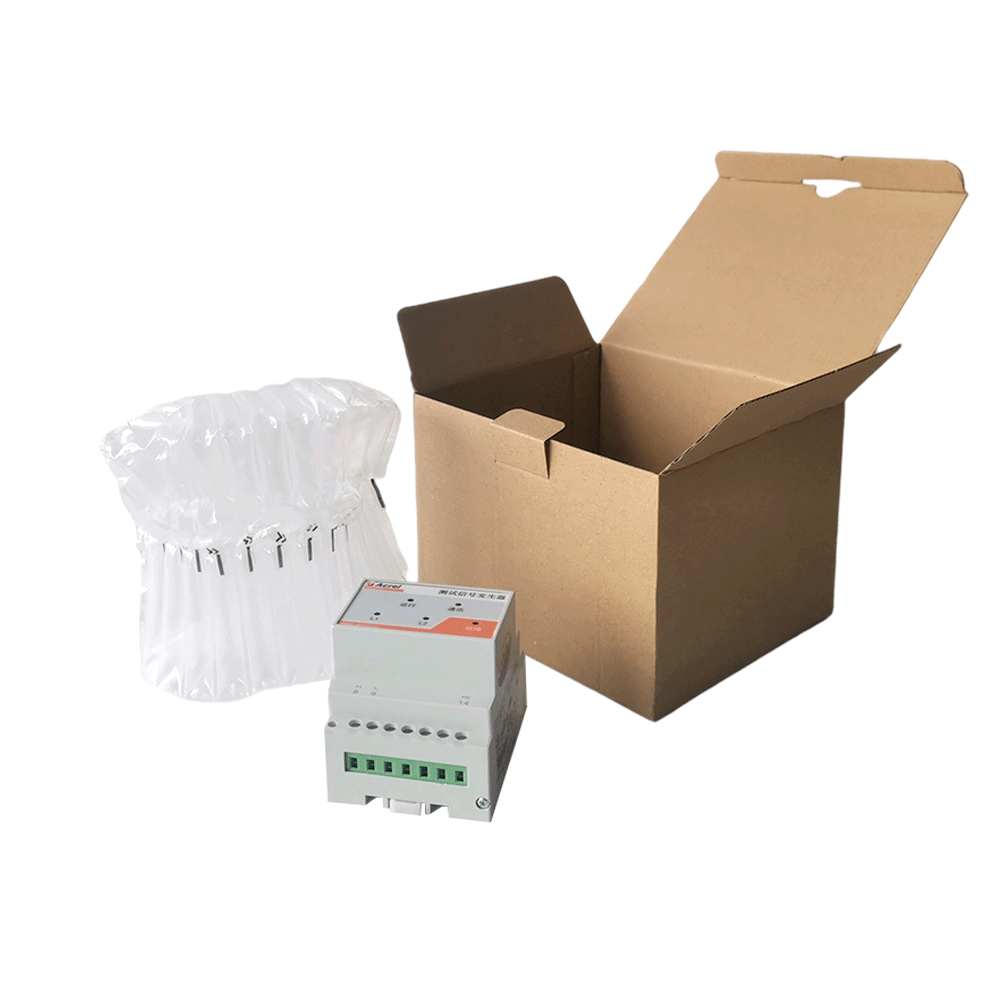

MINIMUM PACKAGE






MINIMUM PACKAGE


Package dimensions(1 PC)

170*150*130mm

Pakage Weight(1 PC)

0.358Kg

WHOLE BOX PACKAGE

Package dimensions(36PC)

535*525*475mmmm


Pakage Weight(36 PC)

12.88Kg



PRODUCT HS CODE


 8543709990

ATTENTION !

The above packing and weight data are only refer to model ACLP10-24.

For other models or optional functions, please contact the salesman for details, thank you for your cooperation!
